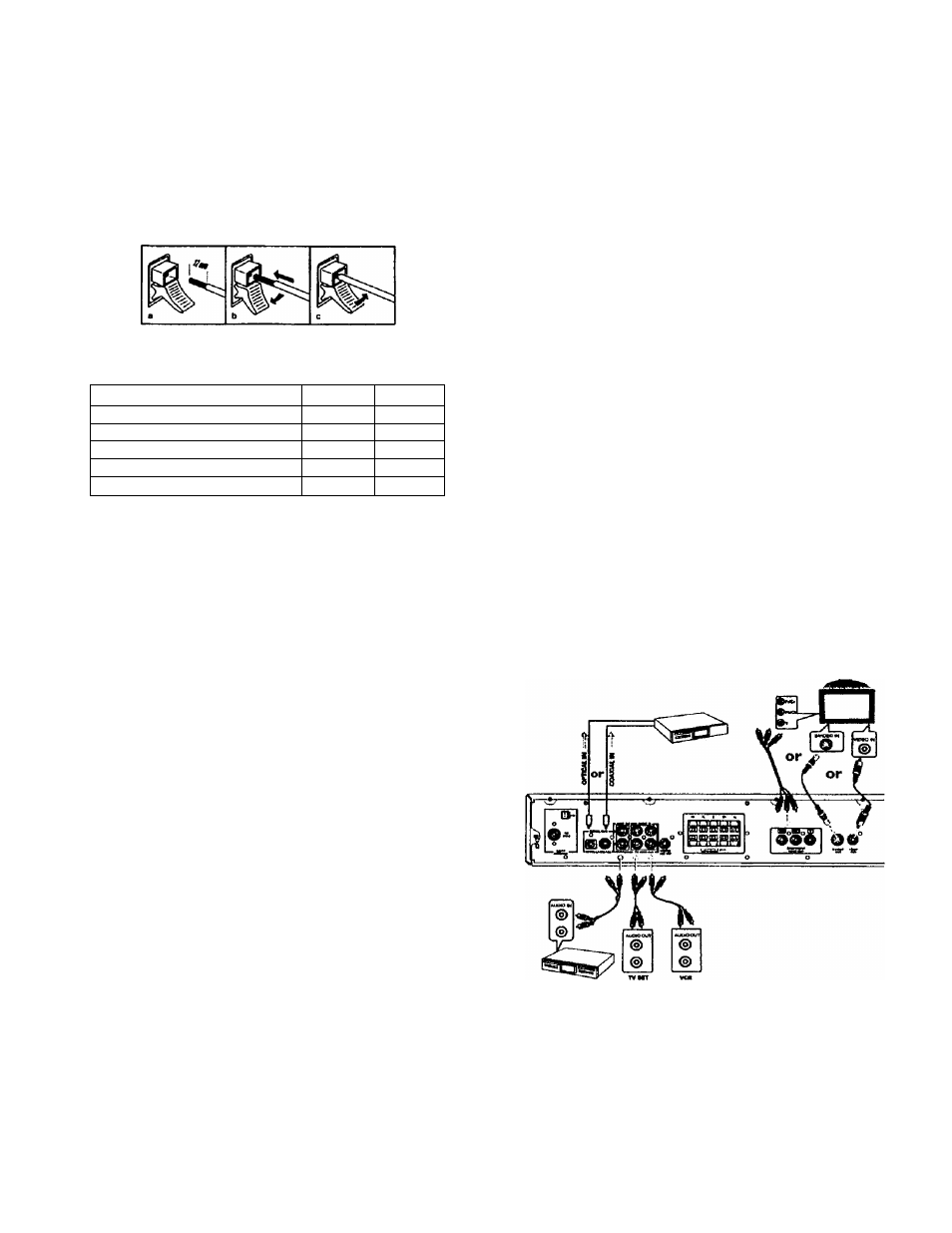

Connecting the speakers
Connect the supplied speaker systems using the supplied
speaker cables by matching the colors of the jacks and
speaker cables.
1 Press up (or down) the speaker's jack and fully insert the
stripped portion of the speaker cable into the jack, then
release.
Connect the subwoofer’s audio input to the WOOFER
LINE OUT jack and the speakers as follows :
Tipeakttrs
Front Left (FL) black white
Front Right (FR) Mack rod
Center (C) black green
Surround Left (SL) black blue
Surround Right (SR) black gray
Notes:
— Ensure that the speaker cables are correctly connected.
Improper connections may damage the system due to short-
circuit
— For opPmal sound performance, use the supplied speakers,
— Do not connect more than one speaker to any one pair of
+ /—• speaker jacks.
— Do not connect speakers with an impedance lower than
the speakers supplied. Please refer to the SPECIFICATIONS
section of this manual.
Connecting a TV and
additional components
You must connect a TV to the DVD system in order to use
the DVD player You can connect other audio and audio/
visual components to the DVD system in order to use the
Home Cinema Audio System's surround sound capabilities.
IMPORTANT!
— There are various ways to connect the system
to aTV (as shown in the illustration).You only
need to make one of the best connections,
depending on the capabilities of your TV system.
— Always refer to the instruction manual of the
connected equipment to make an optimal
connection.
— Some DVD discs have anti-copying devices, so
you will not able to record the disc through aVCR.
• Use the supplied audio cables to connect AUDIO IN jacks
to the corresponding AUDIO OUT jacks on the TV. VCR or
other audio/visual components.
• Use the supplied Pr/Cr Pb/CbY cables to connect
Pr/Cr Pb/CbY jacks to the corresponding video input
jacks on aTV.
If yourTV is not equipped with Pr/Cr Pb/CbY video input
jacks, you can select one of the following alternative
connections:
Option 1
Connect the
S-VIDEO OUT jack to the S-Video input
jack on the TV using a S-Video cable (not supplied).
Option 2
Connect the
VIDEO OUT jack to the video input jack on
the TV using a video cable (not supplied).
Use the AUDIO OUT jacks
- for connecting to an amplifier, audio system orTV with
analog audio inputs.
- for connecting to a CD or Tape recorder to make an analog
recording.
Use the OPTICAL or COAXIAL jacks
- for connecting to an amplifier with DTS, Dolby Digital
decoder or CD recorder
You will need to set the DVD system's digital output to
"ALL” (refer to "Preparations - System setup (DVD)").
Notes:
— MP3 audio is not available on the digital output
- Digital recording is only possible on a CD or VCD.
10 C onnections
