The fan guard helps protect the operator from injury caused by the rotating fan blades.
Never operate a SteamChef without the fan guard properly installed.
Operating a SteamChef without the fan guard properly installed can cause injury,
equipment damage, and reduce performance.

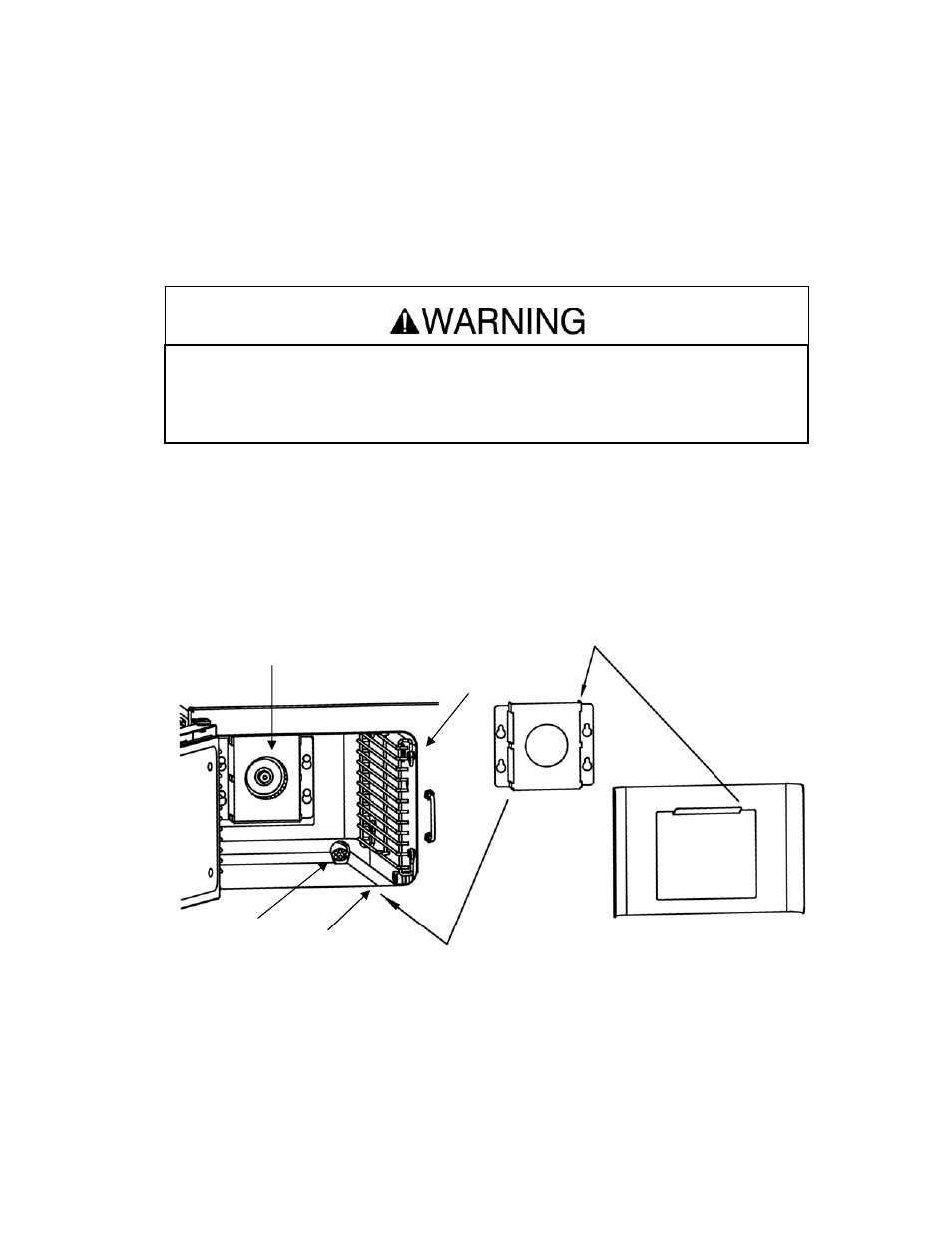

Figure 3-9
Cooking Compartment
J. Install the KleanShield™
Note: See Figure 3-9.
Never operate a SteamChef without a properly installed KleanShield
™.
1. Place the KleanShield
™ into the SteamChef so the drain trough slips into the KleanShield™ drain at
the rear of the cooking compartment.
2. Carefully lower the front of the KleanShield™ so the Water Level Sensor Guard is behind the probes
and the front legs rest on the bottom of the cooking compartment.
K. Install the Slide Racks (Pan Racks)
Note: See Figure 3-9.
1. Each slide rack has four loops: two at the top and two at the bottom. Hold the slide rack so the ends
of the hanger loops are towards the cooking compartment wall, as shown in Figure 3-9.
2. Slide one rack into the compartment with the hanger loops on the cooking compartment wall side.
3. Hook the loops over the top and bottom pins.
4. Repeat steps 1. through 3. for the other rack.
Door
Fan
Guard
KleanShield™ to
Drain Fit-up Water
Probes
Slide Pan
Rack
Fan
Air Diverter
