INSTALLATION
Continued

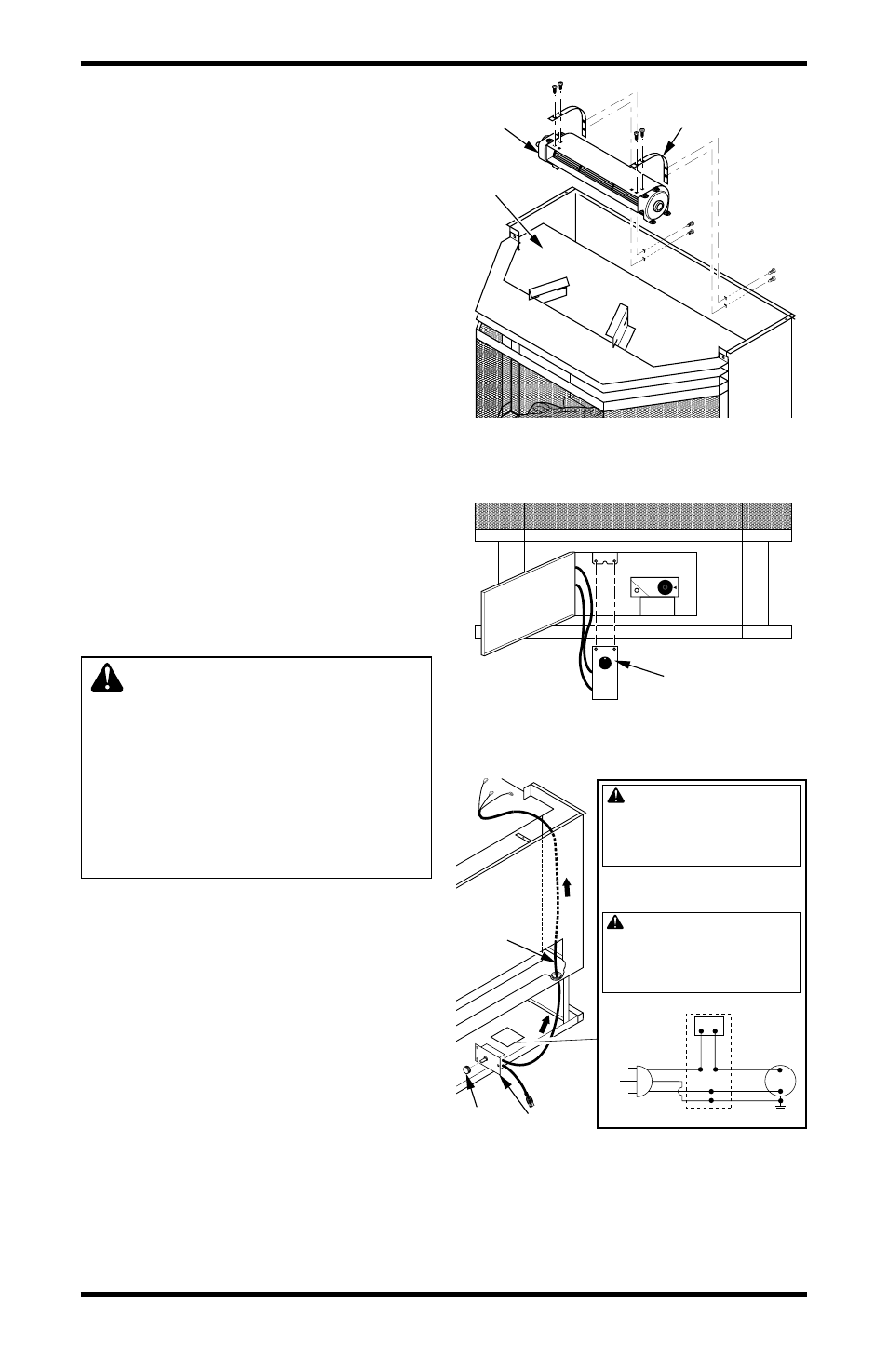

Figure 16 - Removing Blower Brackets
from Stove and Attaching to Blower
Blower
Blower Bracket
Firebox
Top
12. Using the four screws previously removed,
mount blower assembly to stove by reattach-
ing blower brackets to rear panel (see Fig-
ure 16). Tighten screws securely.
13. Install plastic control knob onto output shaft of
speed control housing (see Figure 17). Place
speed control housing just inside control com-
partment door in front of stove (see Figure 17).
14. Using two screws provided in blower kit,
mount blower speed control housing to mount-
ing tab in left side of lower control compart-
ment (see Figure 18).
15. Check to make sure that the power cord is
completely clear of blower wheel and there
are no foreign objects in blower wheel.
16. Carefully replace stove top panel. Align holes
and replace six screws removed in step 1,
page 12.
17. Peel off the backing paper and stick the sup-
plied wiring diagram decal on the stove floor
as shown in Figure 18.
18. Plug power cord into a convenient 3-prong
grounded wall receptacle near the stove.
WARNING: Electrical
Grounding Instructions: This ap-
pliance is equipped with a three-
prong (grounding) plug for your
protection against shock hazard
and should be plugged directly
into a properly grounded three-
prong receptacle.
19. Using speed control knob, turn blower on and
check for operation.
20. All remaining parts from blower kit may be
discarded.
Figure 17 - Installing Blower Control
Housing
Power
Cord
Speed
Control
Housing
Control
Knob
Figure 18 - Routing Power Cord
Blower Speed
Control Housing
Wiring Diagram Decal
120 Vac.
60 Hz. .
78 Amps
Variable
Fan Switch
White White
Black
Green
On
110/115
V.A.C.
Blower
Motor
Black Black Black
Off
WARNING: Never attempt to ser-
vice heater while it is plugged in, op-
erating, or hot. Burns and electrical
shock could result. Only a qualified
service person should service or re-
pair heater.
If any of the original wire as supplied with
the appliance must be replaced, it must be
replaced with 105°C wire or it’s equivalent.
WARNING: Label all wires prior
to disconnection when servicing
controls. Wiring errors can cause
improper and dangerous opera-
tion. Verify proper operation after
servicing.
