24

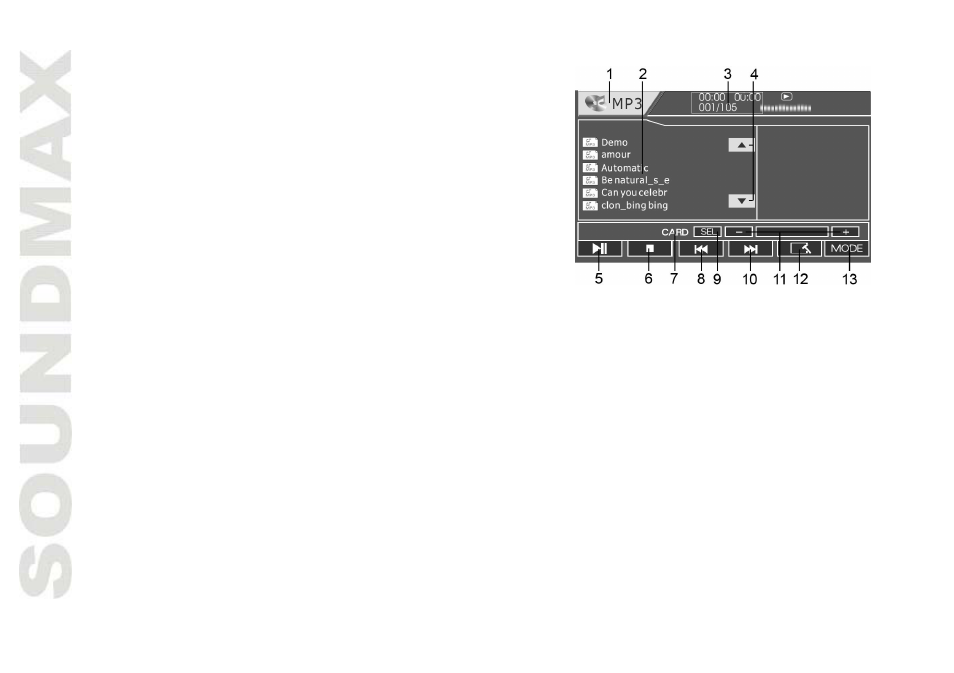

Touch screen operations with CD/MP3/USB/SD
While playing a file contained on a CD/MP3/USB/SD, the touch
screen has following areas and buttons enabling to perform
various playback operations:
1. Disc/File type indicator (not operable)
2. File list. Touch the needed file to start its playback
3. Track area – touch to call digit keyboard. Touch digit buttons
to input the number of a track to be played
4. List scroll buttons
5. PLAY/PAUSE button
6. STOP button
7. CARD/USB indicator (not operable)
8. PREVIOUS button
9. SEL button. Touch repeatedly to select a sound parameter to be adjusted
10. NEXT button
11. +/- buttons. Touch to decrease/increase volume
12. Touch to go to DVD setup menu
13. Mode selection
Insert/eject USB/Memory card
Connect a USB drive to the USB connector of this unit. It will automatically switch to USB mode and start to
read the contents of the USB. To eject the USB drive from this unit, switch to another mode and disconnect
the USB from the USB wire connector.
To connect a memory card to this unit, open the front panel and insert the memory card into the slot. Close
the front panel. The unit will automatically switch to SD mode and start to read the contents of the memory
card. To eject the memory card, switch the unit to another mode, then open the front panel and push the
card until it pops out.
Note: USB capacity supported: up to 4 Gb.
