15
ENGLISH
DVD (Home Theater)
Connect the [HDMI/DVI input] terminal at the back of the TV and the
[HDMI] terminal of the external device.
Connect the TV and the external device after all other connections are done.
1
2
Turn on the TV and press [INPUT], then select <HDMI>.
Place a DVD title into an external device connected via HDMI and
press play.
1
2
Watching HDMI

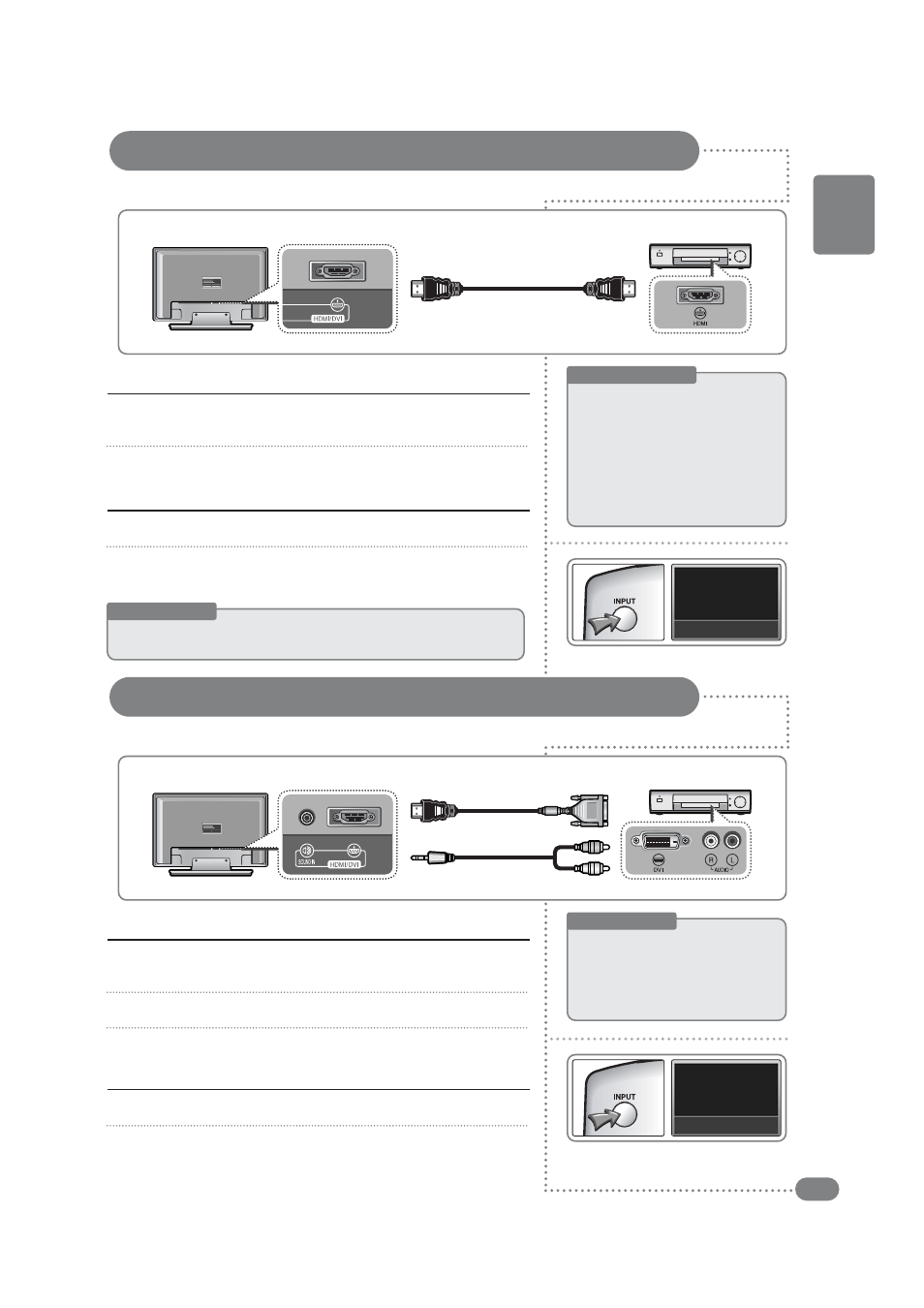

Connecting an HDMI Connection
Useful Tips
☛ You can watch by connecting AV devices such as a set-top-box, a DVD player, an
AV receiver, or DTV that supports the HDMI connection.
HDMI
Connecting via HDMI
Rear of the TV
What is HDMI ?
☛ HDMI ((HHiigghh--DDeeffiinniittiioonn M Muullttiim meeddiiaa IInntteerrffaaccee)) ::
A next generation interface that connects the
digital audio and video signals using only one
cable without compression. The sound signal
also carries multi-channel (55::11 CChhaannnneell) so that
iitt iisspprrooppeerrllyy ccaalllleedd aa m
muullttiim meeddiiaa iinntteerrffaaccee rraatthheerr
than a video terminal. The difference between
HDMI and DVI is that the size is smaller; HDCP
has an embedded cipher function and supports
multi channel audio.
HDMI Connector
DVD (Home Theater)
Connect the [HDMI/DVI Input] terminal and the [DVI] output terminal
of the external device.
Connect the [DVI Audio input] using the DVI audio cable (sold separately).
After this is completed, turn on the power of the TV and the external device.
1
2
3
Turn on the TV and press [INPUT], then select <HDMI>.
Operate the external device connected via DVI.
1
2
Watching via the DVI connector
Connecting a DVI Connection
HDMI
Connecting via DVI
Rear of the TV
Useful Tips
☛ When connecting equipment using a DVI
connection cable, use a DVI-HDMI gender
(ssoolldd sseeppaarraatteellyy) or on one side HDMI other
side DVI type of connection cable (H
HD DM MII//
D DV VII ccoonnnneeccttiinngg ccaabbllee -- nnoott iinncclluuddeedd iinn ppaacckkeett
-- ssoolldd sseeppaarraatteellyy)
HDMI/DVI Connector
DVI Sound Cable
