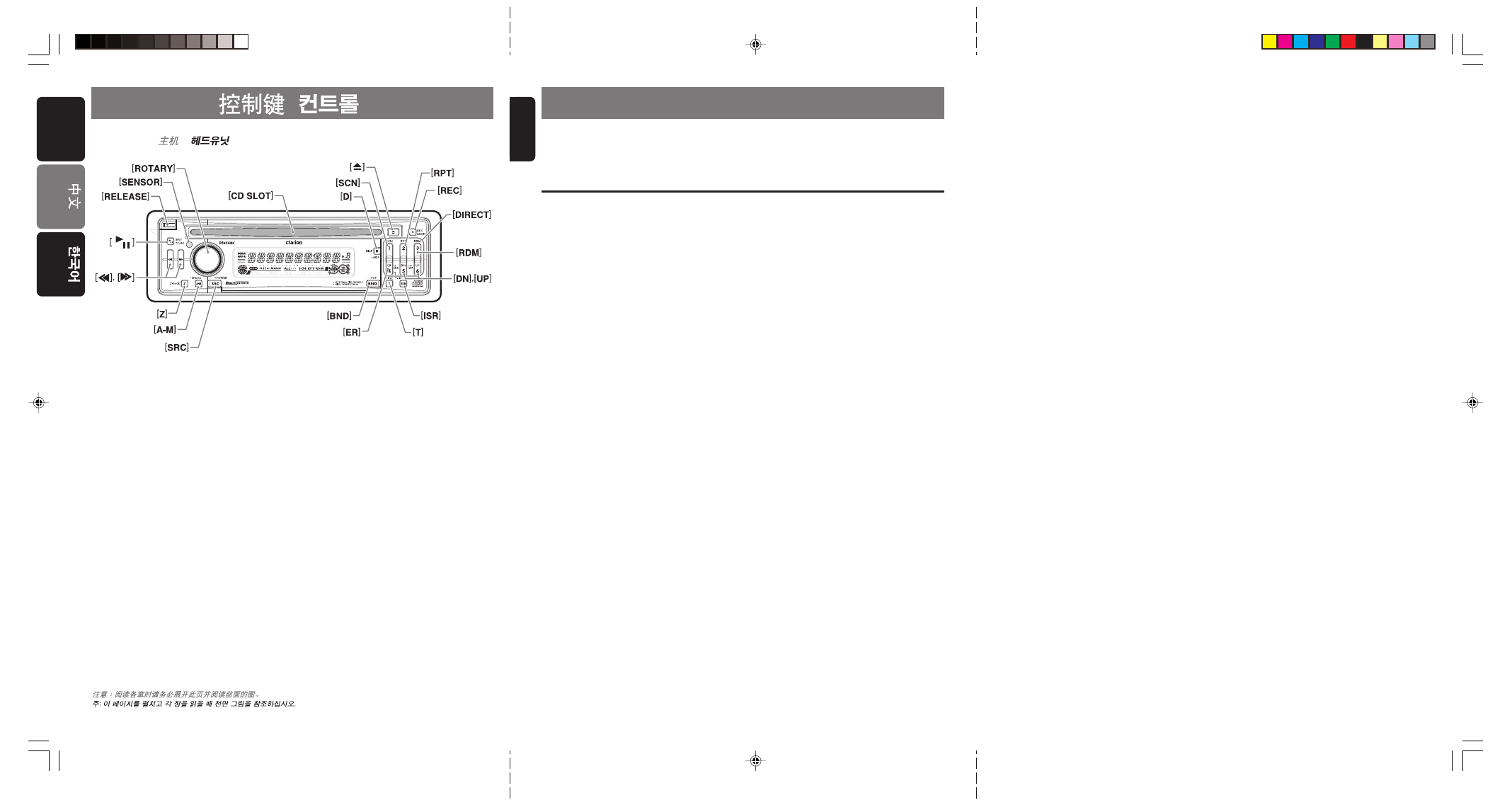

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.

English

3. NOMENCLATURE

Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3

(unfold).

• MC is the abbreviation of MUSIC CATCHER.

Names of the Buttons and their Functions

[RELEASE] button

• Deeply push in the button to unlock the DCP.

[SENSOR]

• Receiver for remote control unit
• Operating range: 30˚ in all directions

[ROTARY] knob

• Adjust the volume by turning the knob

clockwise or counterclockwise.

• Use the knob to perform various settings.

[CD SLOT]

• CD insertion slot.

[D] button

• Switch the display indication (Main display,

Title display, Clock display).

• Press and hold the button for 1 second or

longer to enter the display adjust mode.

[SCN] button

• Perform scan play for 10 seconds of each

track while in the CD/MP3, MC mode.

• Press and hold the button for 1 second or

longer to perform folder scan play while in the
MP3/WMA disc, MC mode.

[

] button

• Press to eject a CD loaded in the unit.

[RPT] button

• Repeat play while in the CD/MP3, MC mode.
• Press and hold the button for 1 second or

longer to perform folder repeat play while in
the MP3/WMA disc, MC mode.

[REC] button

• Press the button during CD playback, and the

track currently being played back is recorded
onto MC. (TRACK REC)

• Press and hold the button for 2 seconds or

longer during CD playback, and all tracks are
recorded onto MC. (DISC REC)

[DIRECT] buttons

• Store a station into memory or recall it directly

while in the radio mode.

[RDM] button

• Perform random play while in the CD/MP3,

MC mode.

• Press and hold the button for 1 second or

longer to perform folder random play while in
the MP3/WMA disc, MC mode.

[UP], [DN] buttons

• Select the Folder. (MP3/WMA disc MC mode only)

[ISR] button

• Recall ISR radio station in memory.
• Press and hold for 2 seconds or longer: Store

current station into ISR memory (radio mode
only).

[T] button

• Use the button to input a title in the Radio, CD

or MC mode.

• Use the button to switch the user titles or

track titles.

• Use the button to scroll the title during the

CD-text play.

[ER] button

• Press and hold for 1 second or longer to turn on

or off the play list mode. (MP3/WMA disc only)

• This functions as the [ER] button in the MC

mode. Each time you press the button, the
function switches in the following order: TRK
ERASE

➜

FLD ERASE

➜

Normal mode.

• Press and hold the button for 2 seconds or longer,

and the unit enters the ALL ERASE mode.

[BND] button

• Switch the band, or seek tuning or manual

tuning while in the radio mode.

• Play a first track while in the CD/MP3, MC mode.
• Press the button to change the character.

[SRC] button

• Press the button to turn on the power.

Press and hold the button for 1second or
longer to turn off the power.

• Switches the operation mode among the

Radio mode, etc.

[A-M] button

• Use the button to switch to the audio mode

(bass/treble, balance/fader)

• Press and hold for 1 second or longer to turn

on or off the MAGNA BASS EXTENED.

[Z] button

• Use the button to select one of the three

types of sound characteristics already stored
in memory. (Z-Enhancer)
