Routine Service and Maintenance
f. With the tracks still off the ground, start the engine and rotate just the track being adjusted
three or four times in both forward and reverse. Shut off the engine after rotating the track.
g. Remeasure the deflection dimension.
h. Repeat the measurement and adjustment procedure on the other track assembly.
i. Lower the machine onto the ground.

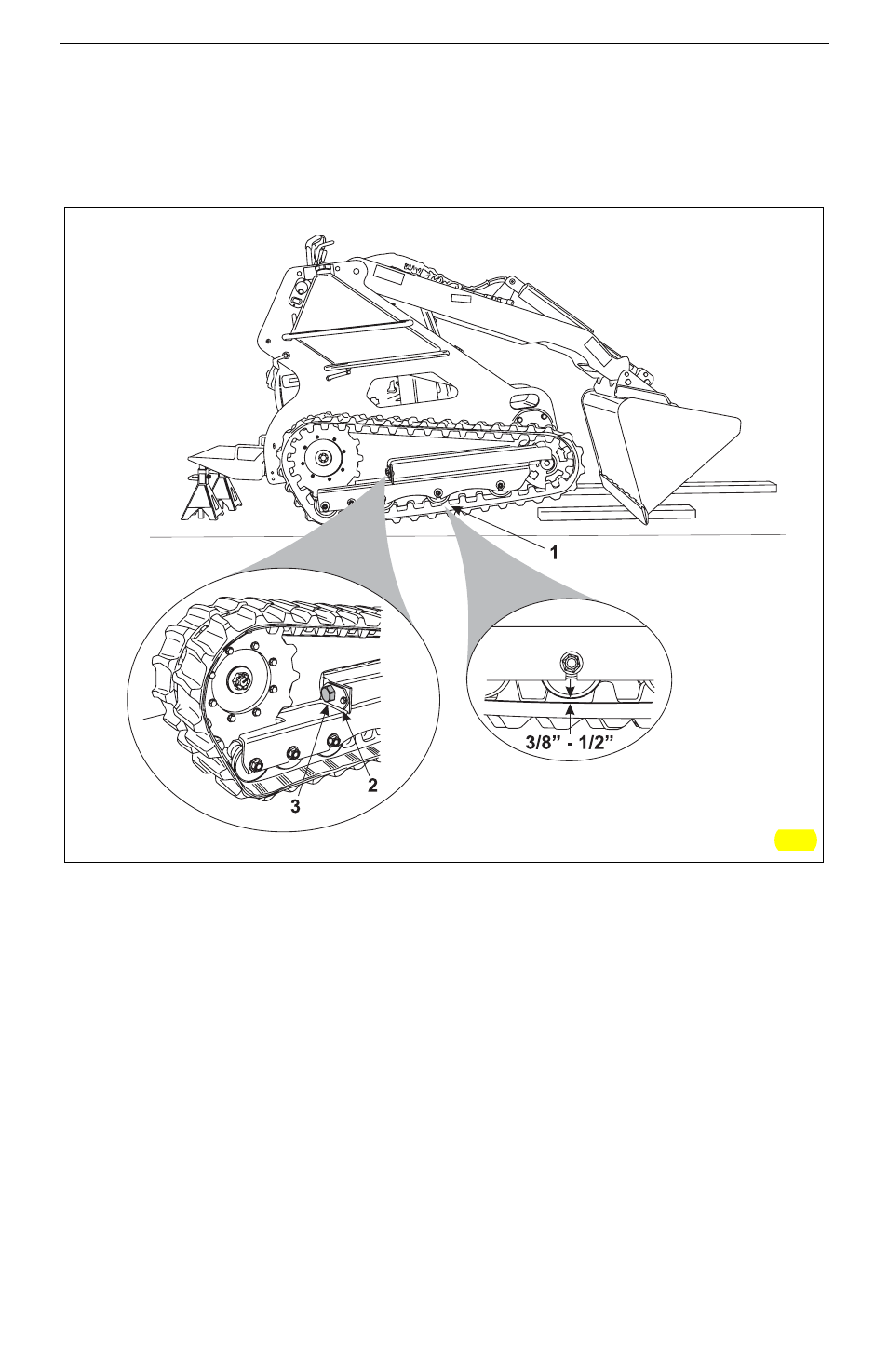

Figure 4–23 Track Tension Adjustment
