PREPARATION
POSITIONING PROJECTOR
● This projector is designed to project on a flat
projection surface.
● Projector can be focused from 4.1’ (1.2m) ~ 32.8’
(10.0m).

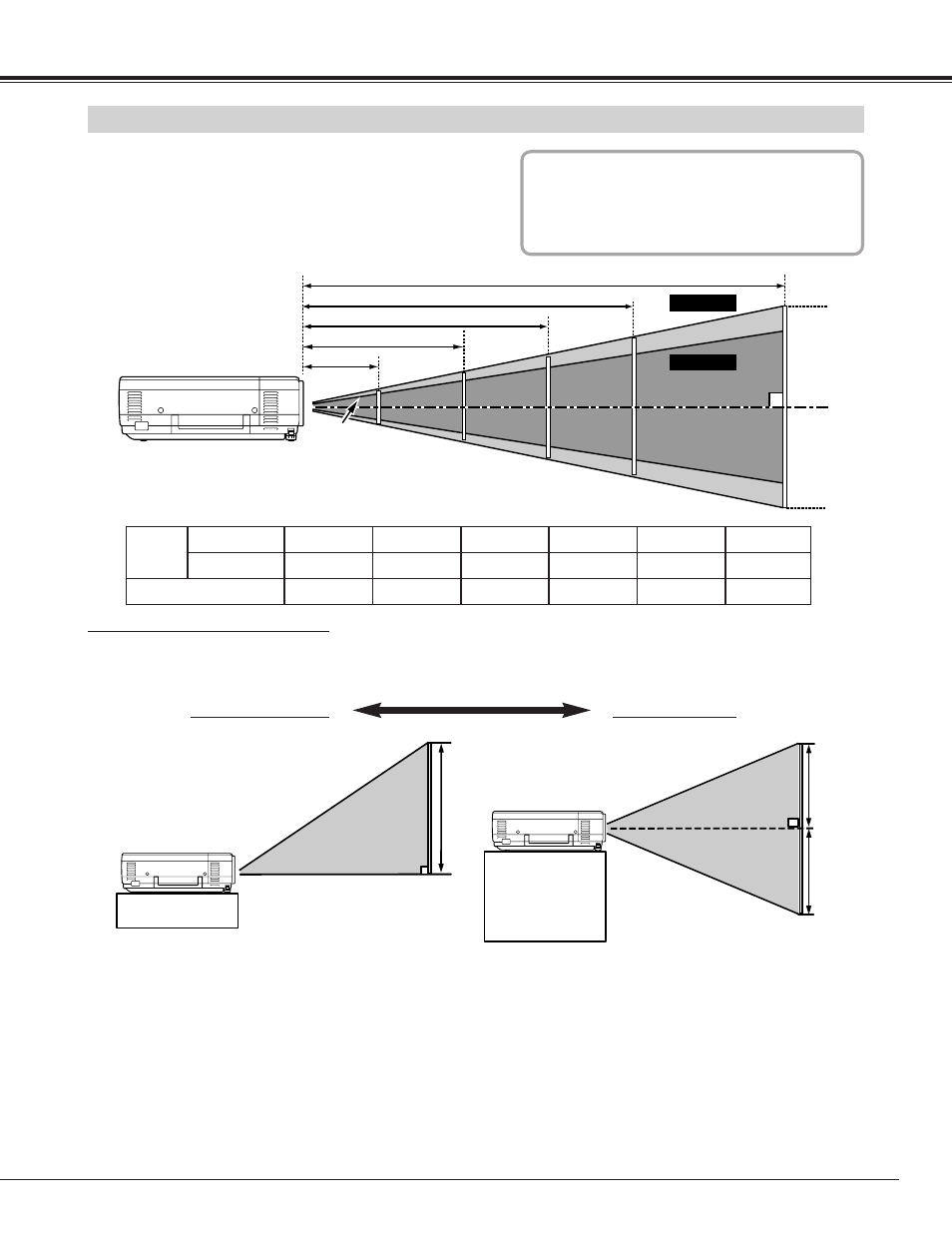

● Refer to figure below to adjust screen size.
Screen
Size
Distance
39”
30”
4.1’ (1.2m)
39”
4.1’(1.2m)
10.8’(3.3m)
16.4’(5.0m)
22.0’(6.7m)
Max. Zoom
Min. Zoom
32.8’(10.0m)
100”
150”
200”
300”
231”
154”
115”
77”
30”
ROOM LIGHT
Brightness in room has a great influence on
picture quality. It is recommended to limit
ambient lighting in order to provide best
image.
Min. Zoom
Max. Zoom 100”
77”
10.8’ (3.3m)
150”
115”
16.4’ (5.0m)
200”
154”
22.0’ (6.7m)
250”
192”
27.6’ (8.4m)
300”
231”
32.8’ (10.0m)
10 : 0
1
1
LENS SHIFT ADJUSTMENT
Projection lens can be moved up and down with motor-driven lens shift function. This function makes it easy to
provide projected image where you want. U/D ratio can be adjusted 10 : 0 ~ 1 : 1 (refer to figure below.). Refer
to P 20 for operation.
Highest (10 : 0) Lowest (1 : 1)
