15
BEFORE OPERATION
To insure safe operation, please observe following precautions :
● Use (2) AA, UM3 or R06 type alkaline batteries.
● Replace two batteries at same time.
● Do not use a new battery with an used battery.
● Avoid contact with water or liquid.
● Do not expose Remote Control Unit to moisture, or heat.
● Do not drop Remote Control Unit.
● If a battery has leaked on Remote Control Unit, carefully wipe case clean and install new batteries.
● Danger of explosion if battery is incorrectly replaced.
● Dispose of used batteries according to batteries manufacturers instructions and local rules.
Press lid down-
ward and slide it.
Remove battery
compartment lid. Slide batteries into
compartment. Replace compartment lid.
Two AA size batteries
For correct polarity (+ and
–), be sure battery
terminals are in contact
with pins in compartment.

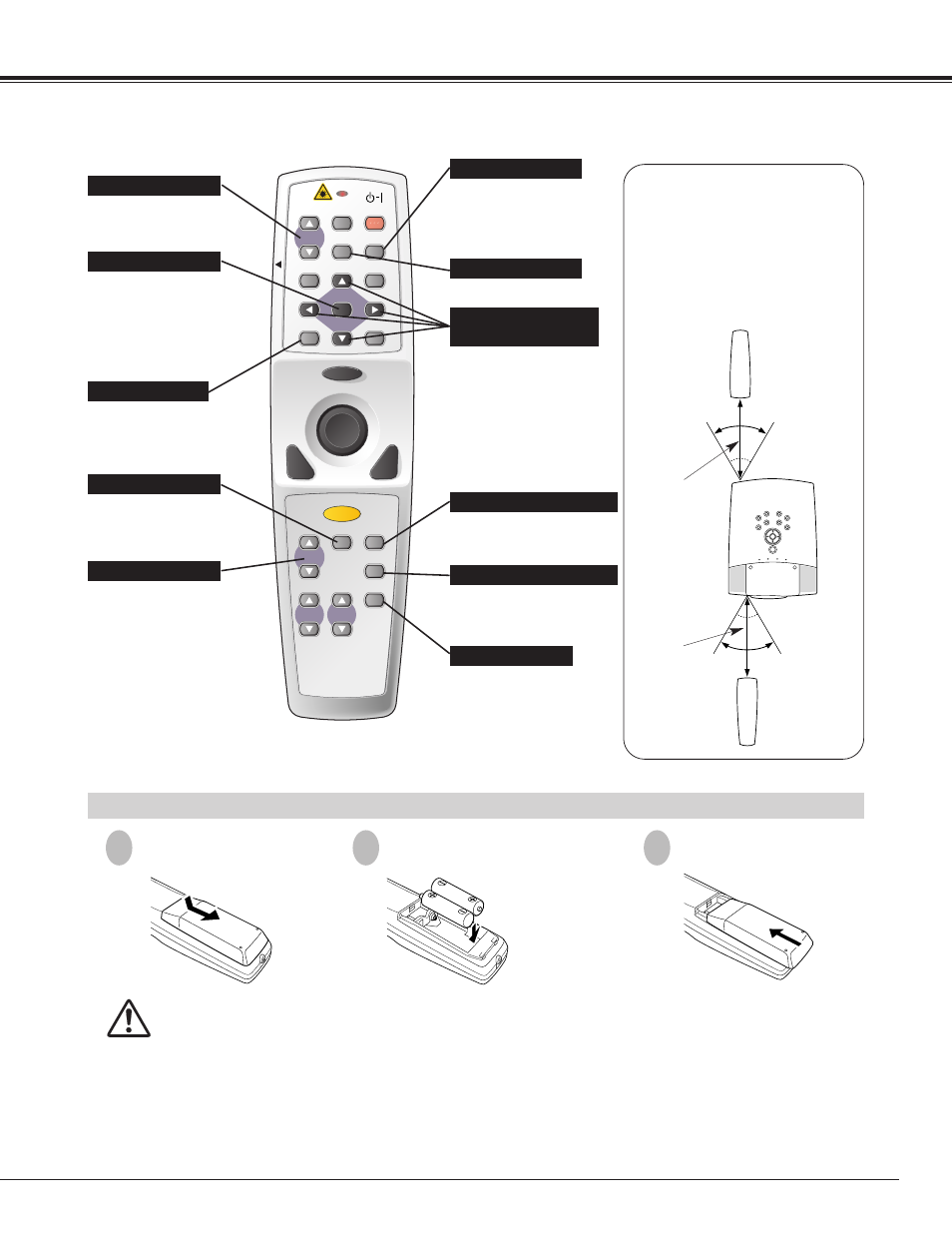

Remote Control Batteries Installation
1 2 3
Operating Range
Point Remote Control Unit toward
projector (Receiver Window)
whenever pressing any button.
Maximum operating range for
Remote Control Unit is about 16.4’
(5m) and 60° in front and rear of a
projector.
16.4’
(5 m)
60°
16.4’
(5 m)
Used to operate P-
TIMER function. (P21)
LOCK
FREEZE
SELECT
D.ZOOM
MUTE
VOLUME-
MENU
NO SHOW
VOLUME+
KEYSTONE
LASER
P-TIMER
ZOOM
COMPUTER 1 COMPUTER 1
COMPUTER 2 COMPUTER 2
VIDEO
FOCUS LENS
AUTO PC ON-OFF
P-TIMER BUTTON
Used to adjust zoom. (P20)
ZOOM BUTTON
NO SHOW BUTTON
Used to turn picture into
black image. (P21) D.ZOOM BUTTON
Used to select DIGITAL
ZOOM +/– mode and
resize image. (P30)
FREEZE BUTTON
Used to freeze picture. (P21)
60°
MENU BUTTON
Used to select MENU
operation. (P17, 18)
COMPUTER 1 BUTTON
Used to select input
source (COMPUTER 1).
(P22)
SELECT BUTTON
Used to execute item
selected, or to expand or
compress image in
DIGITAL ZOOM +/- mode.
(P30)
POINT (VOLUME +/-)
BUTTONS
Used to select an item or
adjust value in ON-SCREEN
MENU. They are also used
to pan image in DIGITAL
ZOOM +/- mode. (P30)
POINT LEFT/RIGHT buttons
are also used as VOLUME
+/- buttons. (P21)
COMPUTER 2 BUTTON
Used to select input
source (COMPUTER 2).
(P22, 31)
VIDEO BUTTON
Used to select input
source (VIDEO). (P31)
