To pass 2 SAFETY CORDS
through 4 HOLES for safety!
WARNING
HOLE
SAFETY
CORD
106
25
6
To pass 2 SAFETY CORDS through 4 HOLES for safety!
WARNING
HOLE
SAFETY CORD

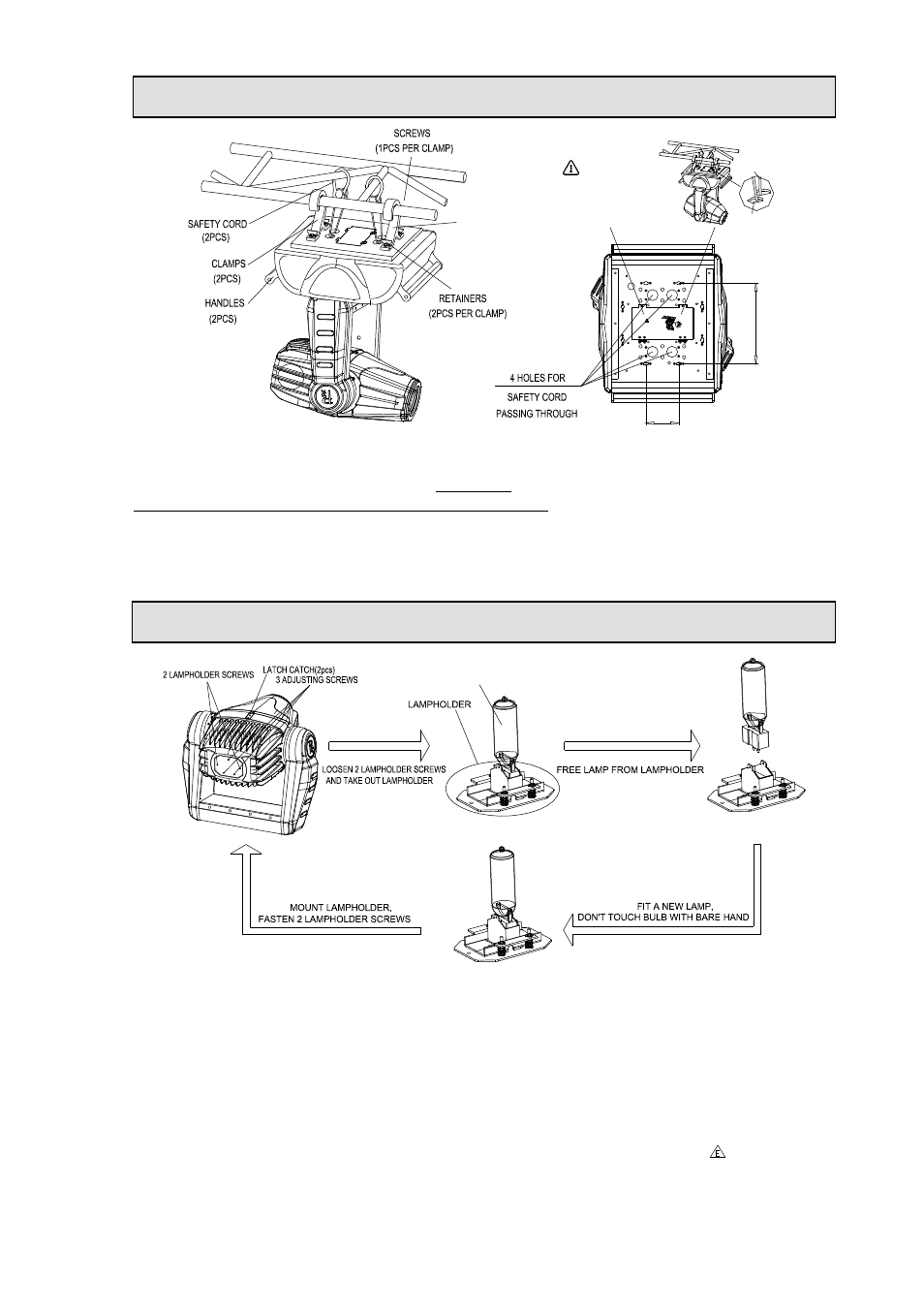

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of
fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the
screws attached to each clamp. (Watch the WARNING on the underside of the base as shown above)
To pass 2 SAFETY CORDS through 4 HOLES for safety! Always ensure that the projector is firmly
anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you
are going to mount the projector is secure and is strong enough to support a weight of SOLO 575.
WARNING: 1. Unlock the PAN and TILT before the 1
st application of projector for safety.
2. The projector MUST be lifted or carried by the HANDLES instead of clamps.
LAMP
Lock tilt before fitting/replacing the lamp.
(Do the way as shown in the above figure)
Loosen 2 lampholder screws as shown in the above figure and take out the lampholder.
Free worn-out lamp from lampholder.
Fit a new lamp and insert it with lampholder into the fixture, then fasten 2 lampholder screws.
After the fitting is done, turn the projector on and 5 minutes later adjust 3 adjusting screws to focus for
the best light output.
Notes: don’t touch the bulb of the new lamp with bare hand so as not to influence the beam
output.
WARNING: The MSR series are high-pressure lamps with external igniters (
). Care should
always be taken when handling these lamps. Always read the manufacturers "Instructions for
use" enclosed with the lamp.
Solo 575 Manual_en.doc 5/24
FITTING THE LAMP
INSTALLING THE PROJECTOR
