Power supply:
230V AC 50Hz
Power consumption: 2800W
Lamp: HMI 2500W, double ends (Rated working life: 500 hours)
Colour temperature: 6000°K
Control operation: Stand-Alone
Beam effect: 32 rotative beams (Beam colours can be ordered)
Beam coverage: 35
Head movement: Pan 110°, Tilt manually adjustable through 40°
Dimensions: 740mm LONG x 540mm WIDE x 780mm HIGH
Net weight: 61 kg
Remove the projector-head cover by undoing the 10 M4 screws.
Insert the lamp in the lamp-holder, and ensure the little bubble on the lamp is at a right angle (90°)
to the beam path. Keep the lamp clean during installation.
Tighten the 2 M4 lamp fixing screws only manually.
Reinstall the projector-head cover and retighten the 10 M4 screws.
NOTE: The HMI series are high pressure lamps with external igniters (
). Care should always be
taken when handling these lamps. Always read the manufacturers "Instructions for use" enclosed
with the lamp.

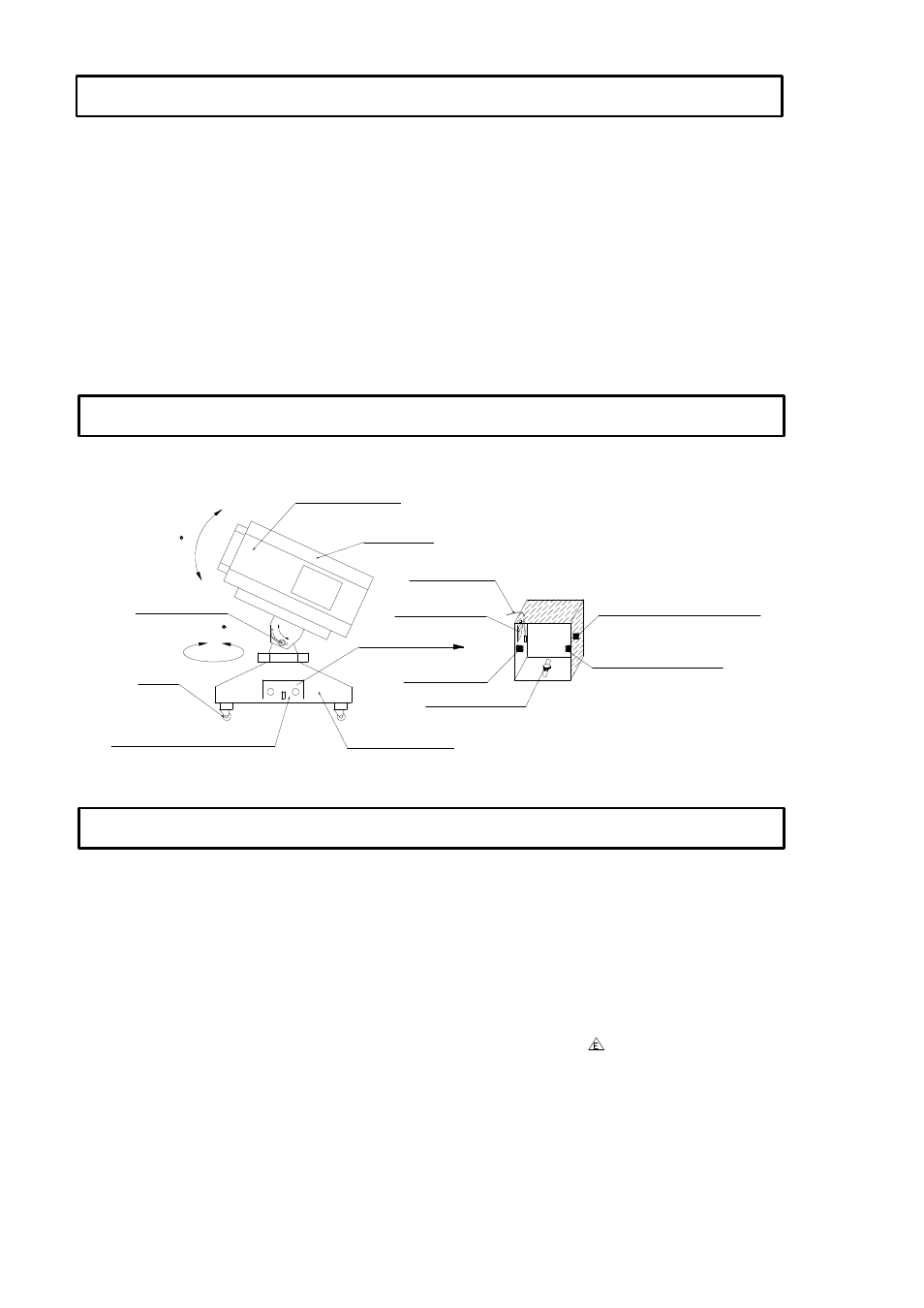

CONSTRUCTION
FITTING THE LAMP
TECHNICAL DATA
40
110
F 2A/250V(5X20)
TILT
LOCKING KNOB
TOP COVER
PROJECTOR-HEAD
PAN MOVEMENT
WHEEL
PROJECTOR BASE
COVER REMOVED
COVER OF CONTROL PANEL
GROUND CORD
FUSE HOLDER
KNURLING KNOB
PAN SPEED CONTROL
REFLECTOR-BOWL
ROTATIVE SPEED CONTROL MOTOR SWITCH
