Each Design 250 must be given a DMX start address so that the correct projector responds
to the correct control signals. This DMX start address is the channel number from which the
projector starts to “listen” to the digital control information being sent out from the controller.
The Design 250 has 7 channels, so set the No.1 projector’s address 001, No.2 projector’s
address 008, No.3 projector’s address 015, No.4 projector’s address 022, and so on.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
Press button ENTER, it will display address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm; In the same time. The GREEN LED will flash one time. It means the
setting has been enabled.
Press button FUNC, it will return to the upper menu one by one.

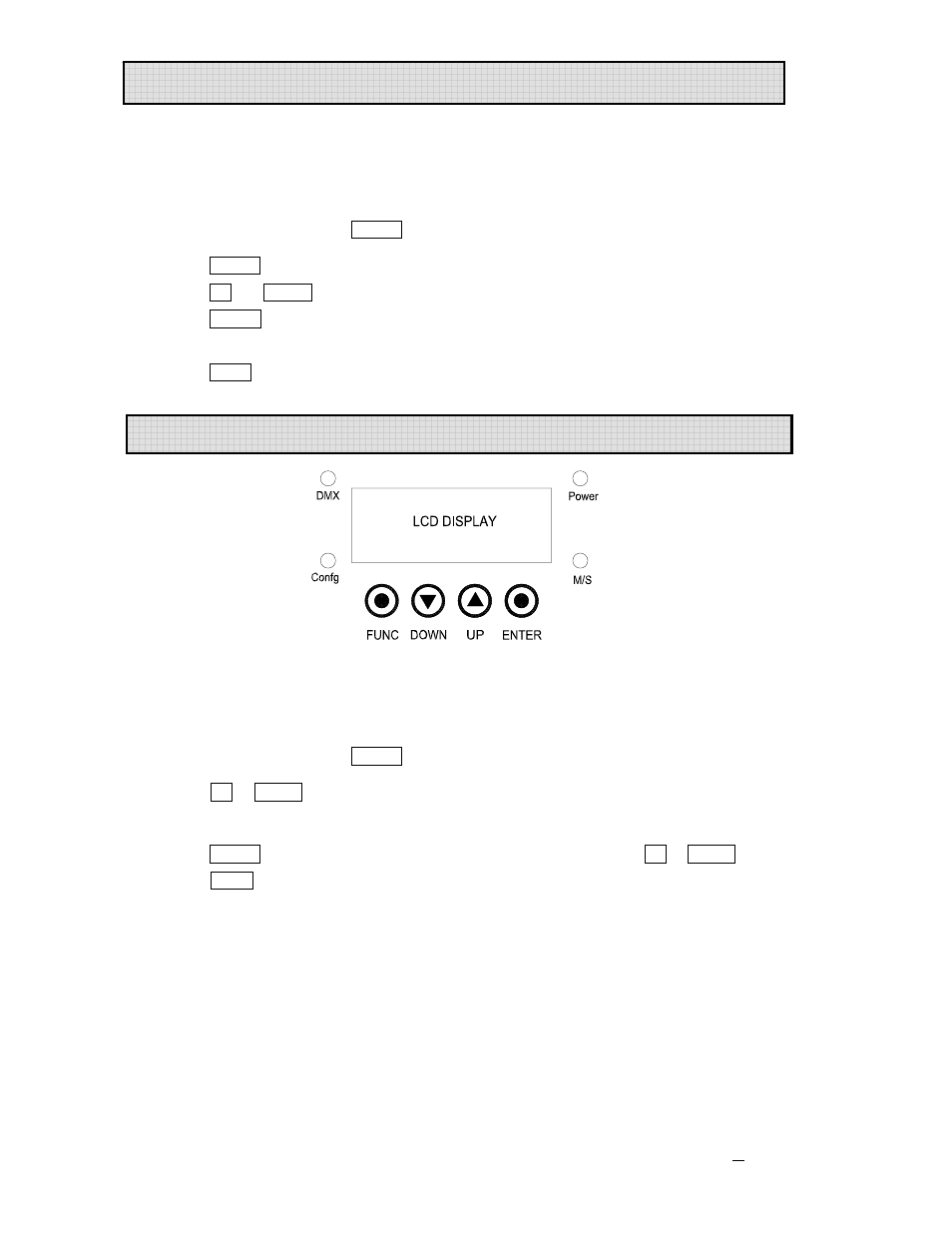

Projector configuration can be set conveniently via press button switch and LCD display. After the
projector is switched on, the projector will reset automatically and then the display will show
the DMX start address (if you have already set the DMX start address and saved it, the
screen will display the last setting).
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
Press button UP or DOWN if you want to browse through the various Setup Options. There are 11
option codes from DMX Address to Lamp Manual Control, and each code has a specific
function.
Press button ENTER to save your settings or enter the next menu. Press button UP or DOWN to shift
Press button FUNC, it will return to the upper menu one by one. The display will return automatically
to the function of address display if you stay for about 60 seconds defaulted.
SET THE DMX START ADDRESS
SETUP OPTIONS - PROJECTOR CONFIGURATION
