OmniSistem PR Design 250 - Manual (Page 5)

Design 250 EN.doc 5/26

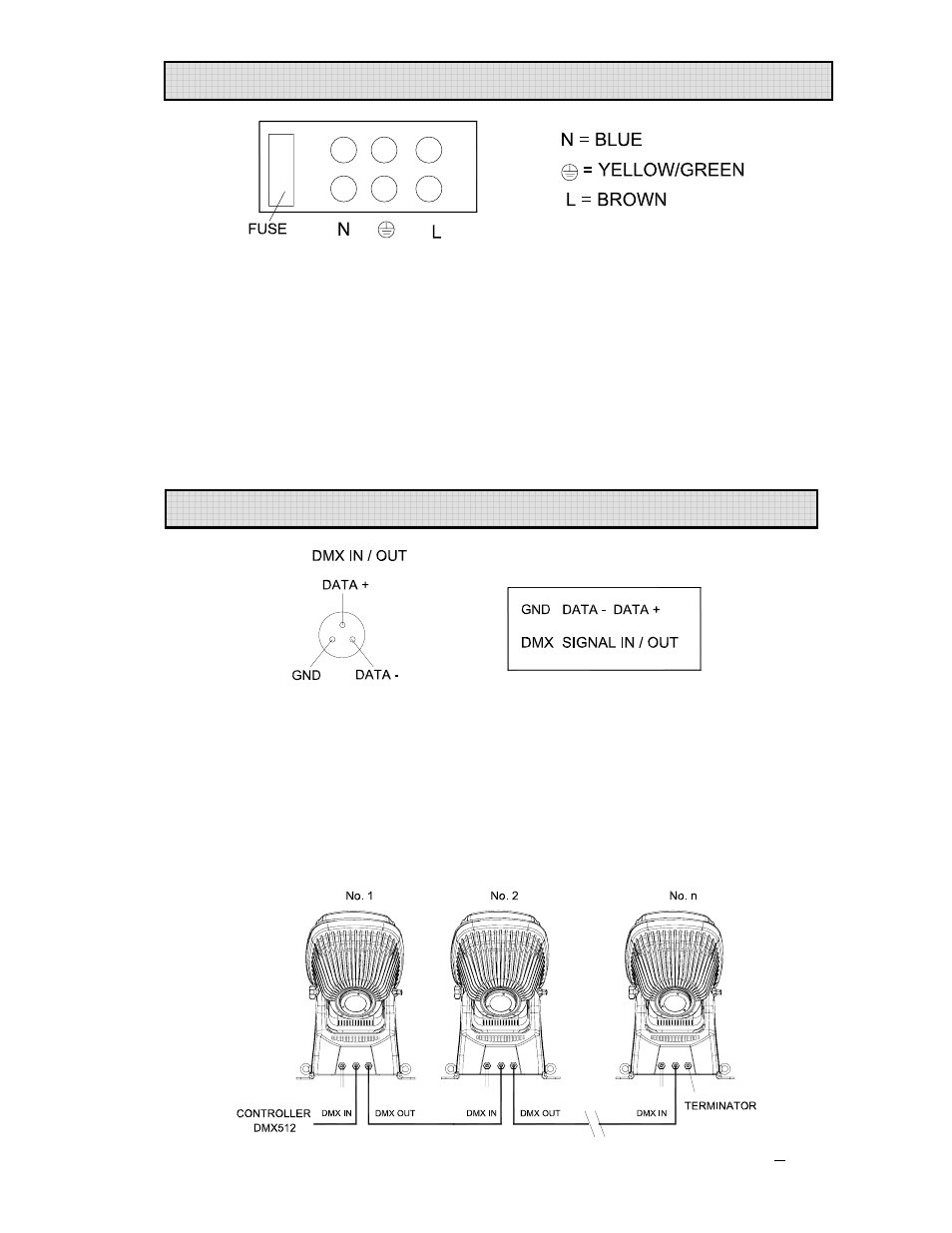

Use the power cord provided to connect the mains power to the projector. The user can
connect by yourself what you need. Open the underside of the base by undoing the 4
screws. You can see as shown in the figure above. To connect the power cord to the
relevant holder. To pay attention to the voltage and frequency marked on the panel of the
projector. It is recommended that each projector is supplied separately so that they may be
individually switched on and off.
IMPORTANT
It is essential that each projector is correctly earthed and that electrical installation
conforms to all relevant standards. Power consumption of the Design 250 is 350W at
220V.
Connection between controller and projector and between one projector and another must
be made with 2 core screened cable, with each core having at least a 0.5mm diameter.
Use the 2 XLR cords provided to connect the control to the projector. The user also
connects by yourself what you need. Open the underside of the base by undoing the 4
screws. You can see as shown in the figure above. To connect the XLR cord to the relevant
holder.
The Design 250 accepts digital control signals in standard DMX512 (1990) format.
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s
output to the second fixture’s input. The rest may be deduced by analogy. Eventually
connect the last fixture’s output to a DMX terminator as shown in the figure below.
POWER CONNECTIONS
CONTROL CONNECTIONS
