Your excellent helper in cable test! 05

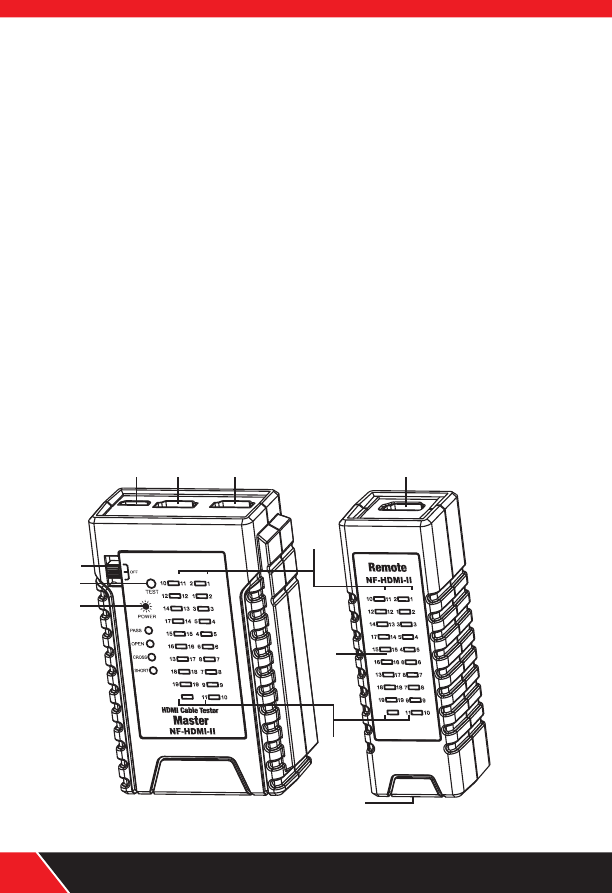

PRODUCT DIAGRAM(Fig 1)
1.LOOPBACK：Mini-HDMI (C Type)
This socket not only can be used on Master unit
loopback test but also can be used on Master unit
Mini-HDMI (C Type) with Remote unit Mini-HDMI
(C Type) to perform scan test.
2.MAIN：HDMI (A Type)
3.LOOPBACK：HDMI (A Type)
4.Remote unit：HDMI (A Type)
5.Remote unit：Mini-HDMI (C Type)
6.Switch：MASTER/OFF/REMOTE
7.TEST：Automatic fast/slow scan or manual test for
step by step.
8.Power and low battery indication.
9.HDMI (A Type) Pin number.
10.Mini-HDMI (C Type) Pin number.
11.LED for indicating signal situation.
Fig 1
Master Unit Remote Unit
2 1 4
5
6
8
9
10
11
3
7
Data 2+
Data 2-
Data 1S
Data 0+
Data 0-
Clock S
CEC
SCL
DDC/CEC
Hot Plug
Shield
Data 2S
Data 1+
Data 1-
Data 0S
Clock -
SDA
+5V Power
Clock +
C pin A pin C pin A pin
Uti./Res.
S S
MASTER
REMOTE
Clock S
CEC
SCL
DDC/CEC
Hot Plug
Shield
Clock -
SDA
+5V Power
Data 2+
Data 2-
Data 1S
Data 0+
Data 0-
Data 2S
Data 1+
Data 1-
Data 0S
Clock +
Uti./Res.
S
C pin A pin C pin A pin
S
