页 16, Fig 10 . crossover, Fig 9 . short – NOYAFA NF-HDMI-II User Manual

Page 16: Your excellent helper in cable test! 15

background image

Your excellent helper in cable test!

15

MASTER

REMOTE

Data 2+

Data 2-

Data 1S

Data 0+

Data 0-

Clock S

CEC

SCL

DDC/CEC

Hot Plug

Shield

Data 2S

Data 1+

Data 1-

Data 0S

Clock -

SDA

+5V Power

Clock +

C pin

A pin C pin A pin

Uti./Res.

S

S

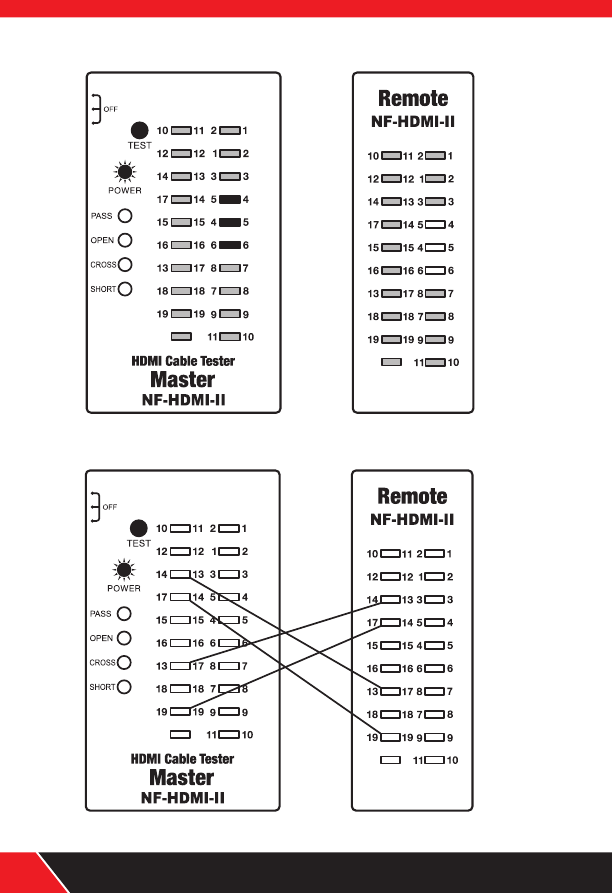

Fig 10 . Crossover

Clock S

CEC

SCL

DDC/CEC

Hot Plug

Shield

Clock -

SDA

+5V Power

Uti./Res.

S

C pin

A pin

S

Data 2+

Data 2-

Data 1S

Data 0+

Data 0-

Data 2S

Data 1+

Data 1-

Data 0S

Clock +

C pin A pin

Fig 9 . Short

MASTER

REMOTE

Data 2+

Data 2-

Data 1S

Data 0+

Data 0-

Clock S

CEC

SCL

DDC/CEC

Hot Plug

Shield

Data 2S

Data 1+

Data 1-

Data 0S

Clock -

SDA

+5V Power

Clock +

C pin

A pin C pin A pin

Uti./Res.

S

S

Clock S

CEC

SCL

DDC/CEC

Hot Plug

Shield

Clock -

SDA

+5V Power

Uti./Res.

S

C pin

A pin

S

Data 2+

Data 2-

Data 1S

Data 0+

Data 0-

Data 2S

Data 1+

Data 1-

Data 0S

Clock +

C pin A pin
