11
4.3 R
OLL
S
ENSOR
I
NSTALLATION
Mount the roll sensors to the included roll
sensor brackets using the machine screws
and nylon lock nuts, as illustrated in Figure
13.
The roll sensors must be
mounted tightly to the brackets.

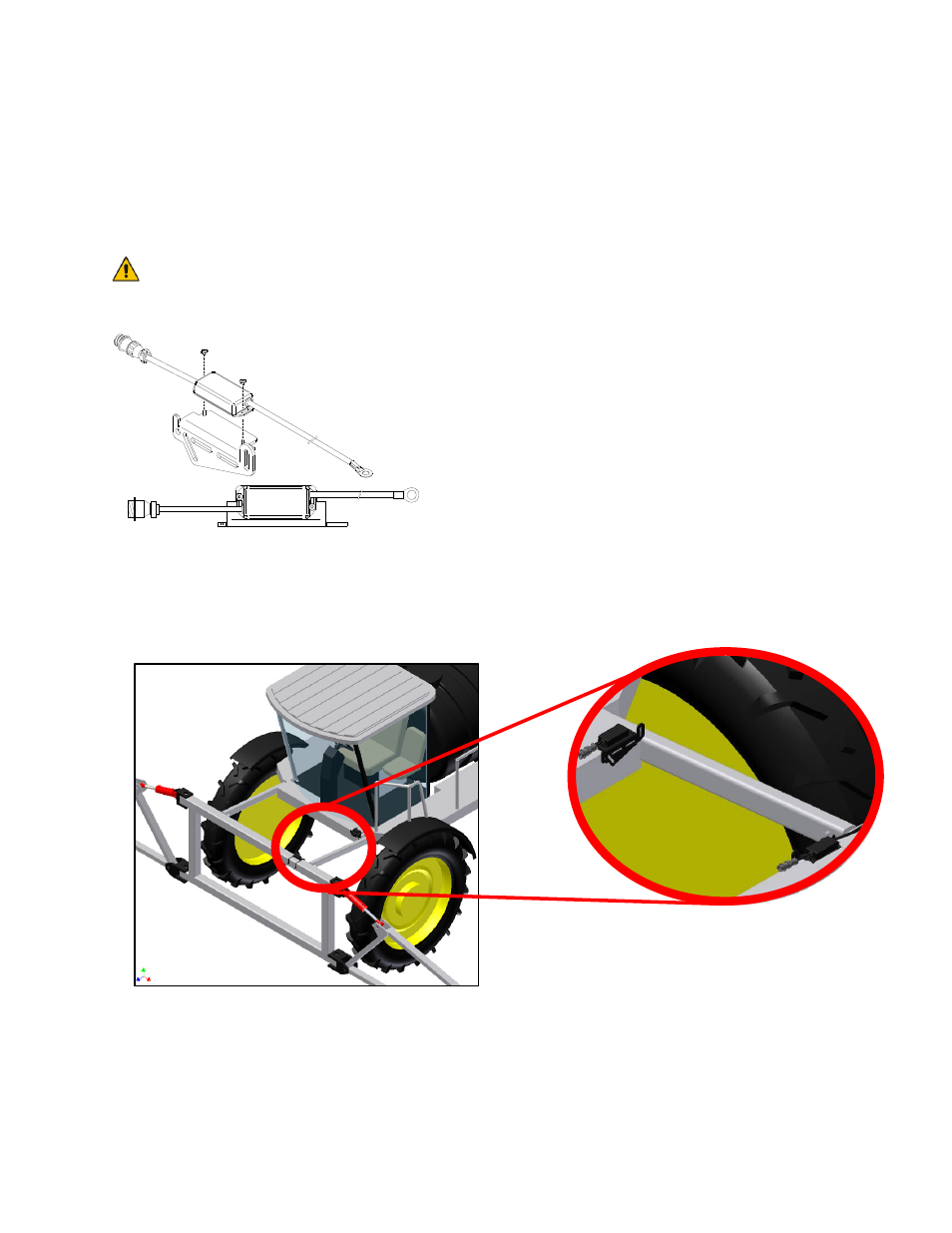

Figure 13: Mounting the Roll Sensor
to the Roll Sensor Mounting Bracket
When mounting the roll sensors use the
following guidelines and refer to Figure 14.
1. Ensure the roll sensors are sitting
relatively level when the sprayer chassis
and boom are level.
2. Both roll sensors must be mounted
with the circular AMP connector facing
towards the Right-Hand Wing (when
looking from the rear of the sprayer).
Figure 14: Mounting Guidelines
