6

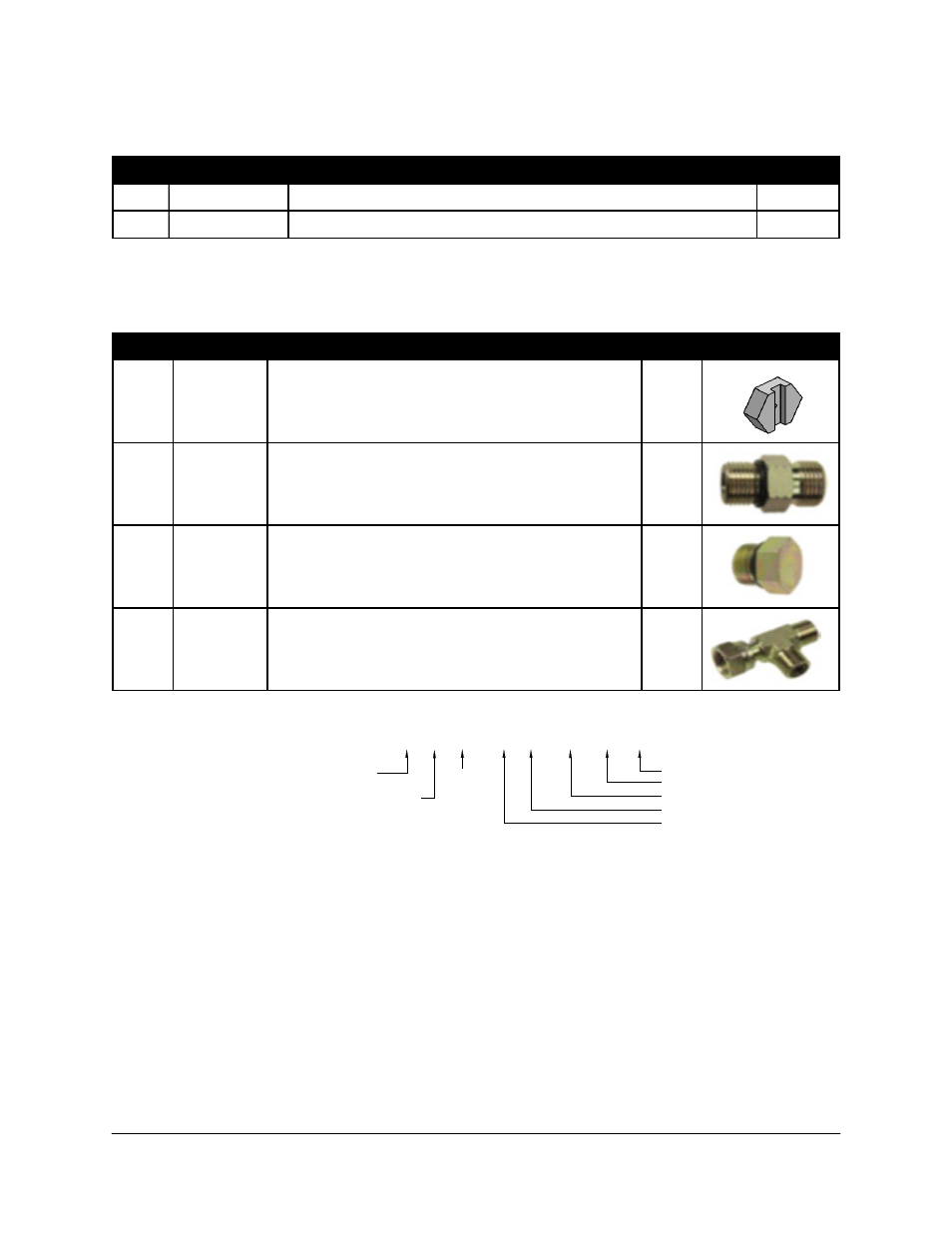

3.5 Hydraulic Parts - Flat Faced O-Ring Fittings (RG5)
Item Part Number Name Quantity
H01 44863-46 HOSE ASSEMBLY 122R2-06 40IN L 6FORX90 8FORX 4
H10 44865-47 HYDRAULICS FITTING KIT - RG5 1
3.6 Hydraulic Fitting Kit Details (P/N: 44865-47)
Item Part Number Name Quantity Picture
F01 44928 ORIFICE INSERT .047 IN ONE WAY 2
F02 44917 MALE ADAPTER - 6MB 6MOR MACHINED 4
F03 104369 PLUG - 6MBP 2
F04 104885 TEE ADAPTER - 8FORXR 8MORT 4
6 M B - 6 M OR X 90
SIZE IN
1/16
TH'S
GENDER: MALE
OR FEMALE
90 ° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
