7 round profile aluminum booms – NORAC UC4.5-BC-HD5 Part 1 User Manual
Page 16
13
5.7 Round Profile Aluminum Booms
Mount the sensor bracket using round tube clamps (item HARI07), near the spring for the tip
breakaway. Ensure the bracket does not rotate downwards with vibration. Mounting location
is just inside of the boom break-away section (A).

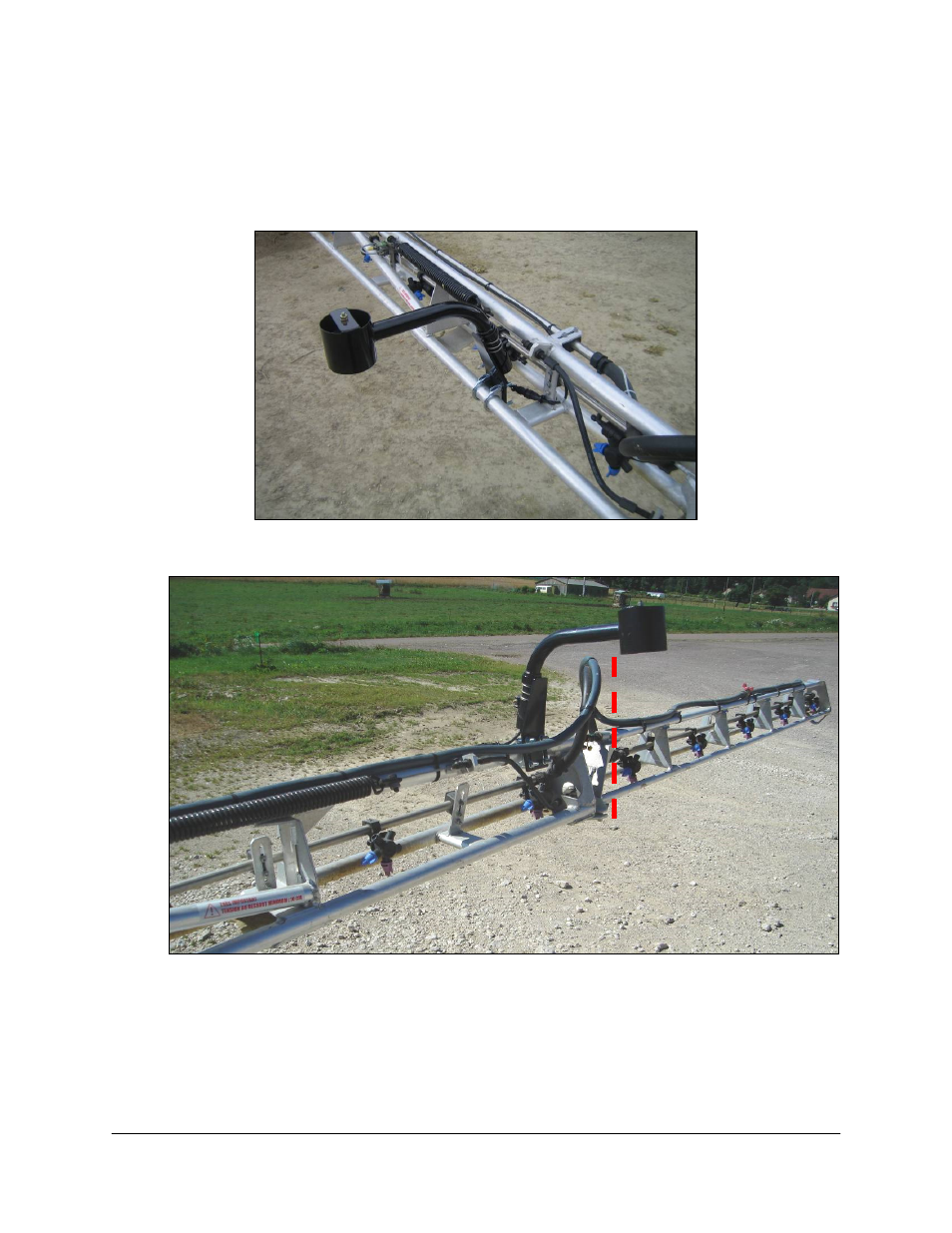

Figure 11: Suggested UC4 Bracket Mounting Location
Figure 12: Another Acceptable Mounting Location
(A)
