8.2 Valve Assembly – Single Acting
1. On a clean surface remove the plastic plugs from the block.
2. Install the 6MB 6MJ (F02) fittings into the “P” and “T” ports on the NORAC block. Tighten
to 18 ft-lbs (24 Nm).
3. Insert the orifices (F01) into the “B” ports with the notch facing out.
4. Install the 6MB 6MJ (F02) fittings into the “B” ports on the NORAC block. Tighten to 18
ft-lbs (24 Nm).
5. Install the 6MBP (F03) plugs into the “A” ports on the NORAC block and tighten to 18 ft-
lbs (24 Nm).

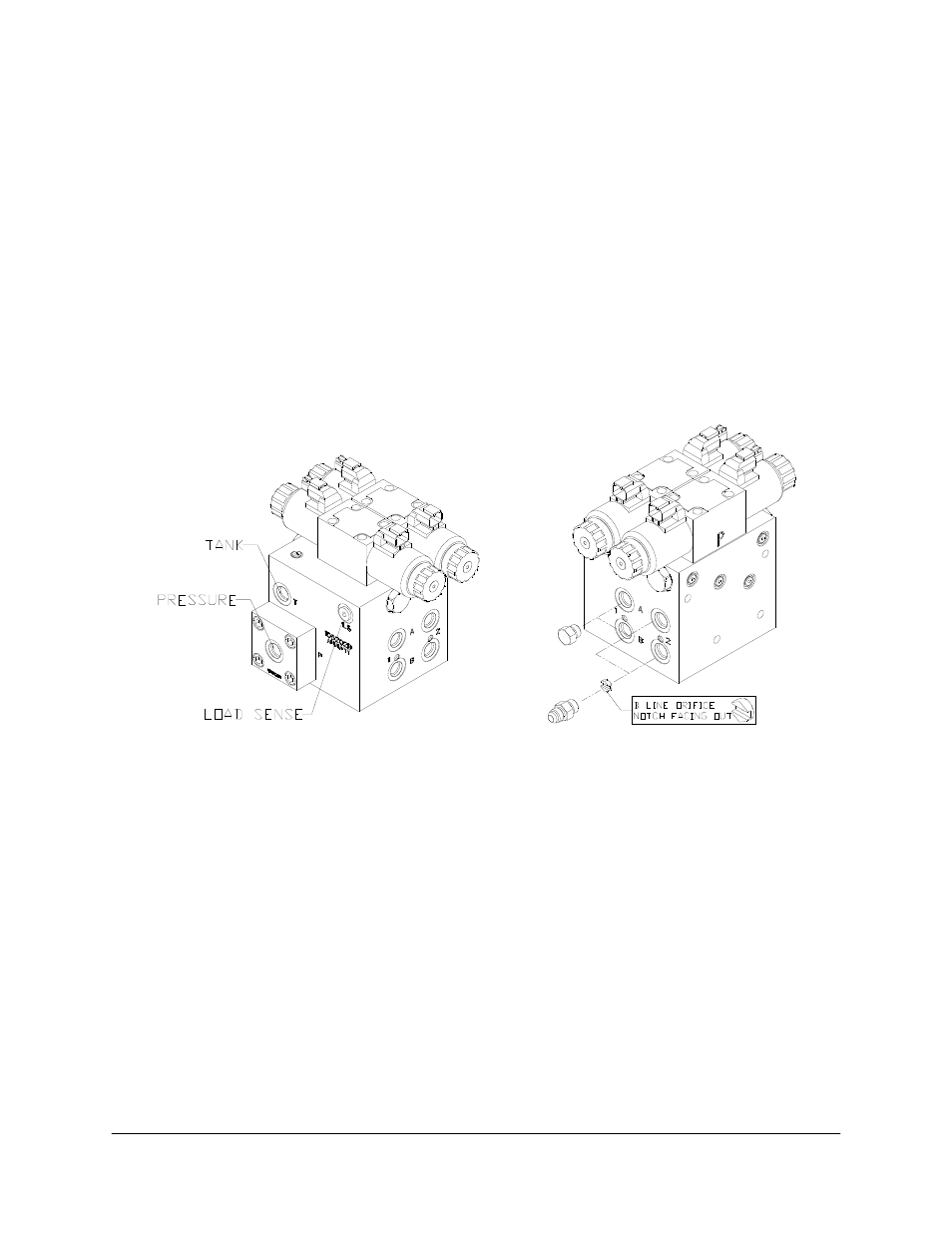

Figure 18: NORAC Valve Block Details – Single Acting
