OPERATING INSTRUCTIONS
This appliance is designed for wrapping fruits, vegetables, fish, meat, cold food, etc.
1. To load film, place film roll onto film roll bearing blocks, tighten the wing nuts
and put the plastic caps onto threaded ends.
2. Flip cover plate upward.
3. Route the film between cover plate and film retainer rod. (See Film loading
diagram)
4. Insert the power cord plug into a properly grounded outlet.
5. Turn the main switch on and the red indicator lamp will light up.
6. Turn the thermostat to set the desired temperature.
7. Allow 5 to 10 minutes for the unit to pre-heat.
8. Place food onto the cover plate.
9. Draw out film and cover food.
10. Use the cut off rod to cut film.
11. Flip cover plate with food onto hot plate.
12. Allow 3-5 seconds for food to be completely sealed.

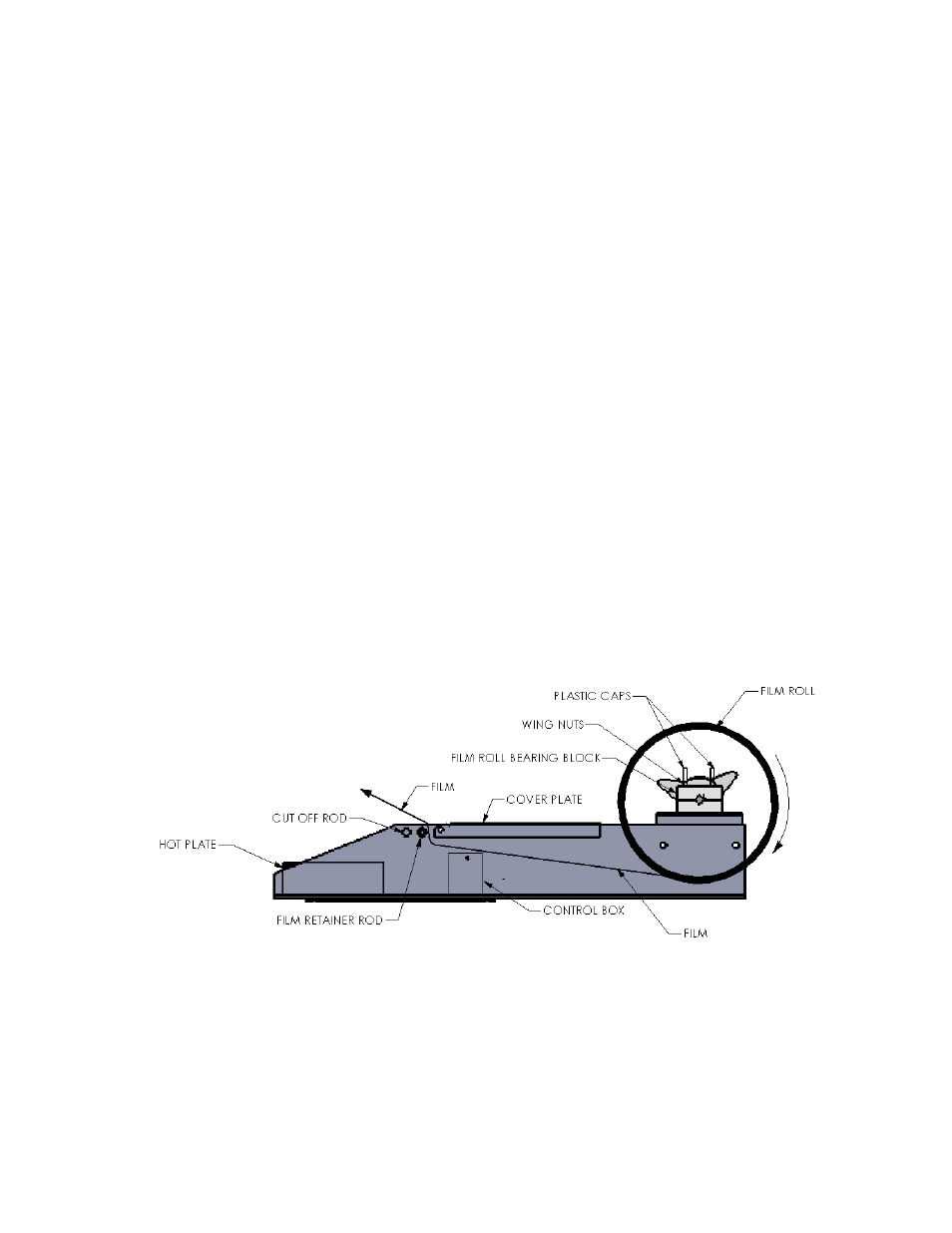

FILM LOADING DIAGRAM
