Muchmore LiPo Regulator (MRG-3A/5A/7A) User Manual
Muchmore For the car

CTX REGULATOR INSTRUCTION
This unit regulates the voltage(7.4V) of Li-po battery at 6.5V.
INSTRUCTION
1) Connect the J type connector of the regulator to the receiver(BATT slot).
Make sure the direction of connectors is correct.
2) Mount CTX Regulator in proper area with double sided tape.
The unit may generate heat a little when its power is on.
Well ventilated place is recommended.
Do not cover or seal the unit unless the track is wet.
3) For Electric cars, remove plus(red) wire of the ESC to the receiver.
7.4V Li-po battery and the CTX regulator will supply power instead.
4) Connect Li-Po battery to the JST connector(red) of the regulator.
We recommend you to use Muchmore Li-Po battery in order to get the best
performance.
5) A blue LED will be turned on if Li-Po battery is connected.
6) Make sure to disconnect the Li-Po battery after use.
7) Recharge Li-Po battery after 3-4runs.
8) If you will use 2 servos for 1/8 scaled cars etc. or you expect your radio system
might consume large amount of current, please choose 5A or 7A models.
Specifications
Required battery
cell Li-Po battery
7.4V
Length of input wire
9cm
Length of output wire
13cm
Type of connectors
JST RCY(to the battery) / J type 3pins(to the receiver)
Use only 7.4V Li-Po battery. Do not use any other type of batteries for these
regulators.
Category
Size
Weight
Output
6.5V
6.5V
6.5V
17 x 34 x 6mm
17 x 37 x 7mm
20 x 36 x 8mm
8.7g
9.8g
13.5g
www.much-more.co.kr

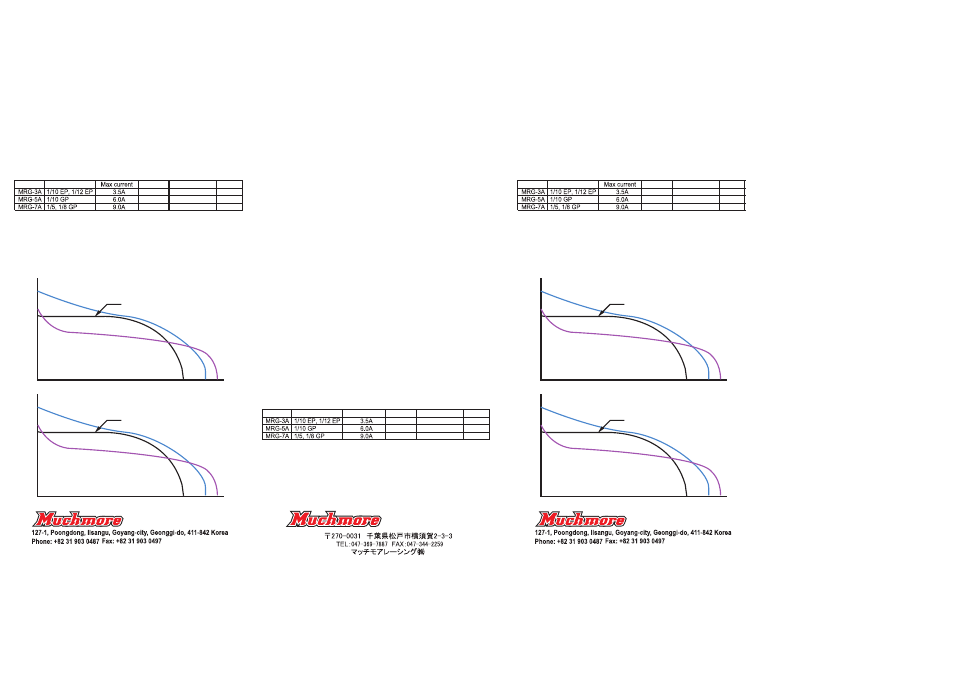

Voltage
4.0V
8.0V
6.0V
Minutes
200mAh Li-po battery(improper to use for receiver itself)
200mAh Li-po battery+CTX regulator
200mAh Ni-CD or Ni-MH battery
(unstable output voltage)
4.0V
8.0V
6.0V
6.5V
6.5V
6.5V
17 x 34 x 6mm
17 x 37 x 7mm
20 x 36 x 8mm
8.7g
9.8g
13.5g
www
.muchmore.co.jp
CTX REGULATOR INSTRUCTION
This unit regulates the voltage(7.4V) of Li-po battery at 6.5V.
INSTRUCTION
1) Connect the J type connector of the regulator to the receiver(BATT slot).
Make sure the direction of connectors is correct.
2) Mount CTX Regulator in proper area with double sided tape.
The unit may generate heat a little when its power is on.
Well ventilated place is recommended.
Do not cover or seal the unit unless the track is wet.
3) For Electric cars, remove plus(red) wire of the ESC to the receiver.
7.4V Li-po battery and the CTX regulator will supply power instead.
4) Connect Li-Po battery to the JST connector(red) of the regulator.
We recommend you to use Muchmore Li-Po battery in order to get the best
performance.
5) A blue LED will be turned on if Li-Po battery is connected.
6) Make sure to disconnect the Li-Po battery after use.
7) Recharge Li-Po battery after 3-4runs.
8) If you will use 2 servos for 1/8 scaled cars etc. or you expect your radio system
might consume large amount of current, please choose 5A or 7A models.
Specifications
Required battery
cell Li-Po battery
7.4V
Length of input wire
9cm
Length of output wire
13cm
Type of connectors
JST RCY(to the battery) / J type 3pins(to the receiver)
Use only 7.4V Li-Po battery. Do not use any other type of batteries for these
regulators.
Category
Size
Weight
Output
6.5V
6.5V
6.5V
17 x 34 x 6mm
17 x 37 x 7mm
20 x 36 x 8mm
8.7g
9.8g
13.5g
www.much-more.co.kr
Voltage
4.0V
8.0V
6.0V
Minutes
200mAh Li-po battery(improper to use for receiver itself)
200mAh Li-po battery+CTX regulator
200mAh Ni-CD or Ni-MH battery
(unstable output voltage)
4.0V
8.0V
6.0V
