Please read these instructions fully and handle the DS correctly.
䂓 The DS is not intended for use by unsupervised children.
䂓 Be careful not to drop the DS unit and avoid any kind of impacts.
䂓Do not connect more than two kinds of batteries at the same time.
䂓
Connect the plugs tightly, ensure they are not loose.
䂓 Keep the DS away from heavy vibration, moisture, dust or excessive heat.
䂓 When you connect plugs, make sure the polarity is correct.
䂓Do not operated the DS near water or fire.
䂓
Do not operate with wet hands.
䂓Do not connect AC power to DS.
Docking Station (referred to as the DS) is a multi purpose connector which is
able to connect various popular connectors such as Tx, Rx, Deans Ultra plug
and Booster to your charger. The DS can be docked easily with the Muchmore
Silent charger and ACDC Silent charger by the attached banana plugs or can
be connected by clips to other types of chargers.
The DS ensures a perfect electric contact between battery and charger so it
reduces the chance of charging fails during the race.
Since the DS equips specially designed safe fuses for each channel inside, in
case you connect more than two kinds of different type of batteries at the same
time, the battery will be protected by short circuit by these fuses.
Since there's always a remote chance of fuse damage by overheating, always
connect batteries one by one when you charge/discharge the battery through
the DS.
124x52x28mm
112g
6A
2.5A
2.5A
6A
4A
50cm
Dimensions............................................................................
Weight....................................................................................................
Max charge current in Universal connector...........................................
Max current in Rx..................................................................................
Max current in Tx...................................................................................
Max current in Ultra plug.........................................................................
Max current in Booster.............................................................................
Length of Tx, Rx wires........................................................................
2007 MUCHMORE
All products from Muchmore Racing are manufactured according to the highest quality
standards. Muchmore Racing guarantees this product to be free from defects in materials or
workmanship for 120days from the original date of purchase veried by sales receipt. This
limited warranty doesn’t cover defects, which are result of normal wear, misuse or improper
maintenance. This applies among other things to:
䂓Cut off original power plug or not using reverse polarity protected plugs
䂓Mechanical damage of the case
䂓Mechanical damage of electronic components/PCB Soldered on the PCB (except on
external solder-tabs)
With Limited Lifetime Warranty products, the warranty terms on the Limited Lifetime Warranty
card do also apply. To eliminate all other possibilities or improper handling, first check all other
components and the trouble shooting guide before you send this product for repair or
warranty. Product sent in for repair, that operate perfect have to be charged with a service fee.
By sending in this product, you assign Muchmore Racing to repair the product, if it is no
warranty or Limited Lifetime Warranty case. The original sales receipt including date of
purchase needs to be included. Otherwise, no warranty can be granted. For quick repair and
return service, add your address and detailed description of the malfunction. Our limited
warranty liability shall be limited to repairing the unit to our original specifications. In no case
shall our liability exceed the original cost of this unit. Because we don’t have control over the
installation or use of this product, we can’t accept any liability for any damages resulting from
using this product. By installing or operating this product, the user accepts all resulting liability.
The specifications like weight, size and others should be seen as guide values. Due to
ongoing technical improvements, any change for the interest of the product might happen.
Muchmore Racing does not take any responsibility for the accuracy of these specs.
MUCHMORE RACING DISTRIBUTOR SERVICE MUCHMORE RACING DISTRIBUTOR SERVICE
Package your product carefully and includes sales receipt and detailed description of
malfunction.
Send parcel to your national Muchmore Racing distributor. Distributor repairs or exchanges
the product.
Shipment back to you usually by COD(cash on delivery), but this is subject to your national
Muchmore Racing distributor’s general policy.

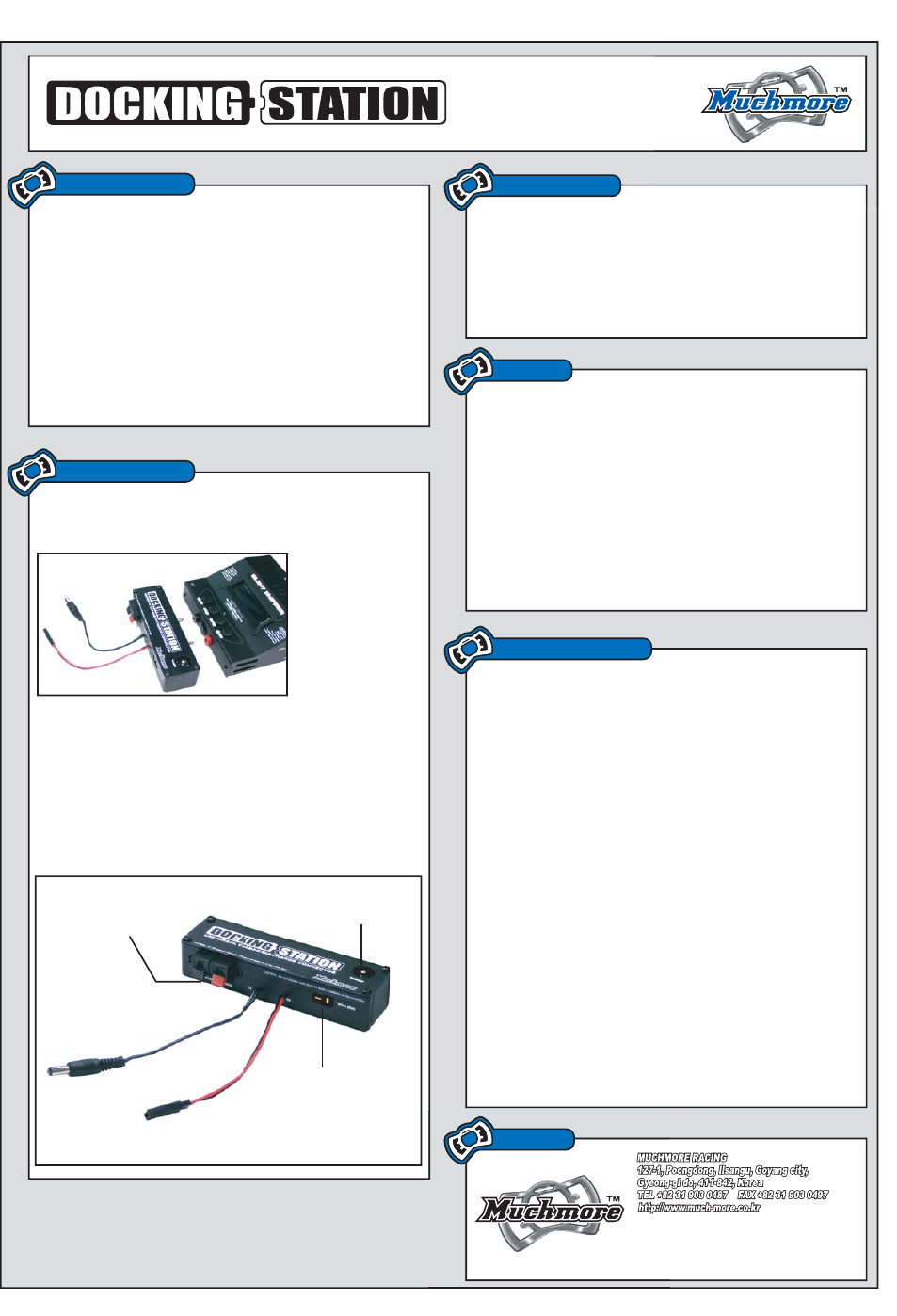

䂓How to dock the DS with Silent charger series.
Disconnect out put wires from Silent charger then dock the DS with
Silent charger. Refer to picture below:
䂓How to connect DS with other type of chargers
Connect output clips of other type of charger to DS' banana plugs.
Red is +, Black is -.
䂓How to connect each type of battey to the DS
Do not exceed the max charge/discharge current value for each
channel(refer to Specifications chart) when you set charge/discharge value
of your charger.
Universal connector:
Other type of wires or connectors
can be connected to here as
users preference.
Booster:
GP car Booster
Tx:
Transmitter connector
JR connector has opposite polarity,
in this case you can connect JR
connector to the universal
connectors slots.
Rx:
Receiver connector
Ultra Plug:
Deans type Ultra connector
