IMPORTANT SAFETY INSTRUCTIONS

FUNCTIONAL DESCRIPTION

PERSONAL SAFETY

LASER SAFETY

WORK AREA SAFETY

SYMBOLOGY

BATTERY USE AND CARE

SERVICE

Federal Communications Commission

WARNING: Changes or modifi cations to this unit not

expressly approved by the party responsible for com-

pliance could void the user’s authority to operate the

equipment.
This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not in-

stalled and used in accordance with the instructions, may

cause harmful interference to radio communications.
However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and

receiver.

• Consult the dealer or an experienced radio/TV techni-

cian for help.

WARNING

READ ALL SAFETY WARNINGS AND INSTRUCTIONS.

Failure to follow

the warnings and instructions may result in electric shock, fi re and/or serious injury. Save

these instructions - This operator’s manual contains important safety and operating instructions
for the MILWAUKEE Laser Temp-Gun™ Thermometer. Before using the Temp-Gun™, read this
operator’s manual and all labels on the Temp-Gun™.

• Laser light - Do not stare into beam or view

directly with optical instruments. Do not point
laser light at others.

Laser light can cause eye

damage.

• Avoid exposure to laser radiation.

Laser may

emit hazardous radiation.

• Do not point laser at refl ective surfaces.

Un-

predictable results may occur.

• Keep children and bystanders away while op-

erating Temp-Gun™.

Store idle Temp-Guns™

out of the reach of children and do not allow
persons unfamiliar with the tool or these in-
structions to operate them.

• Avoid dangerous environments

. Do not use in

rain, snow, damp or wet locations. Do not use in

the presence of explosive atmospheres (gaseous

fumes, dust or fl ammable materials) because

sparks may be generated when inserting or remov-

ing batteries, possibly causing fi re.

• Stay alert, watch what you are doing and use

common sense when operating Temp-Gun™.
Do not use while you are tired or under the
infl uence of drugs, alcohol or medication.

moment of inattention may result in serious per-

sonal injury.

• Do not overreach. Keep proper footing and

balance at all times.

This enables better control

in unexpected situations.

• This tool is designed to be powered by

3-AA batteries properly inserted into the
MILWAUKEE Temp-Gun™

Do not attempt to use

with any other voltage or power supply.

• Do not leave batteries within the reach of

children.

• Do not mix new and used batteries. Do not mix

brands (or types within brands) of batteries.

• Do not mix rechargeable and non-recharge-

able batteries.

• Install batteries according to polarity (+ / –)

diagrams.

• Properly dispose of used batteries immedi-

ately.

• Do not incinerate or dismantle batteries.

• Under abusive conditions, liquid may be eject-

ed from the battery, avoid contact. If contact
accidentally occurs, fl ush with water. If liquid
contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation

or burns.

• Have your Temp-Gun™ serviced by a qualifi ed

repair person using only identical replacement
parts.

This will ensure that the safety of the tool is

maintained.

• Do not disassemble.

Incorrect reassembly may

result in the risk of electric shock or fi re. If it is dam-

aged, take it to a MILWAUKEE service facility.

• Store in a cool, dry place.

Do not store where

temperatures may exceed 140°F (60°C) such as

in direct sunlight, a vehicle or metal building during

the summer.

• Do not remove or deface labels. Maintain

labels and nameplates.

These carry important

information. If unreadable or missing, contact a
MILWAUKEE

service facility for a free replace-

ment.

Specifi cations

Laser Type:

Class II

Max Power:

<1mW

Wavelength:

630-670 nm

IR Temperature range: -30°C to 350°C (-22°F to 662°F)
IR Accuracy:
-

30°C to 10°C (-22°F to 50°F): ±1.5°C (3°F) + 0.1°C / 1°C

10°C to 120°C (50°F to 248°F): ±1.5°C (3°F) or ±1.5%

of reading, whichever is greater

120°C to 350°C (248°F to 662°F): ±2.0°C (4°F) or 2.0%

of reading, whichever is greater

*Assume ambient operating temperature of 23°C to 25°C

(73°F to 77°F)

Min. measuring distance:

2” < 50°C (122°F),

4” > 50°C (122°F)

Temperature display resolution:

0.1°C/°F in Primary, 1°C/°F in Secondary

Emissivity:

0.95

Response time:

<500 msec

Spectral response:

5.5 to 14μm

Distance to spot:

10 to 1

Drop:

1.5 meter

Repeatability:

±0.5% OR ±1°C(±2°F)

(whichever is greater)
Operating temperature:

0°c to 50°C (32°F to 122°F)

Storage temperature:

-20°C to 60°C (-4°F to 140°F)

without battery
Relative humidity:

10 to 90% RH non-condensing

at <30°C ambient
Voltage:

4.5 DC (three (3) AA batteries)

Battery life:

Greater than 12 hrs with all functions

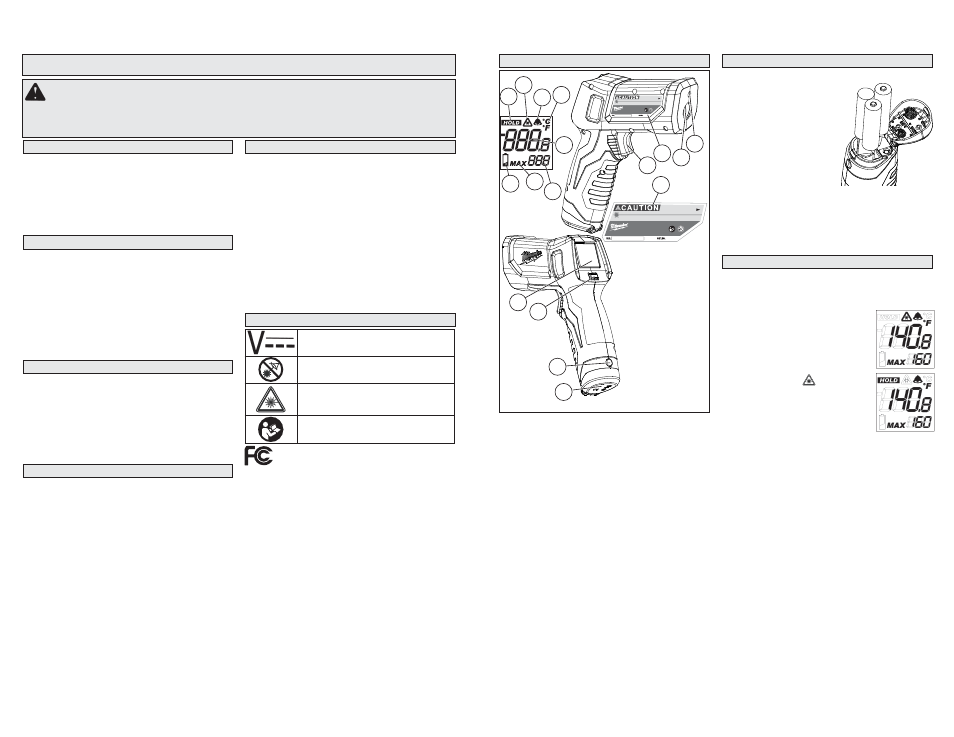

1. Laser window

2. Infrared sensor

3. Nameplate

4. Trigger

5. Display

6. Alarm Button

7. Battery door

8. Battery door lock

9. Hold indicator

10.Laser active indicator

11.Alarm indicator

12. C° or F° indicator

13.Primary

measurement

14.Secondary

measurement

15. Max reading indicator

16. Low battery indicator

Volts Direct Current

CAUTION Laser Light - Do Not

Stare Into Beam
Laser product

Avoid Exposure: Laser Radiation Is

Emitted From This Aperture
To reduce the risk of injury, user must

read operator’s manual.

ASSEMBLY

Loading/Changing the Batteries

1. Press in the battery door

lock and open the battery

door.

2. Before installing batteries

for the fi rst time, remove

the white, rectangular tag

in the battery compart-

ment.

3. Insert three (3) AA batter-

ies, as displayed.

4. Close the battery door

securely.

Selecting Celsius or Fahrenheit

Switch between Celsius and Fahrenheit tempera-

ture display anytime by using the switch inside the
battery compartment.

OPERATION

Scanning Object IR Temperature

1. Pull and hold the trigger for at least 2 seconds

and scan the surface temperature of an object.

A laser pointer is used for aiming on the area

being scanned.

NOTE: The object should be larg-

er than the spot being scanned. If

not, readings will be affected. See

Distance To Spot for necessary

object size.

2. As you continue to hold the

trigger, the icon

is displayed

along with the surface tempera-

ture (primary measurement) and

maximum temperature (second-

ary measurement) readings.

3. Release the trigger. HOLD is

displayed until the screen shuts

off in about seven seconds.

NOTE:

A quick change in temperature (>10°F) af-

fects the meter’s readings. Allow the meter to reach

ambient temperature before use (5 to 30 minutes,

depending on temperature change).
