Initial Configuration of the Switch
Modular SAN Array Fabric Switch 6 User Guide 2-17
COMPAQ CONFIDENTIAL
Writer: Kim L. Miller File Name: c-ch2 Initial Configuration of the Switch.doc
Codename: Millebourne Part Number: 230934-002 Last Saved On: 7/17/02 7:46 AM

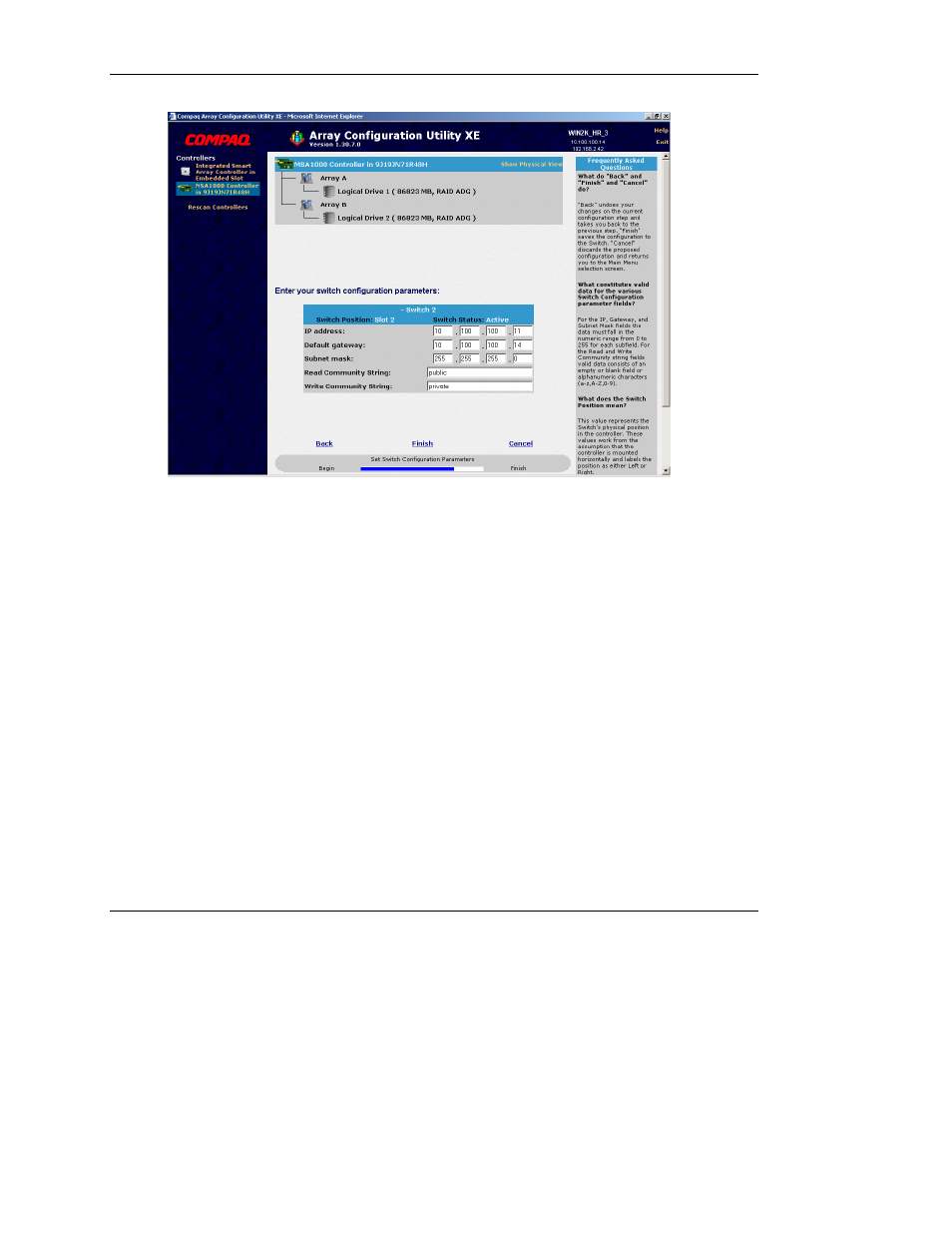

Figure 2-11: Switch parameters input screen
2. Enter the following information:
• IP Address
• Default Gateway
• Subnet Mask
• Read and Write Community strings
3. Click Finish to save the settings.
4. Repeat these procedures to set up another switch, if necessary.
