TD-
Twin Direct
30

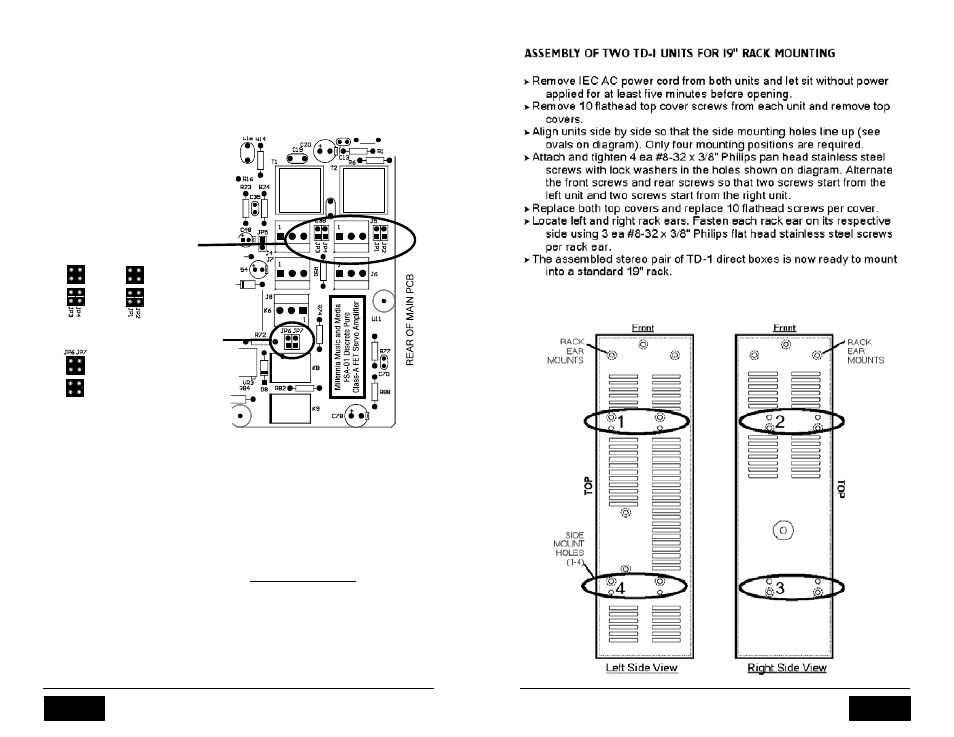

JUMPER MAPS
MAIN PCB
For more on jumper options inside the TWIN DIRECT, please refer to the
Signal Flow Diagram and detail instruction pages. Remember, before
you remove TWIN DIRECT’s top cover, always assure that the IEC AC
power plug has been disconnected for at least five minutes. This will al-
low potentially lethal voltages inside the TWIN DIRECT to dissipate to a
safe level.
Millennia
MET-01
Emulation
Transformer
Millennia
MET-02
Emulation
Transformer
JP3-JP4 REAMP I POLARITY
JP1-JP2 REAMP II POLARITY
JP6-JP7 BAL LINE OUT POLARITY
Signal polarity is selected via
jumpers pairs. When jumpers
are on their own headers, polarity is
normal. When jumpers straddle two
headers, polarity is reversed.
Normal Polarity
Normal Polarity
Reversed Polarity
Reversed Polarity
Reamp and Balanced Line Output Polarity Jumpers — Main Board
