Preparing the Spectrum 2 Printer
What’s In The Box
• Spectrum 2 Printer
• Spectrum 2 printer adapter plate
• Power adapter
• Spectrum 2 printer software CD
• Black ribbon (installed in printer)
• Warranty statement and registration card
•
Operator’s manual
(fig. 1)
Installing the Spectrum 2 Printer Plate

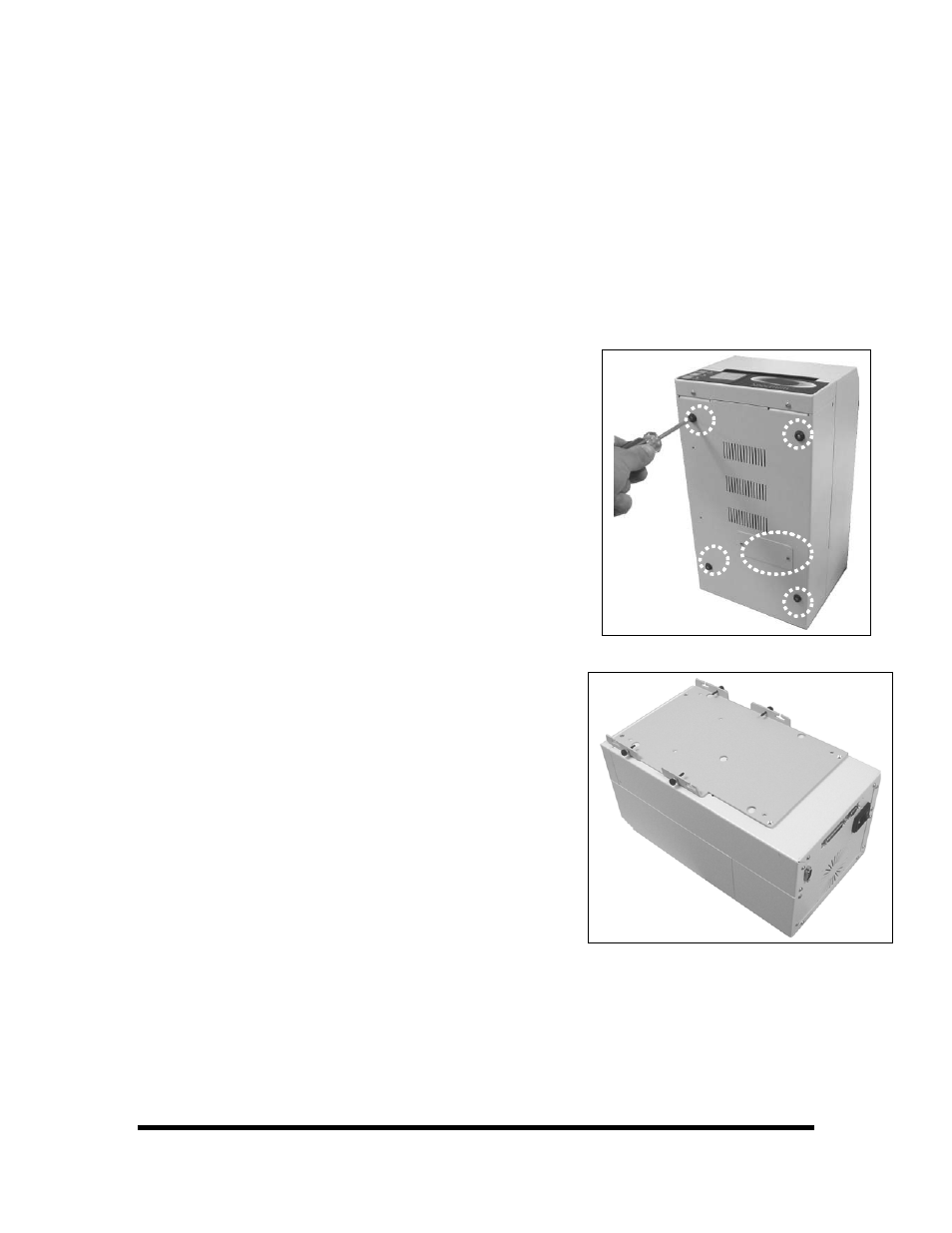

1. With a Phillips head screwdriver,
remove the rubber feet from the
bottom of the printer (fig. 1). You will
also want to remove the small plate
from the bottom of the printer (fig. 1).
2. Using the screws provided, attach the
printer plate to the bottom of the
printer as seen in (fig. 2).
(fig. 2)
