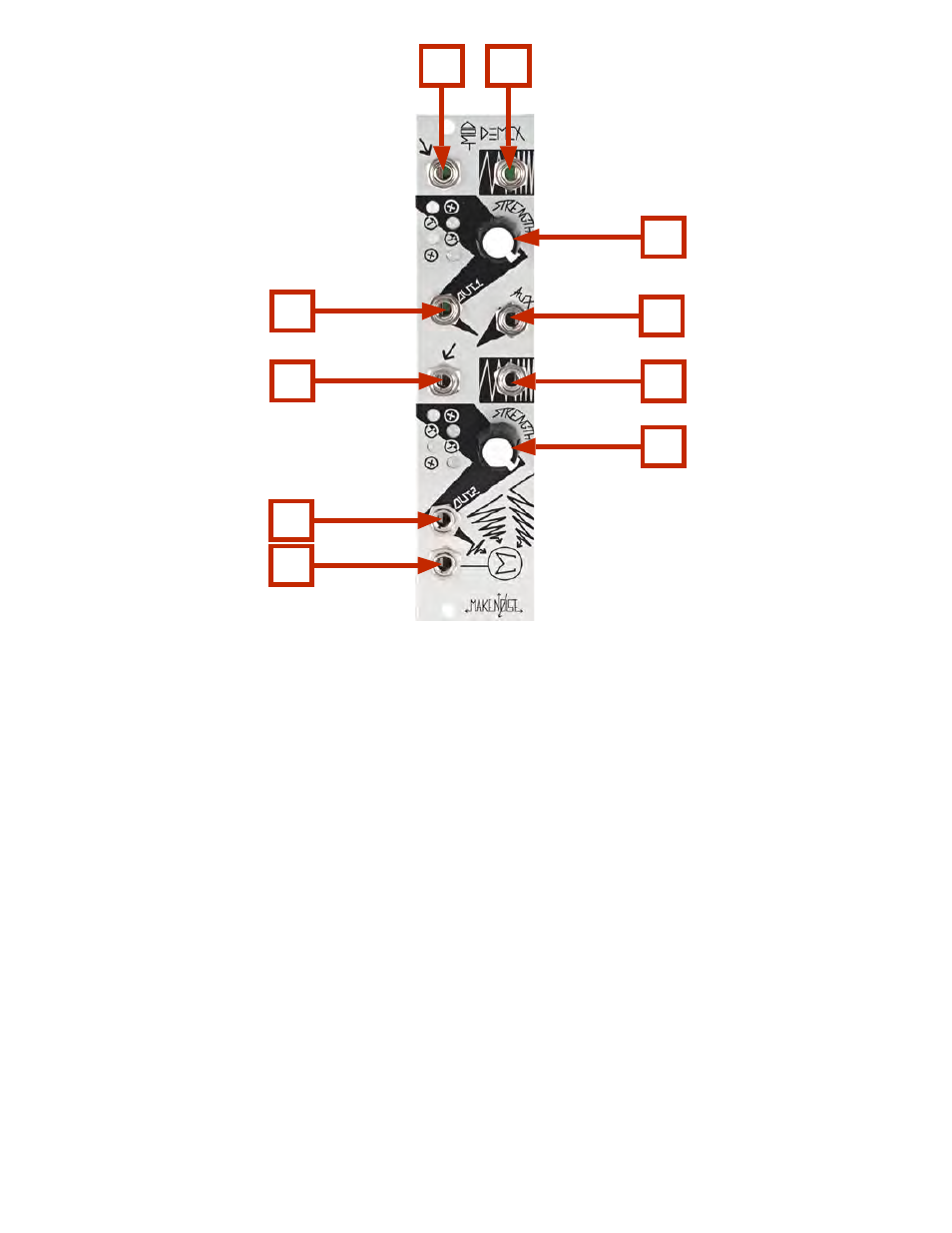

modDemix Panel Controls
1. Signal 1 IN: signal to be processed.
2. Carrier/ CV 1 IN: determines amplitude & phase of Signal 1 IN. Normalled to Carrier/ CV.
3. Signal 1 OUT.
4. Signal 2 IN: signal to be processed. Normalled to Signal 1 OUT.
5. Signal 2 OUT.
6. SUM OUT: mix of Signal 1 OUT, Signal 2 OUT & AUX. IN v
7. Carrier/ CV 1 Strength: attenuator for Carrier/ CV IN.
8. AUXiliary INput to Summing stage: chain multiple units for larger mixes.
9. Carrier/ CV 2 IN: determines amplitude & phase of Signal 2 IN. Normalled to Signal 2 IN.
10. Carrier/ CV 2 Strength: attenuator for Carrier/ CV IN.
