Make Noise Echophon User Manual

Page 4

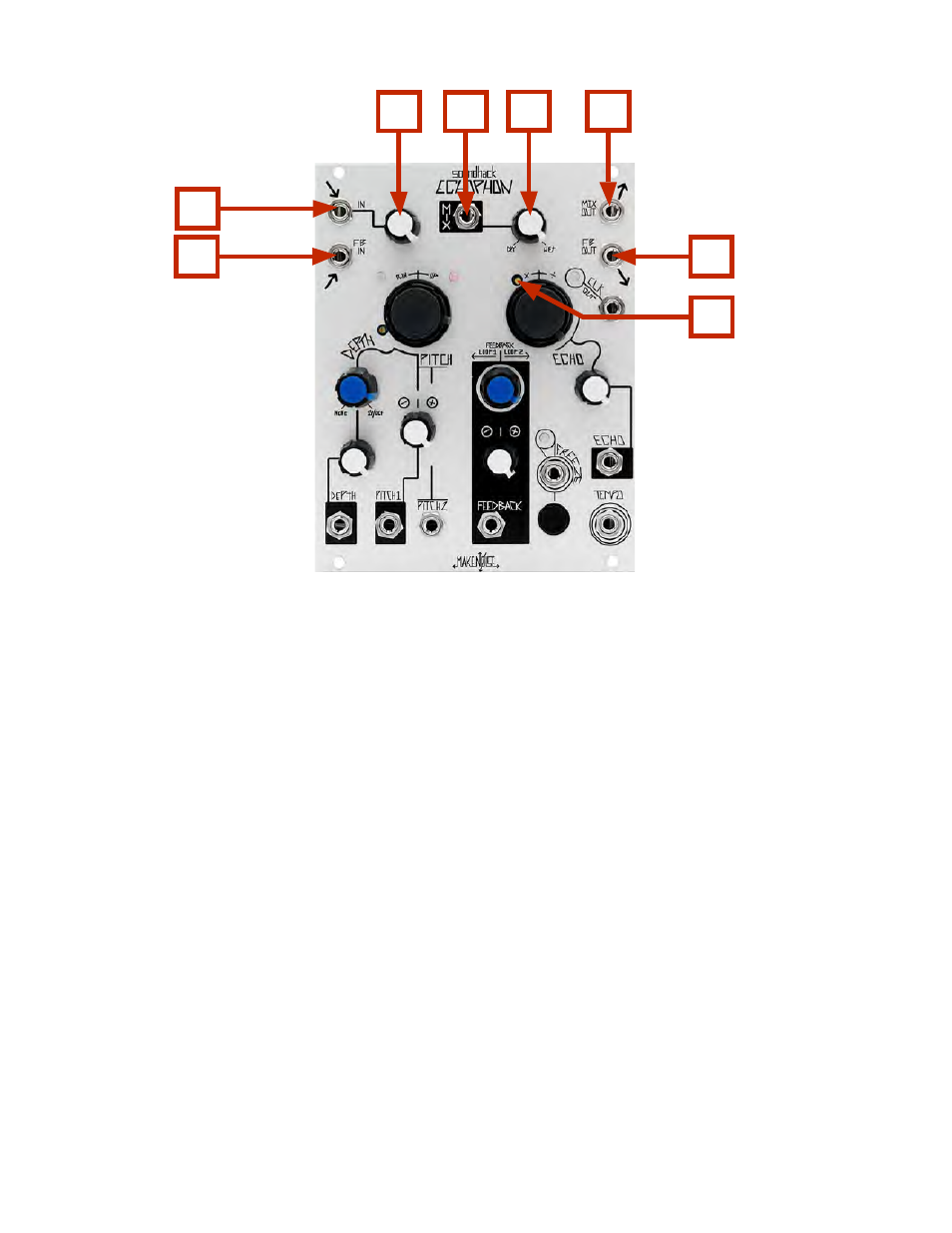

Echophon Panel Controls

Audio Input/ Output

1A. Signal IN: AC coupled, expects standard signal level of 10Vpp signal.

2A. Level Control for Signal IN: overloads at 70% to 100%

3A. Mix CV IN: unipolar control input. Range 0V to +5V.

4A. Trim for Mix Control (see calibration procedure)

5A. MIX Panel Control: blends between DRY (un-processed) signal & WET (processed) Signal. With nothing

patched to MIX CV IN, works as standard panel control. With Signal Patched to MIX CV IN, works as

attenuator for that signal.

6A. MIX OUT: 10Vpp (depending upon Level setting and source material), AC coupled.

External Feedback

1B. Feedback IN: AC coupled return for external FB loop. Expects standard signal level of 10Vpp.

2B. Feedback OUT: AC coupled, 10Vpp send for external FB loop.
