Connecting to the Internal Headers and
Connectors
Before connecting cables to the internal headers or connectors, observe the
precautions in "Before You Begin" on page 27. Figure 11 shows the location of the
board’s internal connectors and headers; Table 5 describes the internal connectors and
headers identified in Figure 11.

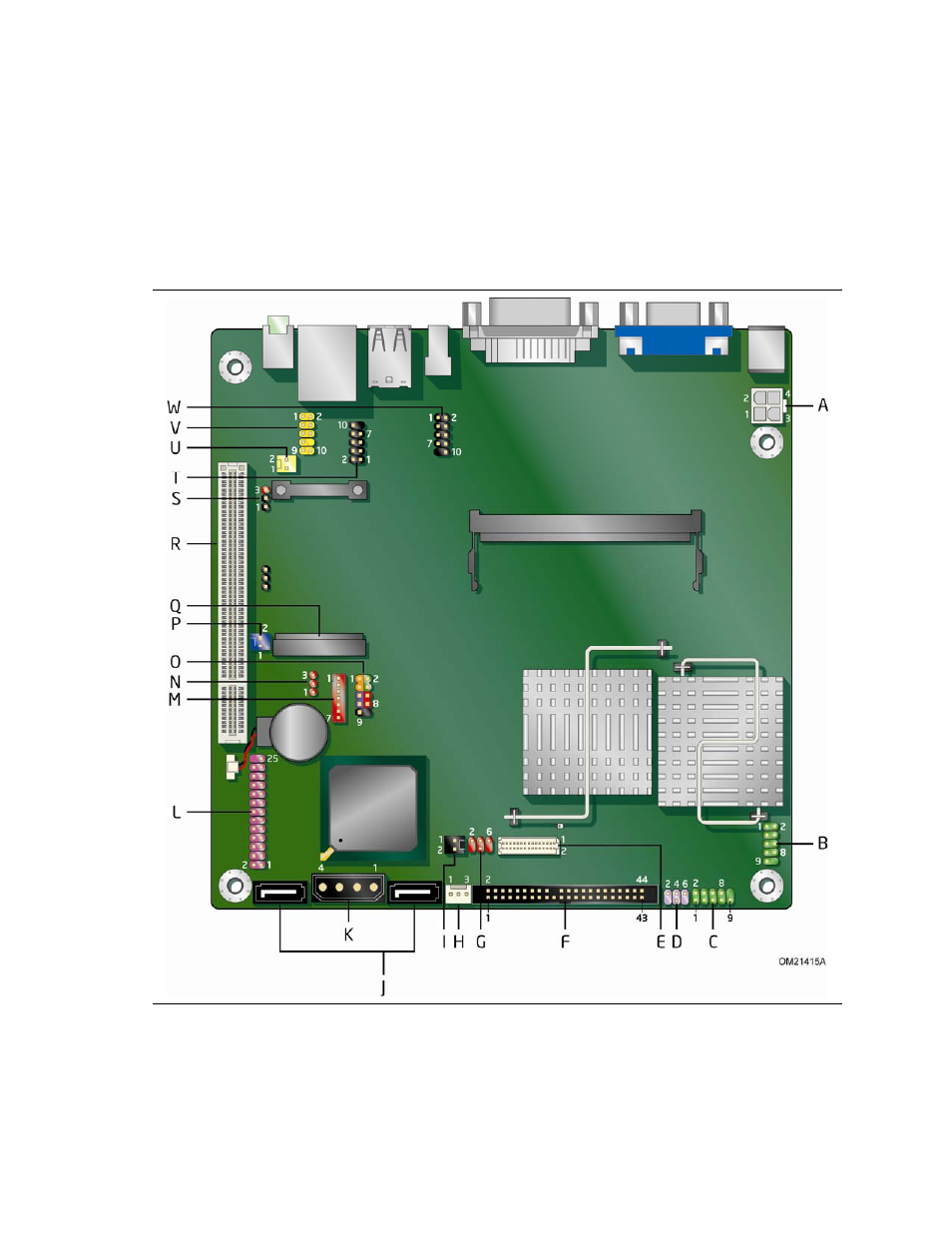

Figure 11. Internal Headers and Connectors
