Lippert Components Sofa Slideout System User Manual
Page 8

B

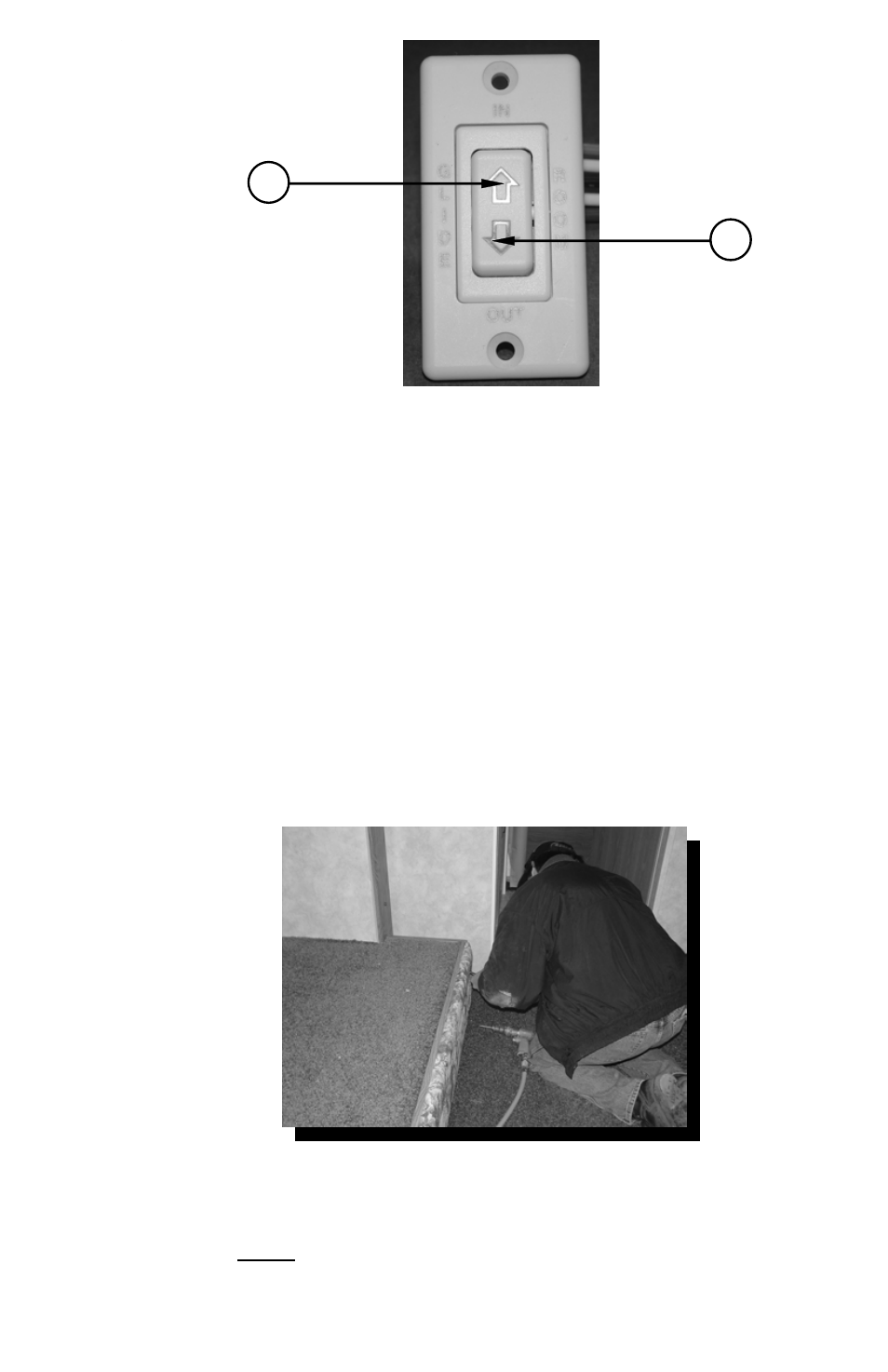

Fig. 5 - Slideout Switch and Switch Plate
C
1. Locate coach’s house battery and disconnect
the leads.
2. Access the slideout mechanism.
Note: This is an above floor style slideout. The
motor and slideout mechanism is located inside
the coach.
Fig. 6
MANUAL OPERATION
The ABF-24-711-18:1 is equipped with a backup auxiliary power (BAP) system
that allows you to extend or retract a room if the rooms do not move when switch
is pushed.
Check the troubleshooting guide on pages 10-13 for possible solutions before
using the backup auxiliary system.
8
WARNING!
Always disconnect battery from system prior to manually operating system. Failure
to disconnect battery can cause electricity to backfeed through the motor and cause
serious damage to the system as well as void the warranty.
