MOTOR BRAKE WIRE
(BROWN)
POSITIVE WIRE
(RED)
GROUND WIRE
(BLACK)
MANUAL OVERRIDE

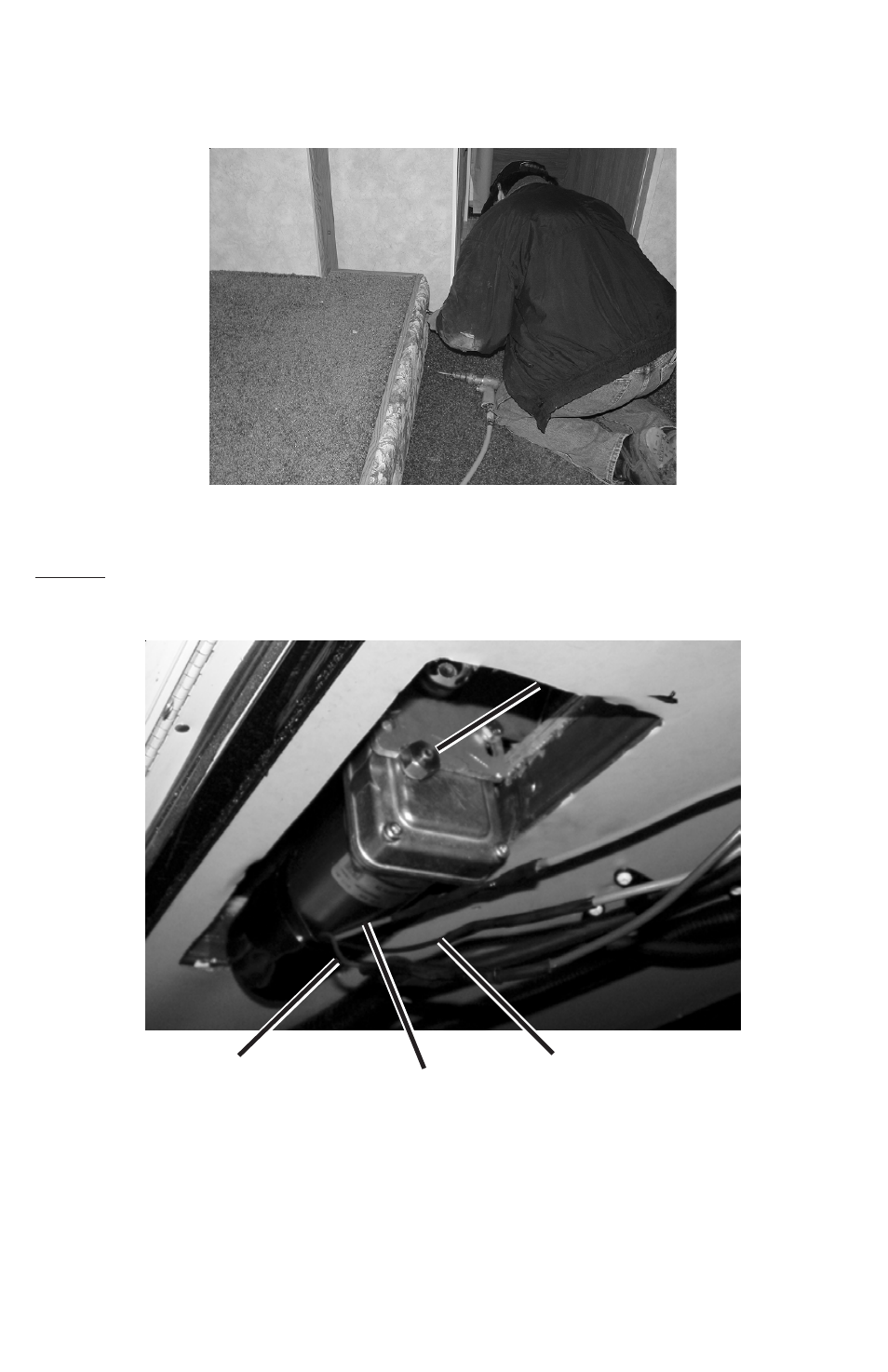

1. Accessing Out-Stop Assembly
NOTE: The slideout Out-Stop Assembly will be accesible from the INSIDE of
the unit.
The Slideout Motor and Mechanism is accessible from the OUTSIDE.
Fig. 7
Fig. 6
7
WARNING!
Always disconnect battery from system prior to manually operating system. Failure
to disconnect battery can cause electricity to backfeed through the motor and
cause serious damage to the system as well as void the warranty.
WARNING!
The gears can be stripped out if the room is manually retracted/extended to it’s
fullest extent and the operator continues to rotate manual override.
Any damage due to misuse of the Manual Override feature will disqualify any and
all claims to the Limited Warranty.
