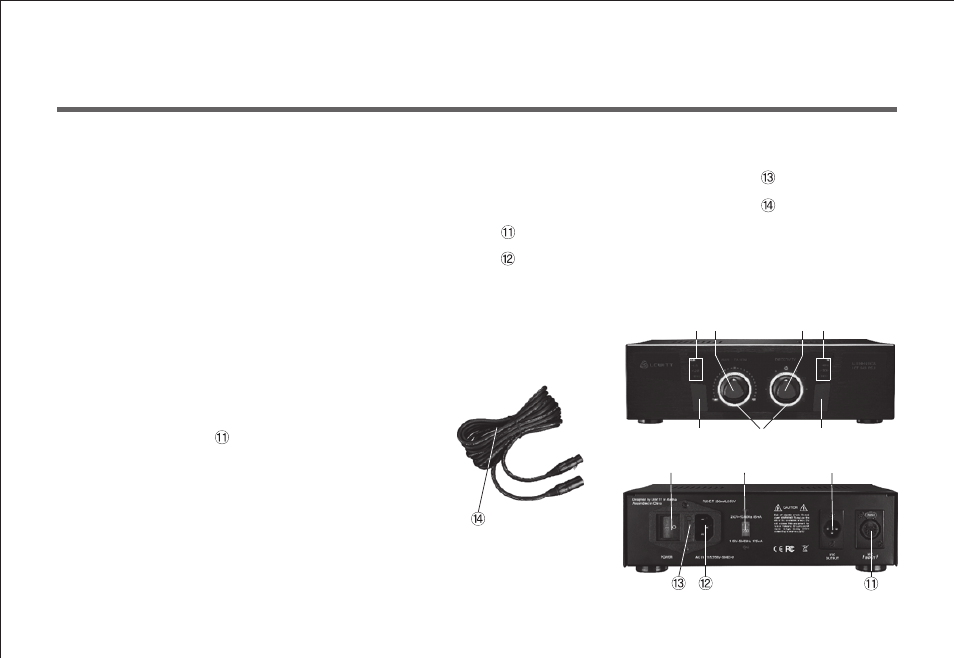

User-interface
② On / Off switch
③ Status indicator
④ Stageless amplification
selection,rotary knob
① Mains voltage selection switch ⑤ Polar pattern selection, jog-dial
⑥ High-pass filter indications
⑦ Noiseless high-pass filter
push button
⑧ Pre-attenuation indications
⑨ Noiseless pre-attenuation push button
⑩ 3-pin XLR socket
11-pin XLR socket
Mains socket
Fuse
11-pin audio cable
Getting started
■
Make sure that the Mains voltage selection ① switch is set
to the correct position.
■ Use the 11-pin audio cable to connect the microphone with
the 11-pin XLR socket on the backside of the PSU.
■ Use the 3-pin audio cable to connect your mixer with the
3-pin XLR socket ⑩ on the backside of the PSU.
■
Put the LCT 940 into operation by activating the On / Off
switch ② on the backside of the PSU.
LCT 940
Using the mic
⑨ ⑦ ③
⑧ ④ ⑤ ⑥
① ② ⑩
