Cybex 350A User Manual
Page 21
www.cybexinternational.com
21
ASSEMBLY
STEP 6
:

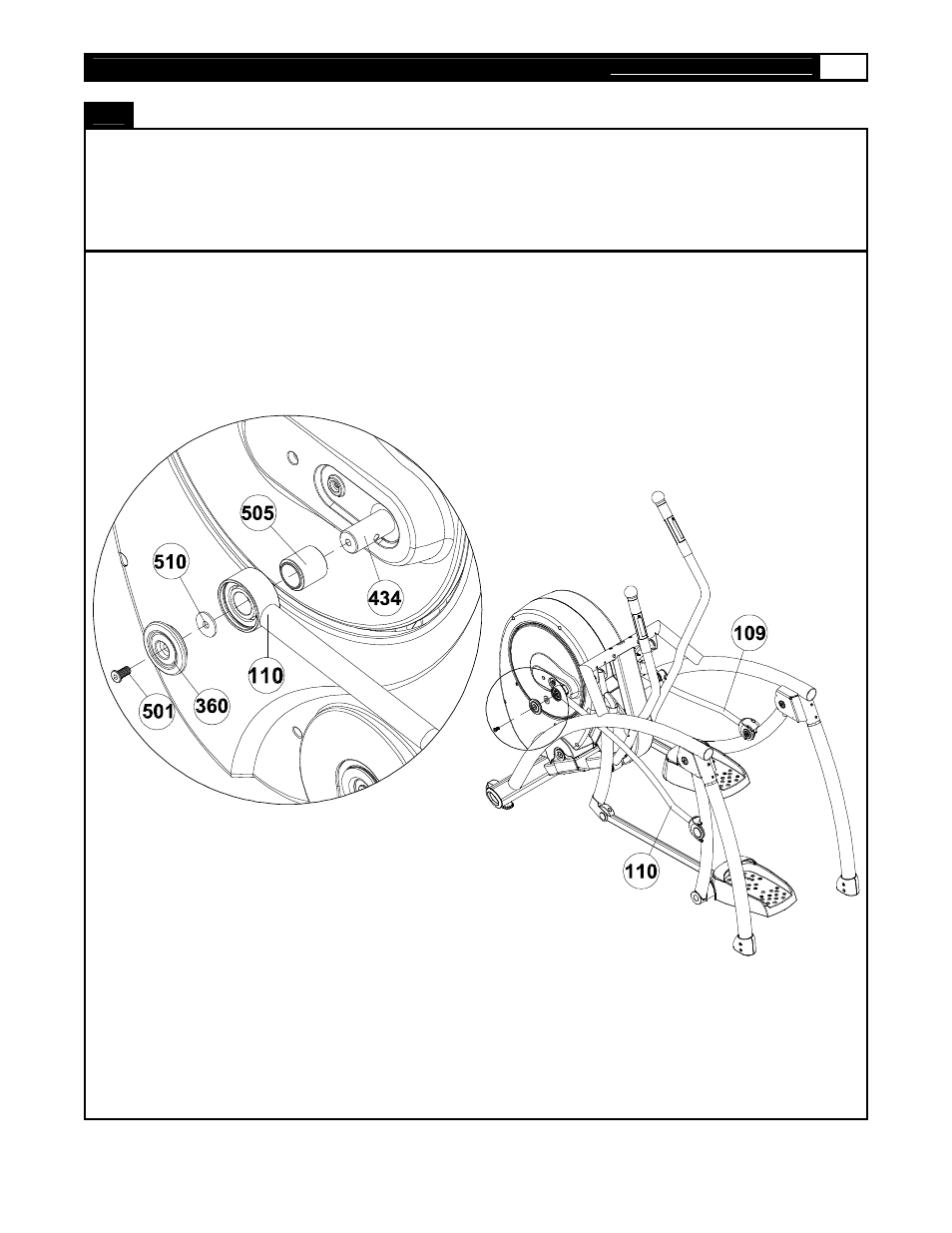

Rotate the Left Crank to the lowest position as shown below. Important Note: Failure to rotate the crank arm to
the proper position will not allow the unit to be assembled properly. Place the Crank Bushing (505) on the Left
Crank Shaft (434) and then
mount the Left Crank-Pedal Link Bar (110) on the left crank shaft, attach the Cap (360) on
and secure with M8x16 Flat Allen head bolt (501) as shown. Repeat the same procedure on the right hand side.
