Cybex 350A User Manual
Page 18
18
350A HOME ARC TRAINER
ASSEMBLY

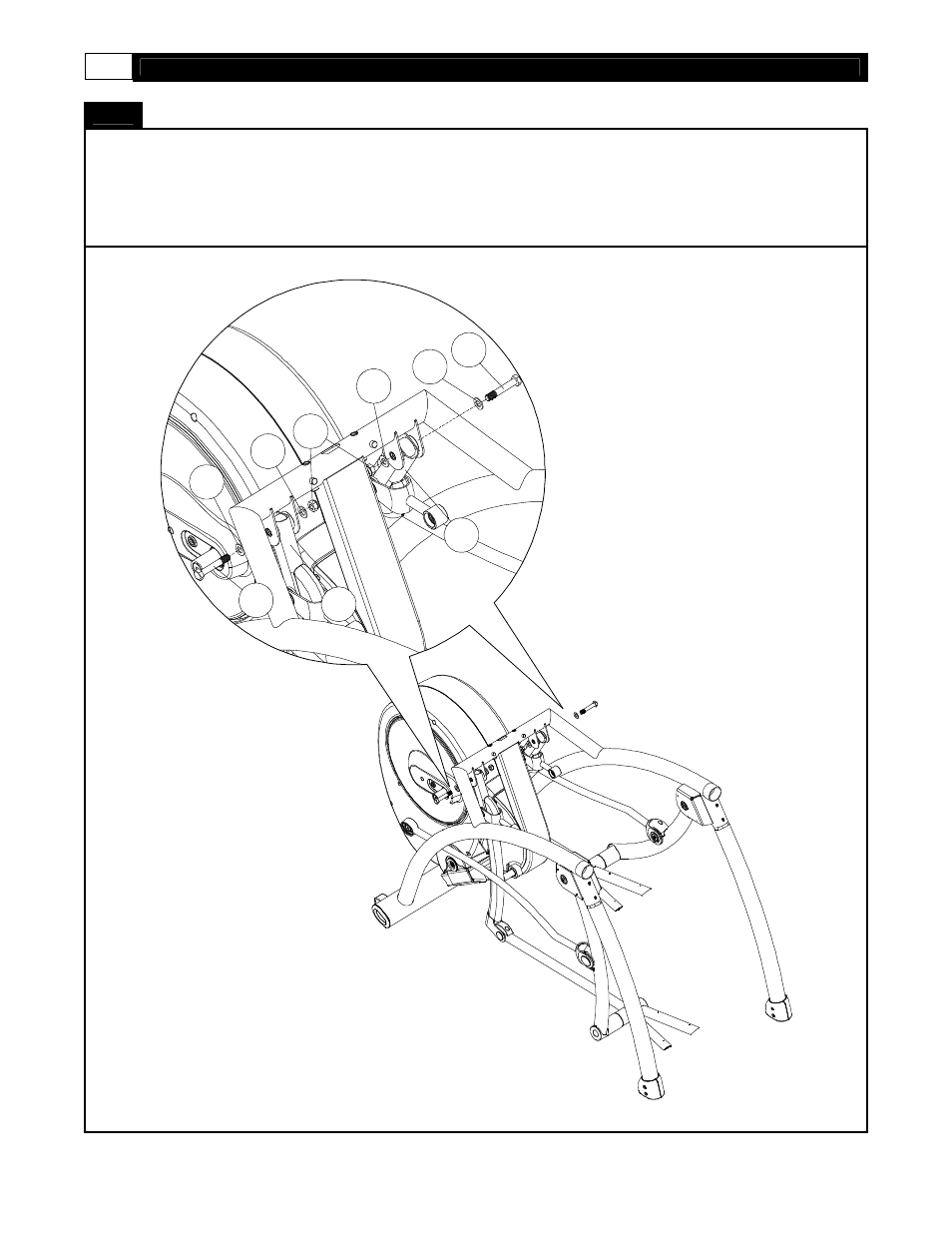

STEP 3:
Attach the Left Pedal Swing Arm (106) and Right Pedal Swing Arm (105) with the pivoting bracket on the main frame
as shown and secure with M12x70 shoulder bolt (504), 26x12xT3.0 washer (511) and M12 Nylon Nut (508) on each
side. Important Note: The shoulder bolt must be inserted into the pivoting bracket completely, no gap should exist
between the shoulder bolt head and the pivoting bracket. See Figure below.
504
511
512
512
105
106
504
508
511
