9

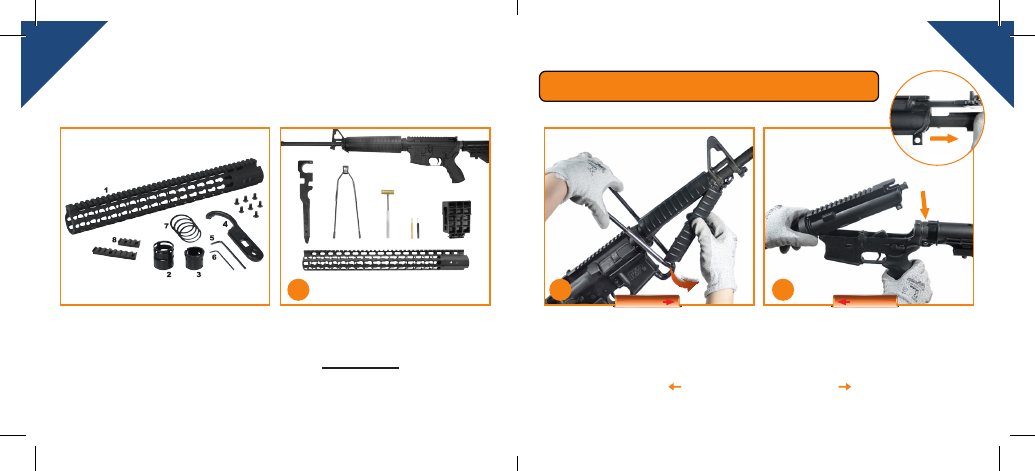

Set up a comfortable working environment.
Lay out the rifle, handguard rail and all the
included parts & tools. For proper installation
of this product, you also need to prepare the
following necessary tools: AR-15 combo
wrench, AR-15 handguard removal tool, a
hammer, a punch, AR-15 upper receiver vise
block, and a vise.
MODEL 4/15 SUPER SLIM FREE FLOAT
RAIL SYSTEM INSTALLATION GUIDE
1
1. Super Slim Keymod Compatible Rail
2. Barrel Nut
3. Locking Ring
4. Barrel Nut Wrench
5. 3mm Allen Wrench
6. 3/32” Allen Wrench
7. Spacer - 4Pcs
8. 4-Slot Picatinny Rail Section (.38” Saddle Height)
9. 8-Slot Picatinny Rail Section (.38” Saddle Height)
10. Barrel Nut Locking Screw - 7Pcs
9
10
10
Remove the original plastic handguard using
the handguard removal tool.
Remove the lower receiver with stock
assembly. Remove the bolt assembly from the
upper receiver (3.1).
Note: Barrel Direction: (Pointing Left) or (Pointing Right) Barrel Barrel
BARREL BARREL
Caution: Make sure firearm is not loaded. Remove magazine and
examine chamber. Use safe handling procedures at all times.
2 3
3.1
