Leapers Flip-to-Side 25mm/1 Tactical Flashlight Ring w/QD Mount (RG-FL25QS) User Manual
Quick detach/lock rings installation guide, Flip-to-side feature

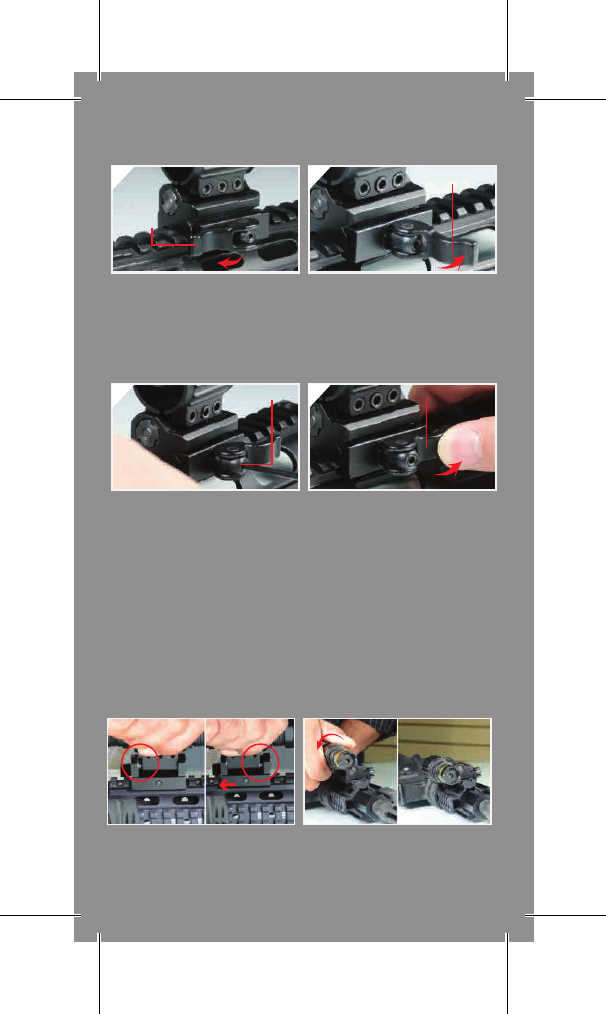

QUICK DETACH/LOCK RINGS
INSTALLATION GUIDE
Turn the Cam Lever leftward to
its unlocked position. Place
the QD mount on the Picatinny rail
at a desired position. Seat
the cross bolt at the bottom of
the ring into a selected
Picatinny slot.
Turn the Cam Lever from left to
right to begin locking the QD
mount on the rail, but do not
complete the locking motion,
leaving some travel distance to
allow for adjustment.
Use the included Allen wrench to
adjust the Hex Screw at the side
of the cam for proper tension and
fit against the rail. Adjust
clockwise to increase the tension
and tighten the clamping width.
Adjust counter-clockwise to
decrease the tension and
increase the clamping width.
The optimal tension is achieved
when the side plate first makes
contact with the Picatinny rail while
the Cam Lever still has enough
travel left for you to securely snap
into its locking position. Once you
achieve the optimal tension, push
the Cam Lever all the way to
the right for a positive lock onto the
rail. You may repeat Step 2 and 3 if
needed to find the best clamping
tension and locking position for your
mount on the rail.
Cam
Lever
Cam Lever
Hex Screw
Cam Lever
FLIP-TO-SIDE FEATURE
To flip the ring to its alternate
position, firmly grasp the complete
lighting device mounted with the
ring and pull it backward against
the spring-loaded mounting base.
Maintain force on the ring and flip
the ring sideways until it snaps into
place. Use the same method when
flipping the ring upward.
1
2
3
4
