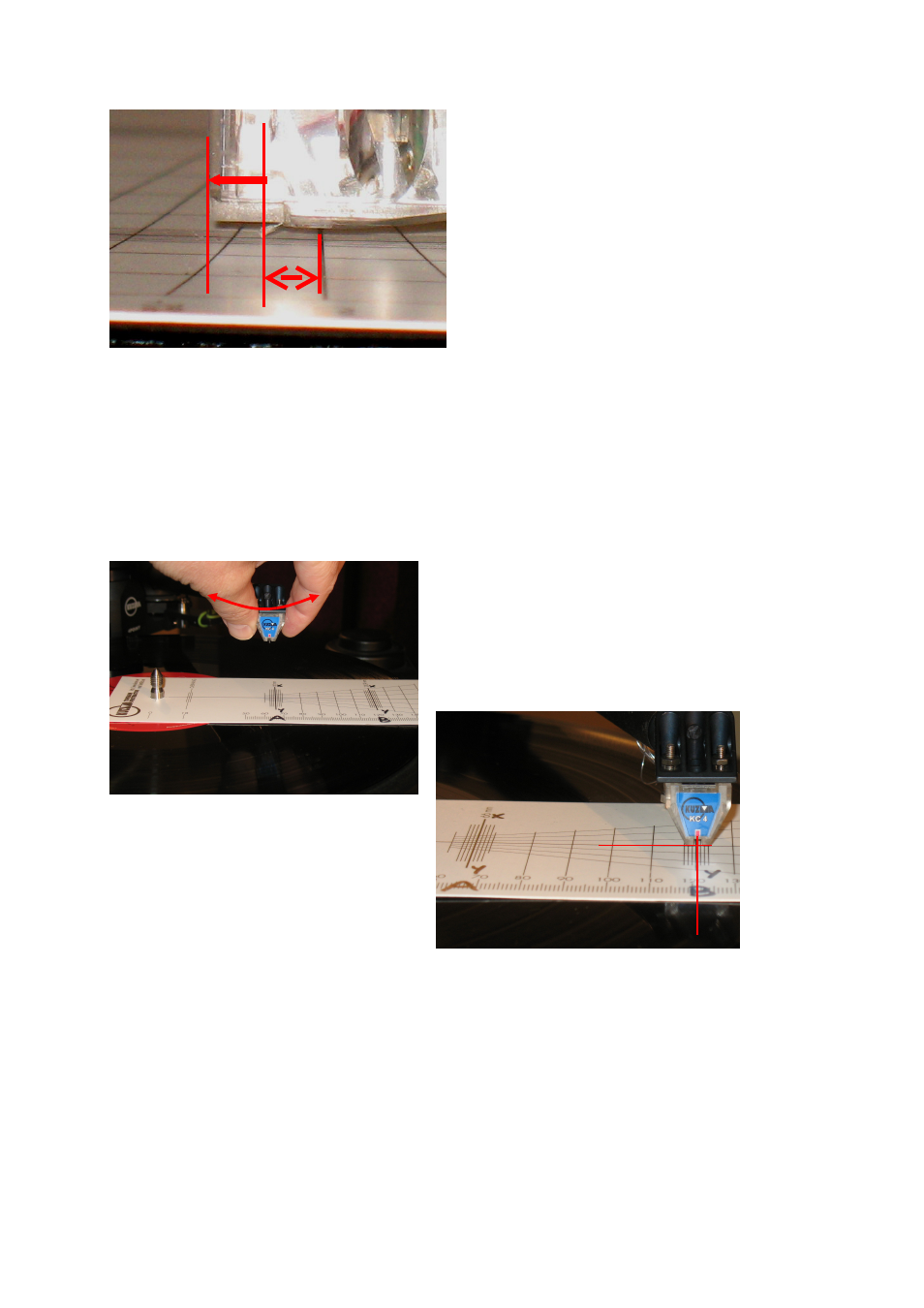

Fig.16 Stylus tip is in front of zero point B.
10. Now rotate protractor and again position stylus at zero point A as described in 5 and 6
above, ensuring that the position of the cartridge in the slots alongside is not changed but only
rotated for alignment of the cantilever in zero point A. (Fig.17)
Fig.17 Rotation at A
11. Recheck alignment of the cantilever at zero
point B. If cantilever is not aligned here, rotate
protractor to find where on line “x- y” the
cantilever is aligned again. (Fig.18&15)
Fig. 18 Alongside line “X-Y” alignment at B
If the stylus is still in front of zero point B on the line “x-y” as before, but nearer to point B,
then again pull cartridge slightly forward for distance “S” and repeat the whole process by
aligning at zero point A until the stylus will be at zero point B.
If stylus end up behind the zero point B on line “x-y” then move cartridge in opposite
direction to before, backwards and realign it at zero point A.
If stylus is still behind the B point, the cartridge should be pushed back and realign at zero
point A and realigned again at zero point B.
12. Continue until the stylus is in alignment at both points.
