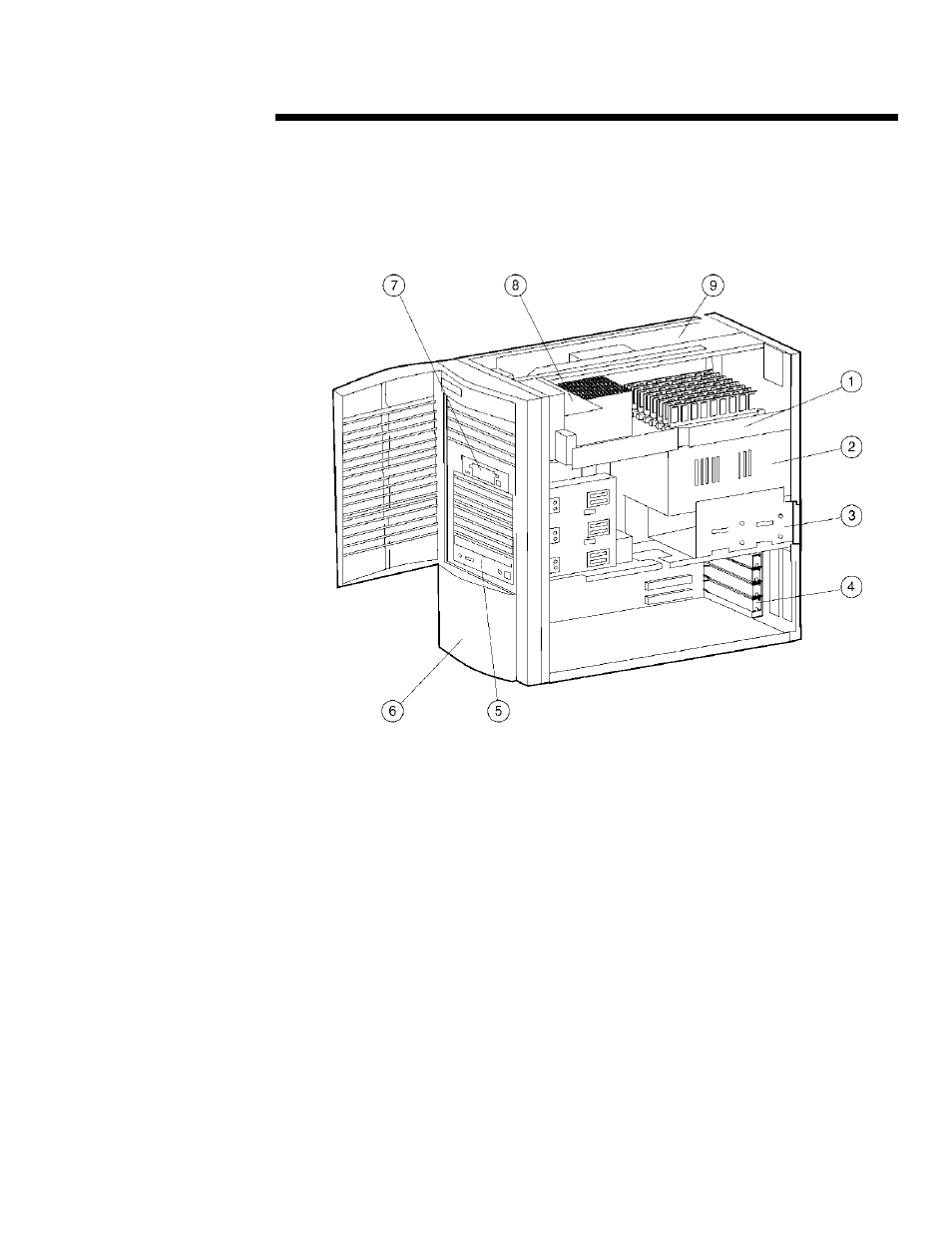

Compaq AlphaStation XP1000
1. CPU and memory daughter-card latch
2. 400-watt auto-sensing power supply
3. Internal hard drive cage (hinged)
4. PCI and ISA expansion slots
5. 32X Max CD-ROM drive
6. Front bezel
7. 1.44-MB diskette drive
8. Fan pipe (directs air to CPU heatsink area)
9. Main logic board
A
T
A G
L A N C E
AlphaStation XP1000 Systems
include:
•
Tower enclosure with Alpha
21264 (EV6) 500-MHz CPU or
Alpha 21264A (EV67) 667-MHz
CPU with 64-KB data cache,
64-KB instruction cache, and
4-MB Level 2 cache
•
Five Expansion slots on two
buses: Two 64-bit PCI slots, two
32-bit PCI slots, one PCI/ISA
32-bit combination slot
•
Two memory option banks, four
DIMM slots per bank, maximum
2-GB memory
•
Six Storage bays: One diskette
drive bay, one CD-ROM drive bay,
two 5.25” x 1.6” removable media
bays, two 3.5” x 1” hard disk drive
bays
•
400W power supply
•
Onboard wide UltraSCSI adapter;
PCI single-channel wide Ultra-2
SCSI (LVD) adapter optional
(included in all 667-MHz
packaged systems)
•
Onboard 16-bit Soundblaster
compatible audio (not supported
under OpenVMS)
•
Onboard 10/100 Ethernet
(Twisted pair); ThinWire and Thick
wire optional
•
Integrated I/O comprising parallel
port, two serial ports, audio in,
audio out, headphone,
microphone, mouse, and
keyboard ports
•
1.44 -MB diskette drive
•
600-MB 32X CD-ROM drive
•
Factory Installed Software:
Windows NT, Tru64 UNIX, or
OpenVMS, or Linux-Ready (no
operating system installed)
•
Protected by Compaq Services,
including a three-year on-site
limited warranty
