Control panel

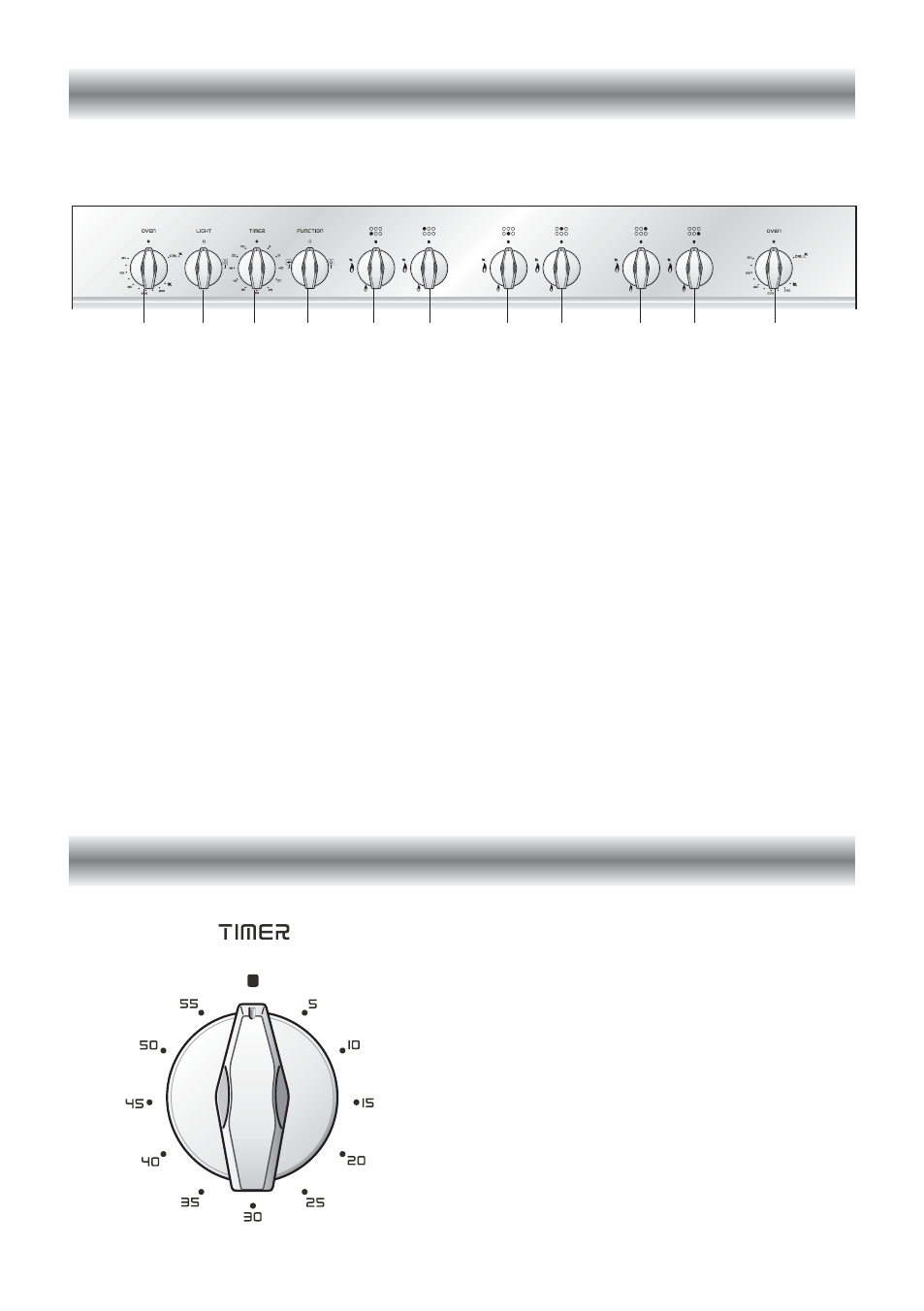

Fig. 3
CONTROL PANEL - Controls description
1. Left gas oven/gas grill control knob
2. Left oven light control knob
3. Minute counter
4. Right oven rotisserie / light control knob
5. Front left burner control knob
6. Rear left burner control knob
7. Front central burner control knob
8. Rear central burner control knob
9. Rear right burner control knob
10. Front right burner control knob
11. Right gas oven/gas grill control knob
Minute counter
Minute counter
The minute counter is a timed acoustic
warning device which can be set for a
maximum of 60 minutes.
The knob (Fig. 4) must be rotated
clockwise as far as the 60 minute
position and then set to the required
time by rotating it anticlockwise.
Fig. 4
1
4
5
6
7
8
9
10
11
3
2
