FASTENING THE
APPLIANCE
Each ceramic griddle is supplied with a
set of tabs and screws fasten it on
units.
✓ Cut the unit (as shown in figure
3).
✓ Stretch gasket “D” over the edge of
the hole made, being careful to
overlay the junction edges.
✓ Turn the ceramic griddle over and
put tabs “A” into the mountings,
only tighten screws “B” a few turns
(fig. 6).
Make sure that the tabs are mounted
correctly as shown in the figures.
Turn the tabs so that the cooktop
can be put into the hole.
✓ Put the cooktop into the hole cut
into the unit and position it
correctly.
✓ Put tabs “A”; into place, tooth “C” of
the tabs should go into the hole (fig.
6).
✓ Tighten screws “B” until the cooktop
is completely secured.
✓ Using a sharp tool cut off the part of
gasket “D” which protrudes from the
cooktop.
30
mm min.
40
mm max.
B
D
A
C

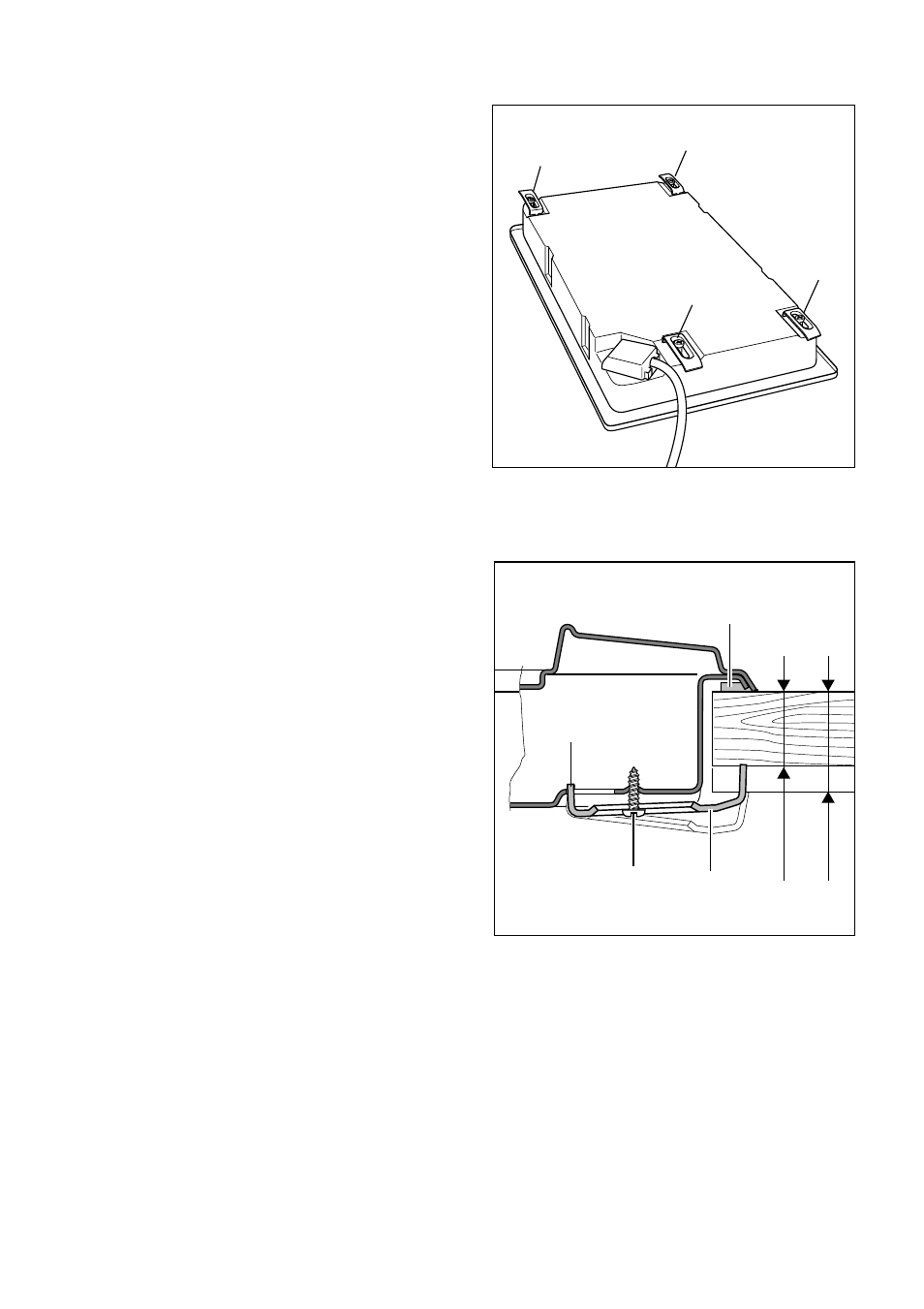

Figure 5
Figure 6
