REPAIRS
Replacing the supply cable
Turn the cooktop over and unhook the
terminal board cover by inserting a
screwdriver into the two hooks “A”.
Open the cable gland by unscrewing
screw “F”, unscrew the terminal screws
and remove the cable.
The new supply cable, of suitable type
and section, is connected to the termi-
nal board following the diagrams
shown below.
SECTION OF THE SUPPLY
CABLE
Use H05RR-F cables
230 V ~ 50/60 Hz
section: 3 x 1 mm 2
or
3 x 1,5 mm 2
230 V
PE
N L
1
(L )
2
A
F
Before carrying out any work on
the electrical section of the appli-
ance, it must be disconnected
from the mains.
C o n n e c t i o n t o a g o o d e a r t h
w i r i n g s y s t e m i s a b s o l u t e l y
essential.
The manufacturer accepts no
responsibility for any inconve-
nience caused by failure to com-
ply with this rule.

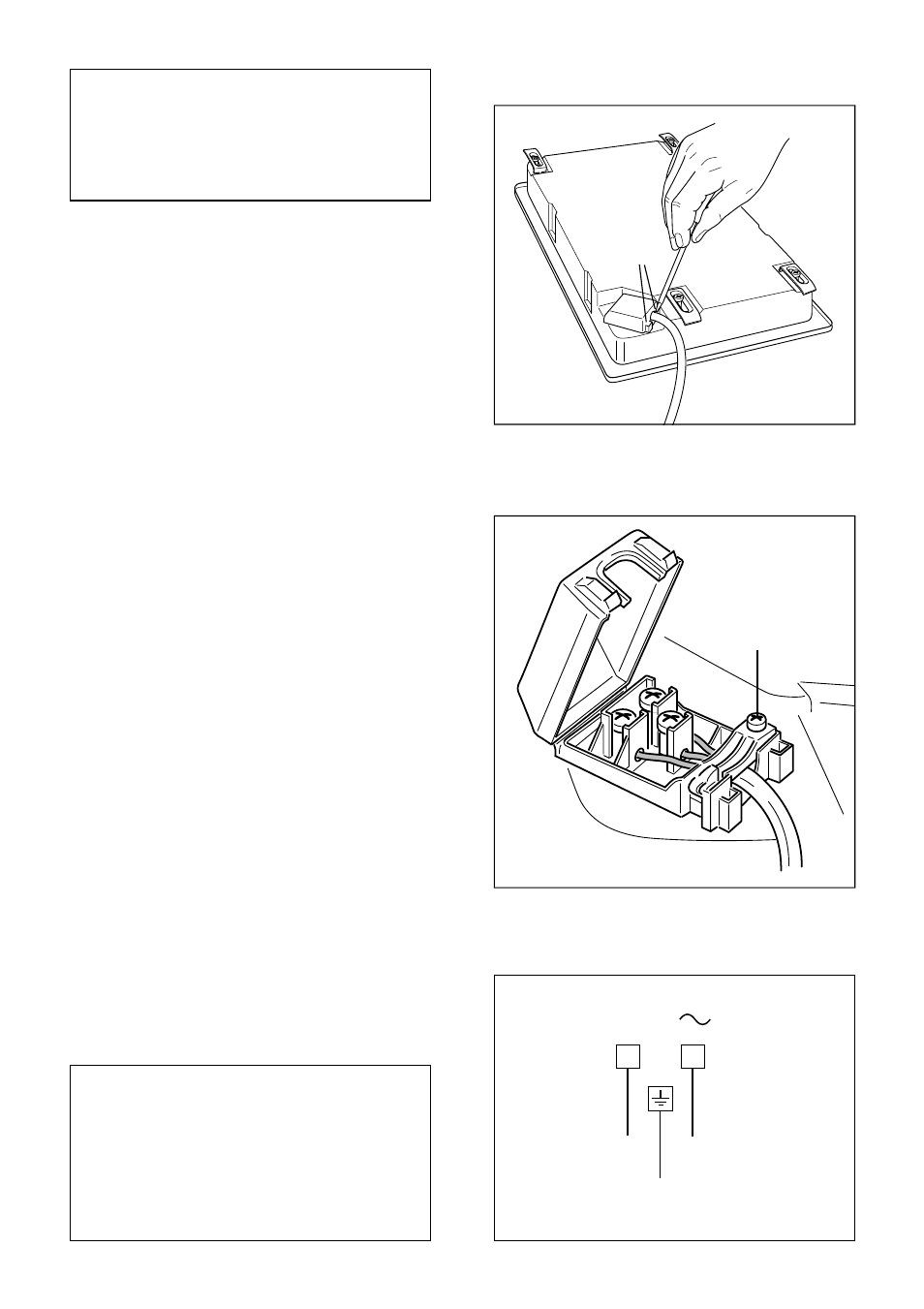

Figure 7
