LEGEND

FPS — Freeze Protection Switch
HPS — High-Pressure Switch
LPS — Low-Pressure Switch

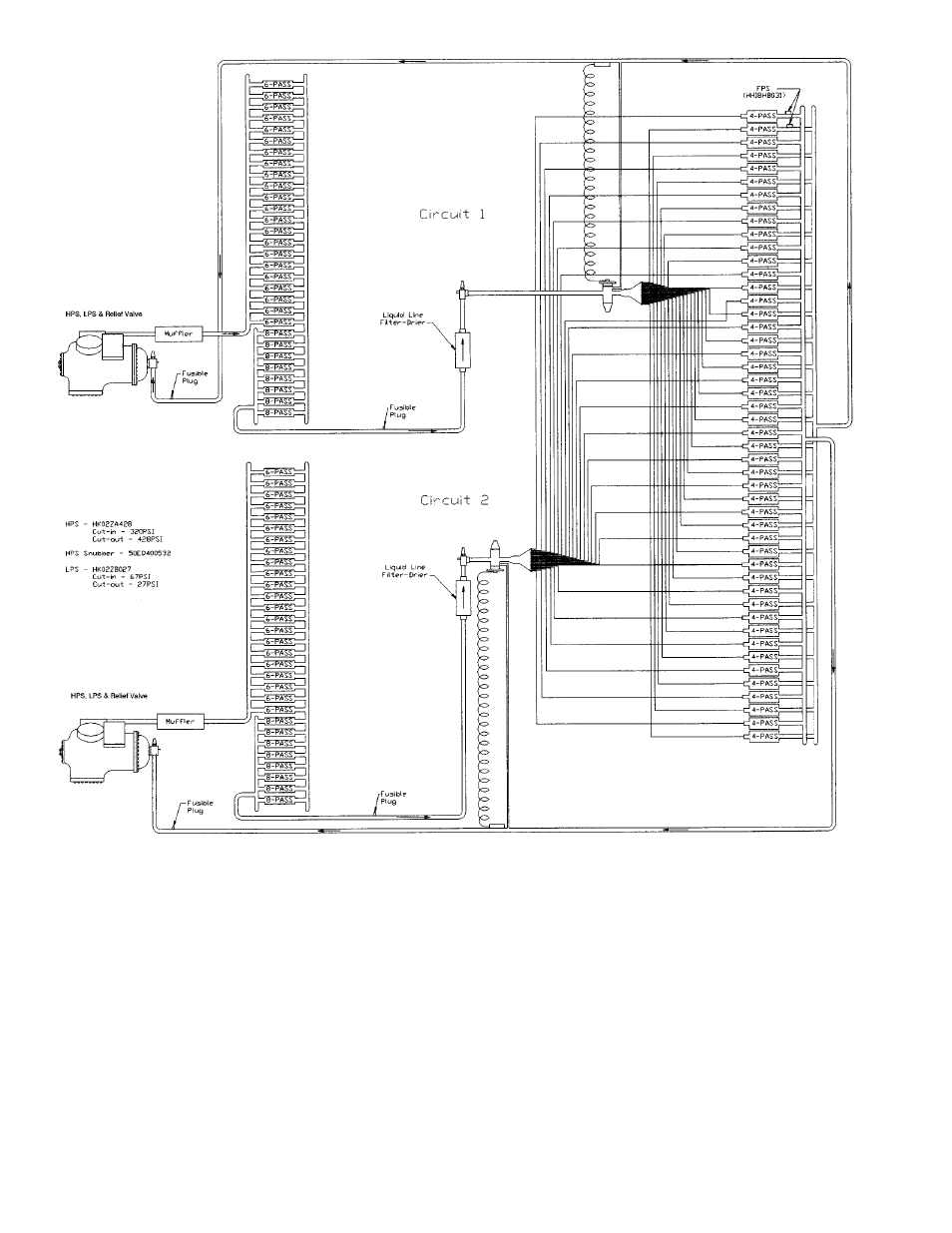

Fig. 63 — Typical Refrigerant Circuiting (48EJ,EK,EW,EY048)
