Page 24: Installation
24

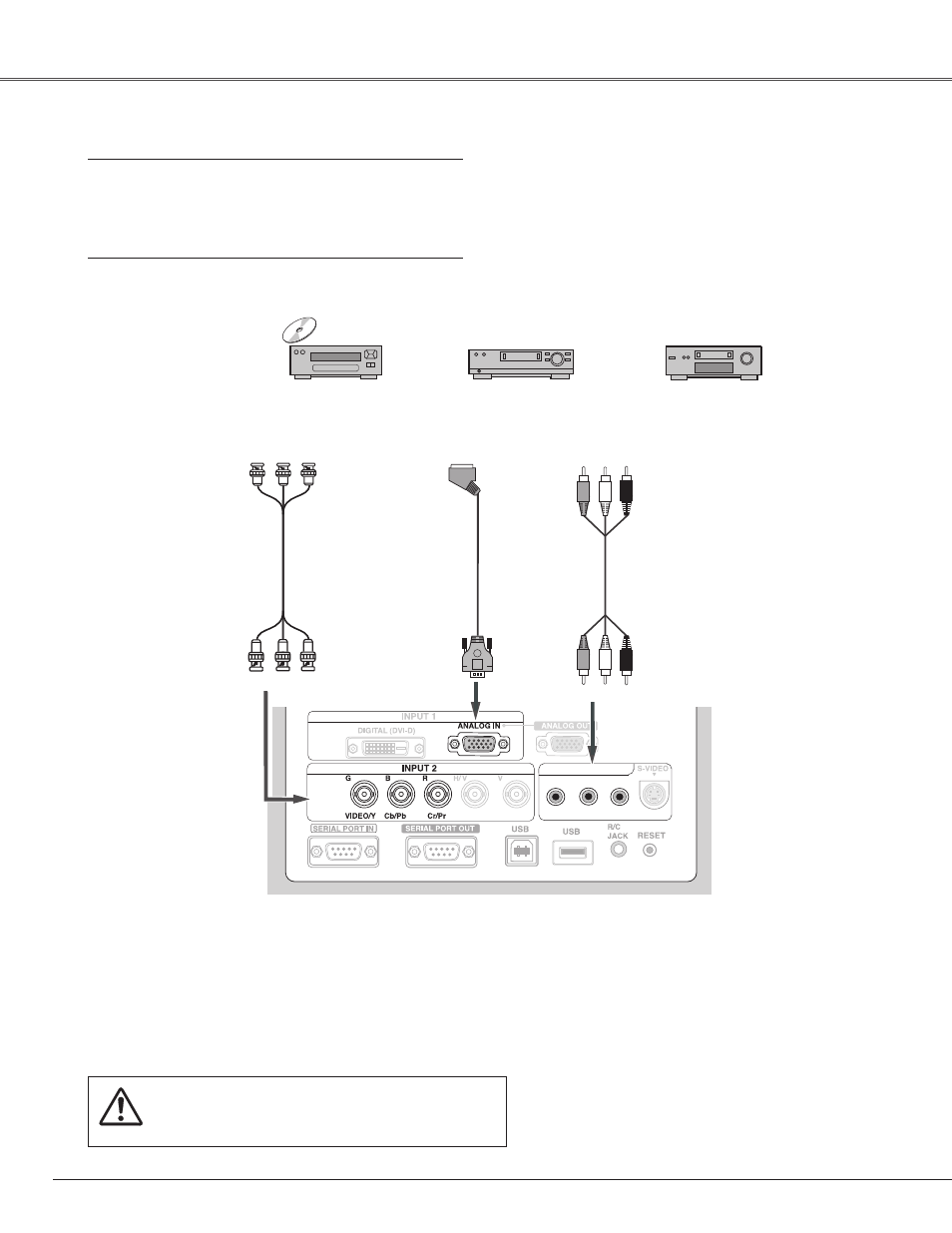

Connecting to Video Equipment (Component and RGB Scart)
INPUT 3
VIDEO/Y Cb/Pb Cr/Pr
Cables used for connection
q BNC Cable
w Scart-VGA Cable
e Component Cable
✽
Cables are not supplied with the projector.
Note:
Unplug the power cords of both the projector and external equipment
from the AC outlet before connecting the cables.
RGB Scart
21-pin Output
w
q
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Component
Video Output
(Y, Pb/Cb, Pr/Cr)
ANALOG IN
Y Cb/Pb Cr/Pr
Y Cb/Pb Cr/Pr
e
Installation
