Note:

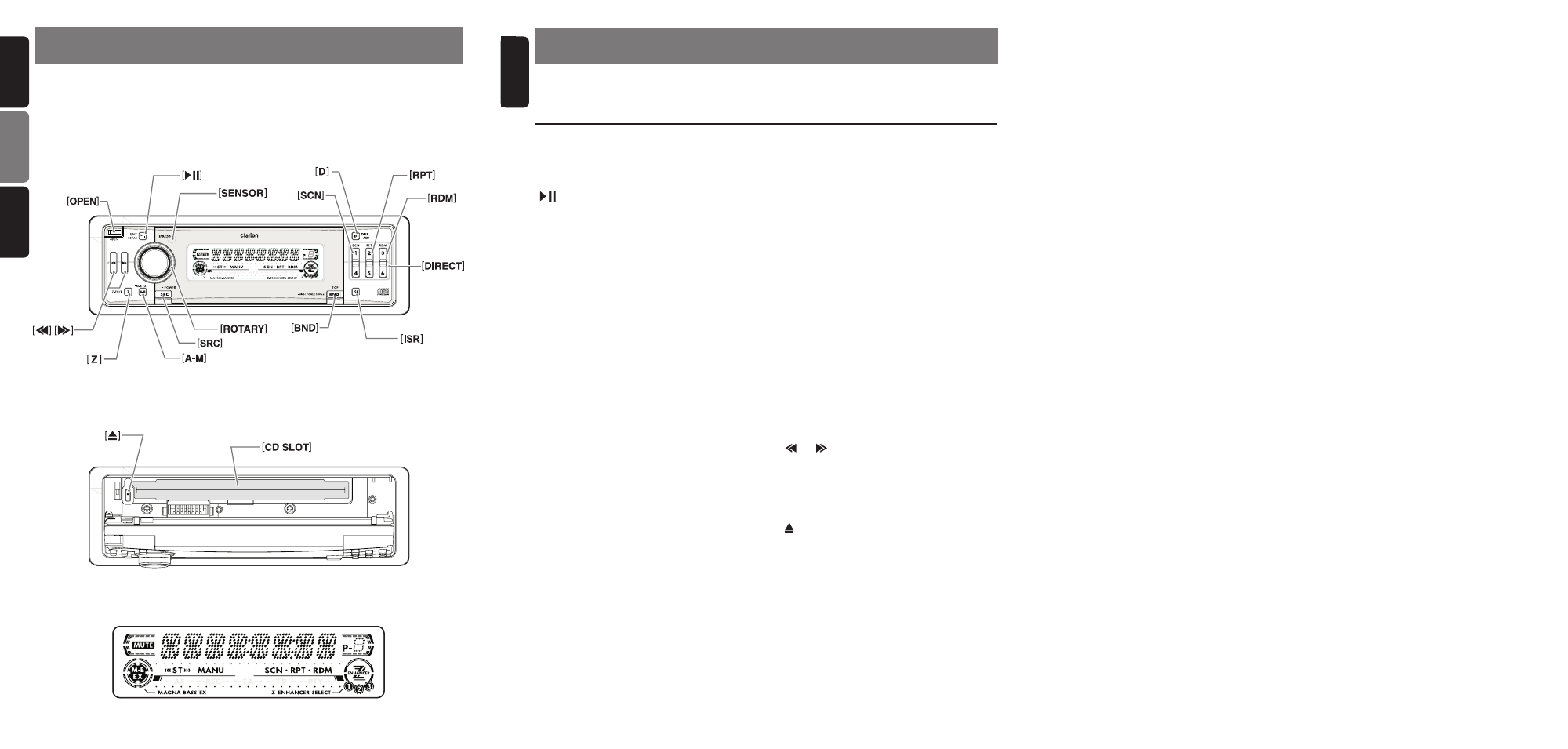

• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3.
Names of the Buttons and their Functions
3. BUTTON TERMINOLOGY
DB256
4
DB256
3
[ ] button
• Plays or pauses a CD while in the CD mode.
• Performs preset scan while in the radio mode.
When the button is pressed and held, auto store
is performed.
[D] button
• Switch the display indication (Main display, clock
display).
[ ] button
• Ejects a CD when it is loaded into the unit.
[SRC] button
• Press the button to turn on the power.
Press and hold the button for 1 second or longer
to turn off the power.
• Switches the operation mode among radio and
CD mode.
[SCN] button
• Performs scan play for 10 seconds for each track
while in the CD mode.
[RPT] button
• Plays repeatedly while in the CD mode.
[RDM] button
• Performs random play while in the CD mode.
[DIRECT] button
• Stores a station into memory or recall it directly
while in the radio mode.
[ISR] button
• Recalls ISR radio station in memory.
• Press and hold for 2 seconds or longer: Stores
current station into ISR memory (radio mode
only).
[BND] button
• Switches the band, or seek tuning or manual tun-
ing while in the radio mode.
• Plays a first track while in the CD mode.
[ROTARY] knob
• Adjust the volume by turning the knob clockwise
or counterclockwise.
• Use the knob to perform various settings.
[A-M] button
• Press and hold the button for 1 second or longer
to switch the MAGNA BASS EX on/off.
• Use the button to switch to the audio mode (bass,
treble, balance, fader)
[Z] button
• Use the button to select one of the three types
of sound characteristics already stored in
memory. (Z-Enhancer)
[ ], [ ] button
• Selects a station while in the radio mode or se-
lects a track when listening to a CD.
• Press and hold the button for 1 second or longer
to switches the fast-forward/fast-backward.
[CD SLOT]
• CD insertion slot.
[OPEN] button
• Deeply push in [OPEN] button to unlock the flip
down panel.
[SENSOR] button
• Receiver for remote control unit.
• Operating range: 30° in all directions.
Note : Be sure to unfold this page and refer to the front diagrams as you read each chapter.
