Each log is marked with a number. These numbers will help you identify the log when
installing. It is very important to install these logs exactly as instructed. Do not modify logs.
Only use logs supplied with heater.
1. Slide front log (#1) into place behind front burner. Make sure tabs at bottom of log are

behind front burner (see Figure 17).

2 . Slide rear log (#2) into place behind rear burner (see Figure 18).
3. Place left front branch (#4) and right front branch (#5) (24" and 30" models) or front

branch (#4) (18" model) into place (see Figure 19). Make sure notches on bottom rest on
grates.

4. Add lava rock around base of heater.

INSTALLING

Continued

WARNING

Failure to position the parts in accordance with these diagrams or
failure to use only parts specifically approved with this heater may
result in property damage or personal injury.

INSTALLING LOGS

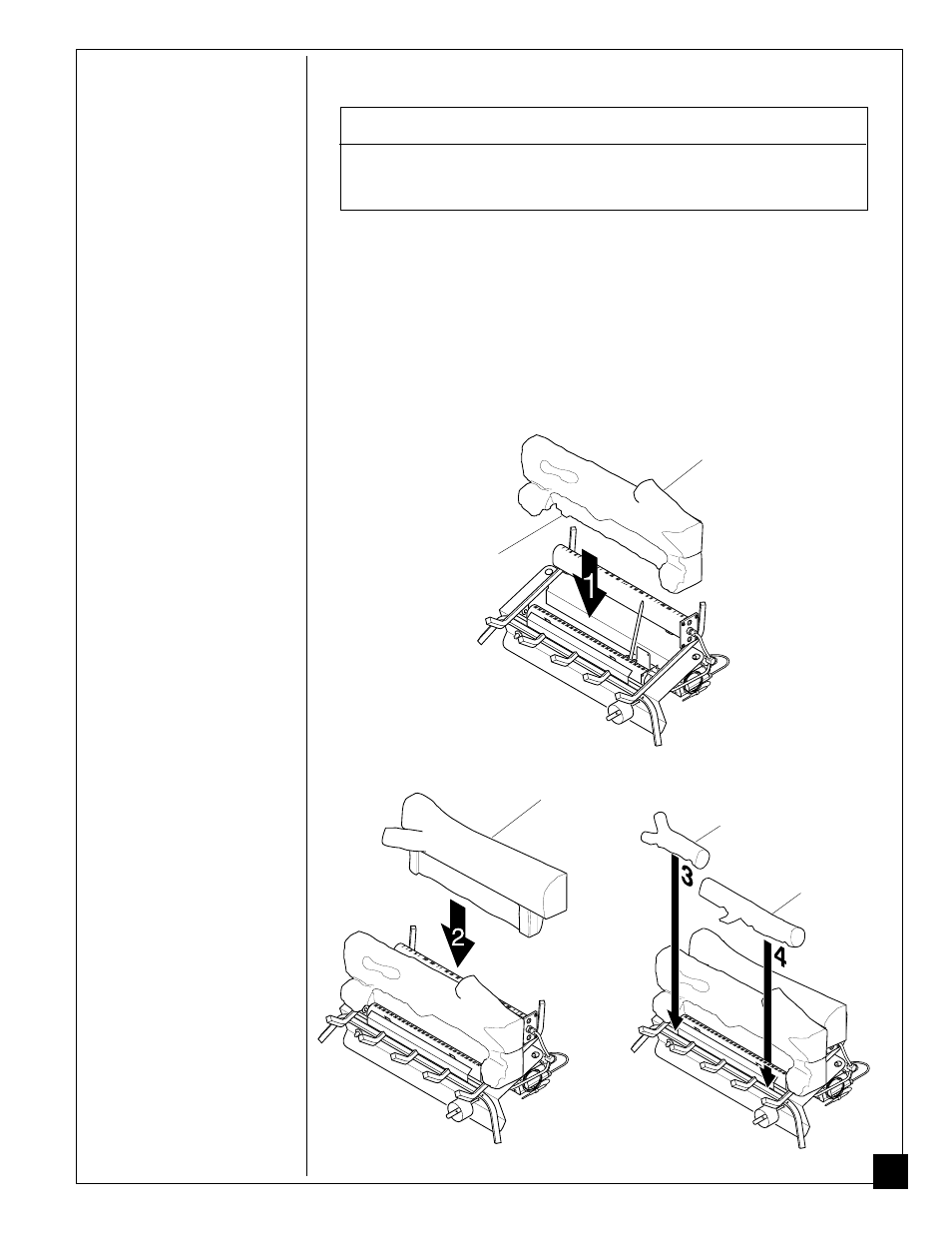

Figure 18 - Installing Rear Log

Tab

Front Log (#1)

Figure 17 - Installing Front Log

Rear Log (#2)

Figure 19 - Installing Rear Log

Left Branch (#4)

Right Branch (#5)
