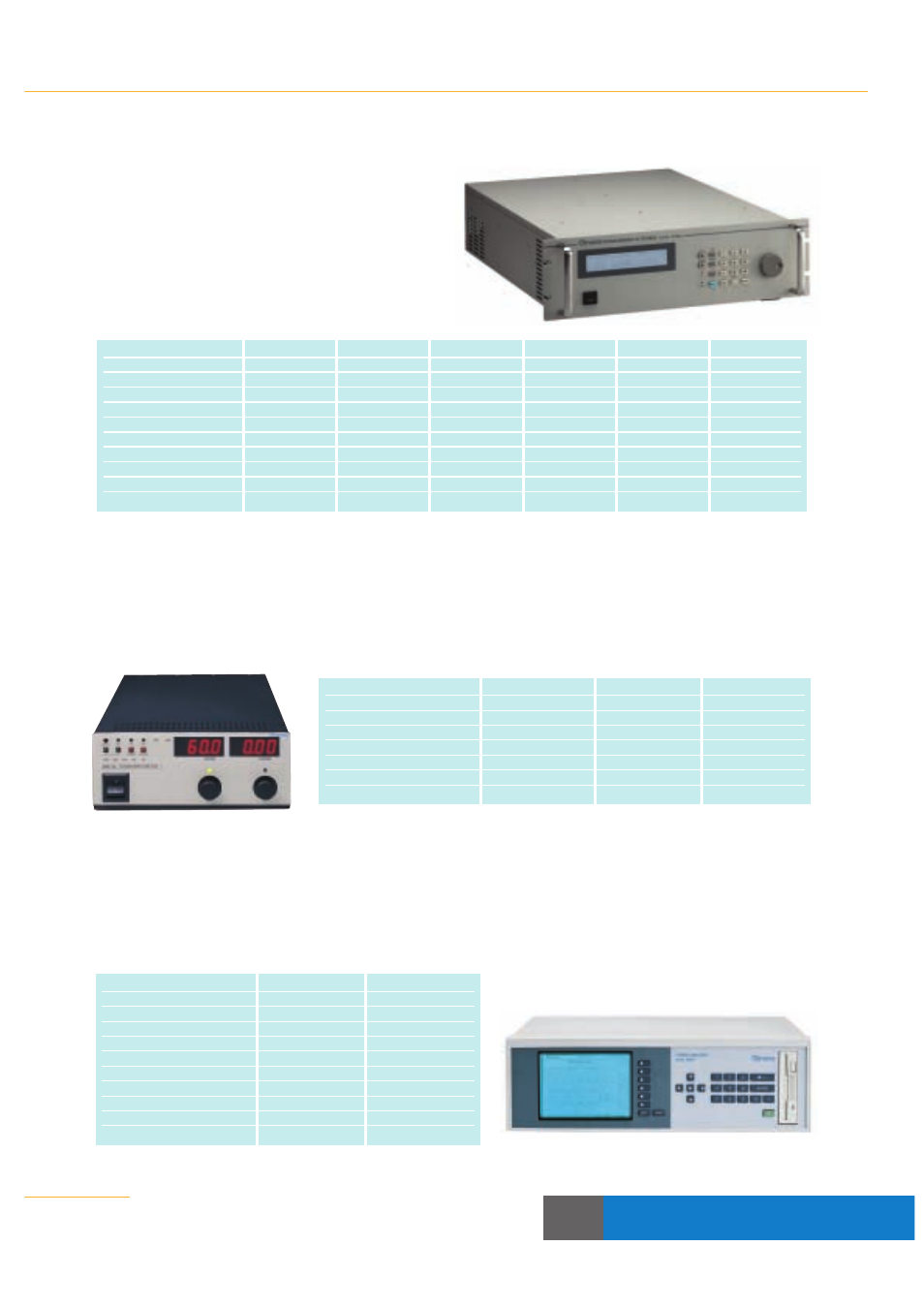

Model All specifications are subject to change without notice.
AC power source
Chroma power supply auto test system model 8000 supports
all Chroma Model 6100, 6400, 6500, 61500 and 61600
series AC power supplies. They provide stable and clean AC
or DC (Model 61500/61600 series) output and power line
disturbance simulation for advanced power supply input
characteristic testing.
MODEL 6100 series 6400 series 6500 series 61500 series 61600 series 61700 series
Power rating 600-2000VA 375-9000VA 1200-9000VA 500-4000VA 500-4000VA 1500-12000VA
Voltage range 0-300V 0-300V 0-300V 0-300V 0-300V 0-300V
Output phase 1 phase 1 or 3 phases 1 or 3 phases 1 or 3 phases 1 or 3 phases 3 phases
DC output No No No Yes Yes Yes
Output measurement Yes Yes Yes Yes Yes Yes
Harmonic measurement No No No Yes No No
Waveform simulation No No Yes Yes No No
Programmable impedance No No No Yes No No
Harmonic synthesis No No Yes Yes No No
Inter-harmonic synthesis No No No Yes No No
DC power source
Chroma power supply auto test system model 8000 supports all Chroma Model 6200, 6200K and 6200F series DC power sources
which may be used as line-in or OVP sources.
MODEL 6200 series 6200K series 6200F series
Power rating 60-1000W 1000-3000W 1200-12000W
Voltage range 0-5V/ 150V 0-5V/ 600V 0-5V/ 600V
Programmable current limit Yes Yes Yes
Programmable OV point Yes Yes Yes
Analog programming Yes Yes Yes
Remote sensing Yes Yes Yes
Line-drop compensation 5V 1V 5V
Power analyzer
Chroma power supply auto test system model 8000 can also support all Chroma Model 6630 and 6632 series Power Analyzer. They do
not only provide traditional high precision power measurement, but also the voltage/current harmonics measurements defined in IEC
and EN regulation.
MODEL 6630 series 6632 series
NO. of input module 1 to 3 1 to 3
Power measurement range 48 ranges 48 ranges
Voltage measurement range 6 ranges 6 ranges
Current measurement range 8 ranges 8 ranges
Front panel display Yes No
Front panel editable Yes No
Harmonics measurement Yes Yes
Flicker measurement Yes No
Waveform measurement Yes Yes
Build-in regulation limit Yes Yes
