Switching Power Supply ATS
High Performance Hardware Devices
1
2
7
6
5
4
3
9
8
11
10

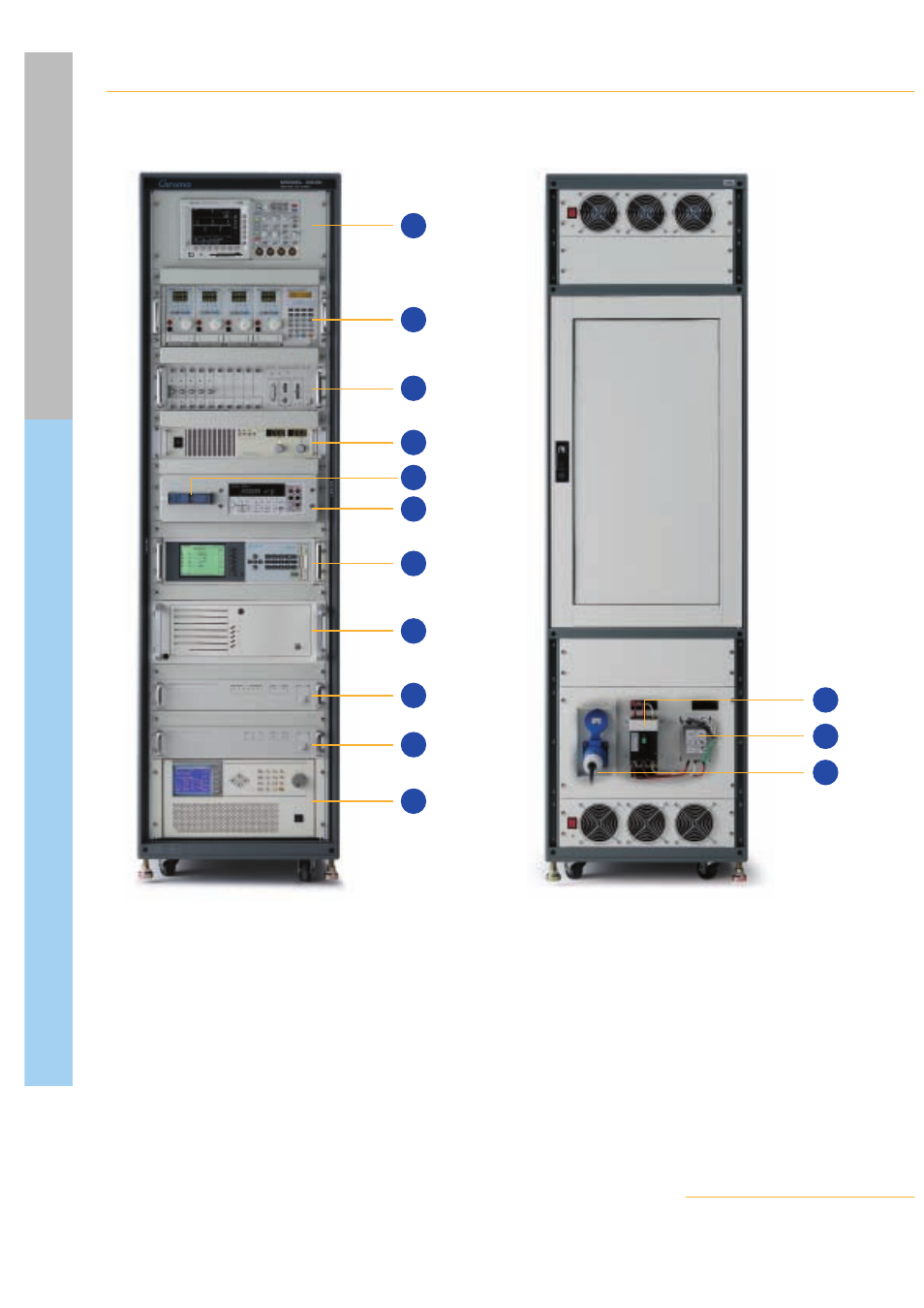

1.
Digital Storage Oscilloscope :
TDS-220/ TDS-3000 series; other types or brands of DSO supported upon request
2.
Electronic Load :
Model 6300 / 6310 / 63200 / 6340 series Electronic Load
3.
Timing / Noise Analyzer :
Model 6011
4.
DC Source :
Model 6200 / 6200K / 6200F
5.
Connection Panel :
Interface to UUT
6.
Digital Multi-Meter :
HP-34401A; Other types or brand of DMM supported upon request
7.
Power Analyzer :
Model 6630 / 6632 series Power Analyzer
8.
System Controller :
Industrial PC
9.
OVP / Short Circuit Tester :
Model 6012 / 80612
10. ON / OFF Controller :
Model 6013 / 80613
11. AC Source :
Model 6100 / 6400 / 6500 / 61500 / 61600 series AC Source
12. System Power Inlet :
1Ø 3W / 30A, 60A selectable
13. Breaker :
30A / 60A selectable with emergency stop control
14. EMI Filter :
30A
* Other devices supported upon request
