The Decoder Amplifier can be placed
on the desktop, a shelf or any site
that makes the controls convenient.
The Power Adapter cord must be
able to reach from the Decoder
Amplifier back panel to your AC
power receptacle.
Place the Decoder Amplifier on a
hard, flat surface.
There are ventilation slots on the
Decoder Amplifier’s enclosure. Do not
block these ventilation slots by
placing materials over them.
Model Variations
There are two models of the Decoder
Amplifier.
If you have purchased the
horizontal version please ignore the
following sections. Other than the
changeable face plate feature, all
functions remain the same.
The changeable face plate version
is supplied with mylar sheets which
enable you to choose a different
design or orientation (horizontal or
vertical).
Decoder Amplifier Stand
If placing the unit vertically, attach
the provided stand to the base of the
Decoder Amplifier (see Diagram K).
Face Plate Installation
The face of the front panel may be
changed to reflect a different design
or orientation. Remove the clear
plastic cover and replace the
underlying mylar sheet with
another of your choice, (see
Diagram K). Replace the cover.
Horizontal Placement
Place the Decoder Amplifier
horizontally if there is adequate
desktop space, (see Diagram L).
Vertical Placement
If your desktop space is limited you
may choose to place the Decoder
Amplifier vertically, (see Diagram M).

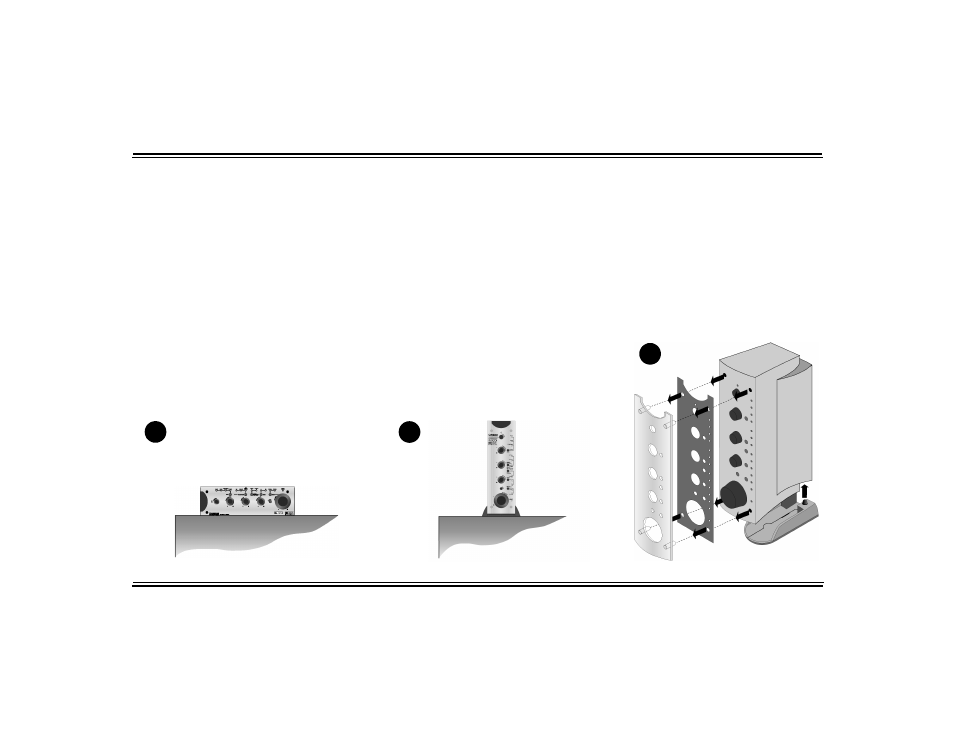

K
Stand
Mylar Sheet
Front Panel
M L
Decoder Amplifier Placement
