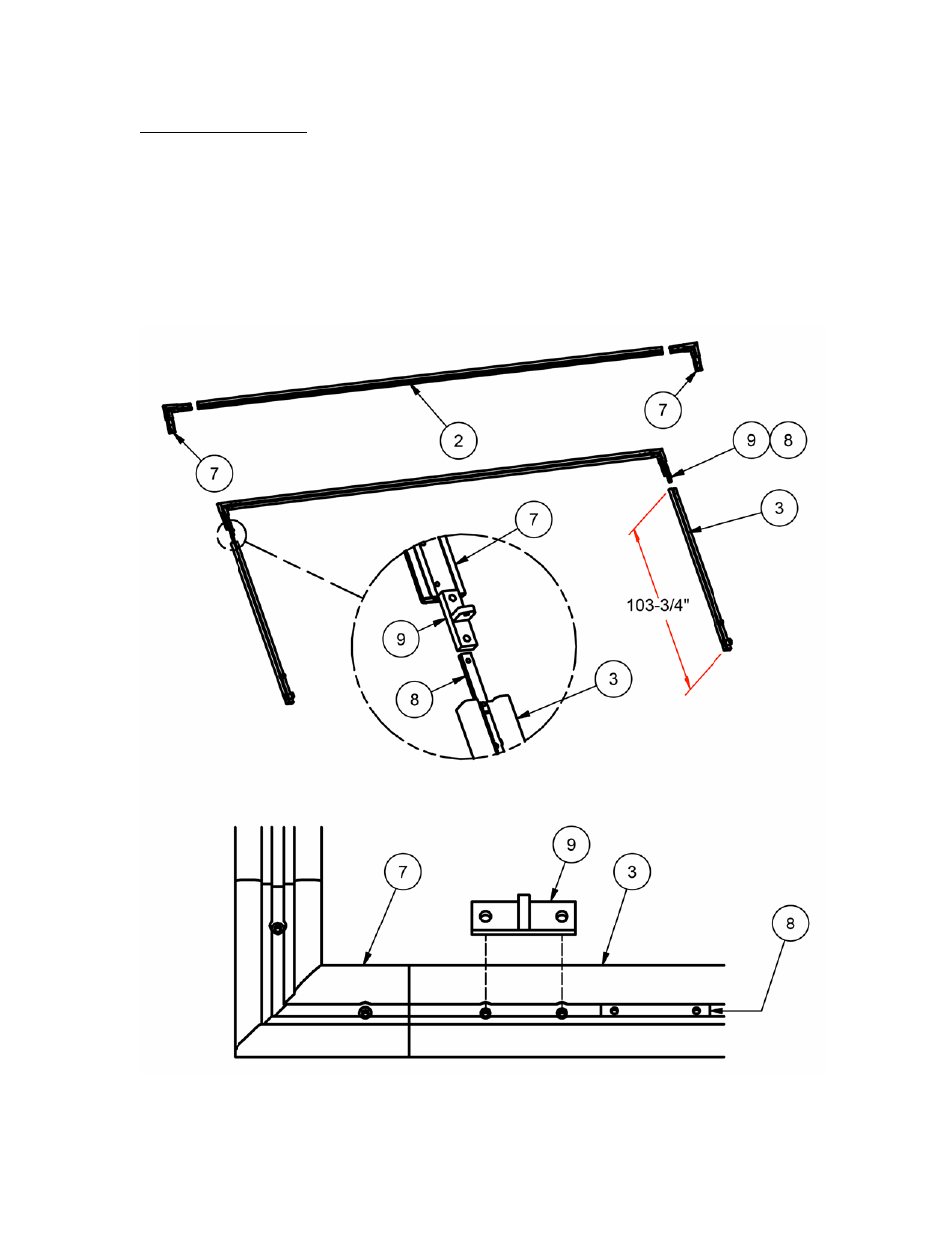

Base Goal Assembly:
1. Insert one lower corner fitting into each end of the 2” x 4” x 280” rear
crossbar.
2. Install hardware loosely, as shown.
3. Slide one 5” long x 3/8” thick nut bar (Item 8) into each base member.
(This will support the wheel assembly SGP-NWK to be installed later.)
4. Insert corner fittings completely into each base member.
5. Line up holes in the base with the backstay lock nut bar (Item 9).
6. Install hardware securing base members to rear crossbar.
7. Tighten hardware.
