10A 10B 10C
12A 12B 12C 12D

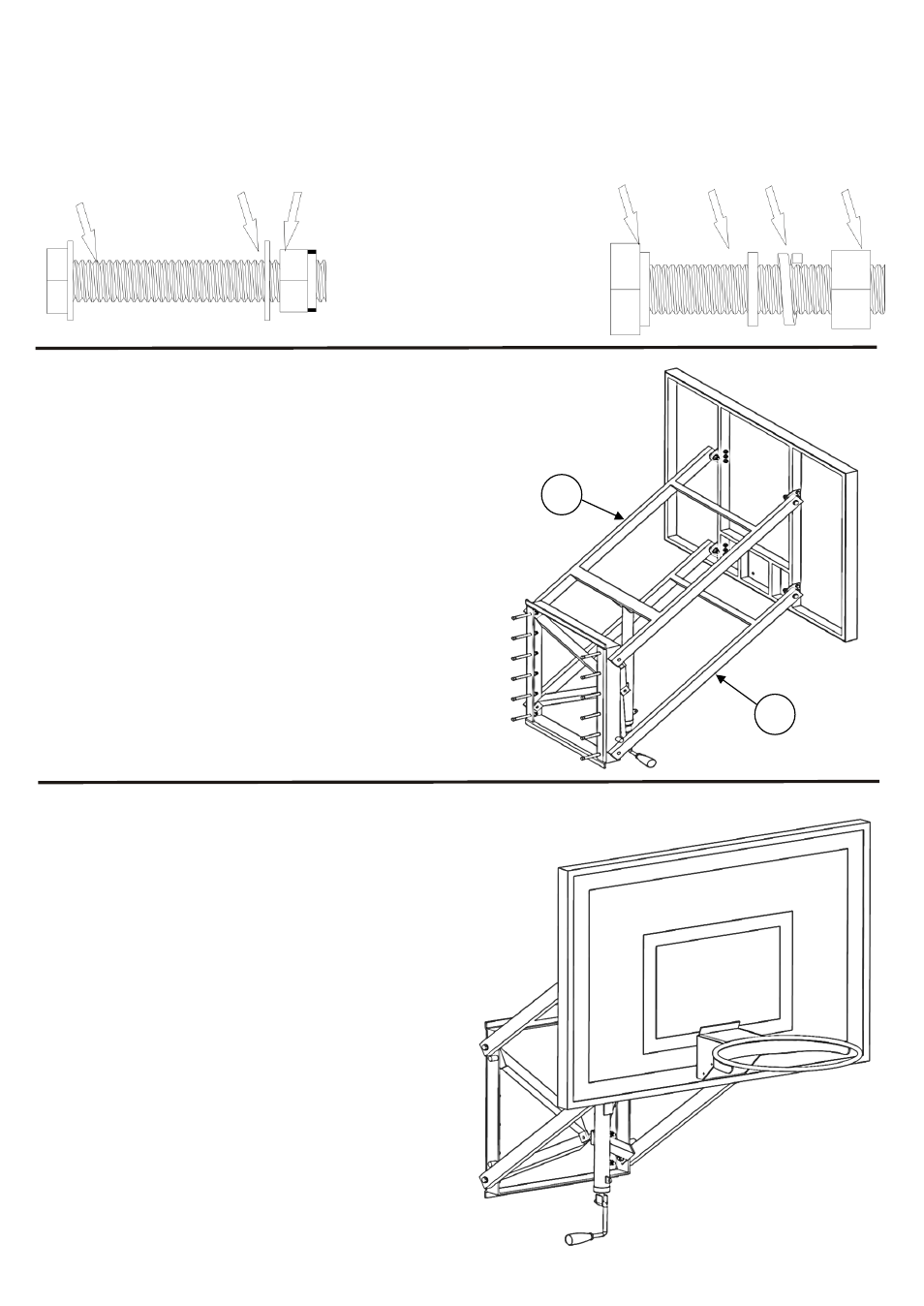

STEP 5
STEP 6
Note: Make sure extension arms are in lowered position.
A: Attach the backboard to the both upper and lower extension
frames (4 & 5), using four M12x75mm Bolts (10A), eight flat
washers (10B) and four locknuts (10C) (do not over tighten).
B: Tighten the fasteners so that bushings in the arms and
backboard mounting brackets touch, but do not over tighten to
allow for movement.
A: Attach the rim to backboard with four M10x50mm Bolts
(12A), eight flat washers (12B), four lock washers (12C) and
four nuts (12D)
Required For This Step:
Rev: A Page 4 of 5
5
4
